MAZAK SLANT TURN NEXUS 500
Have one to sell?
ConditionUsed
1 available

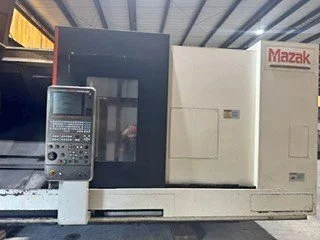

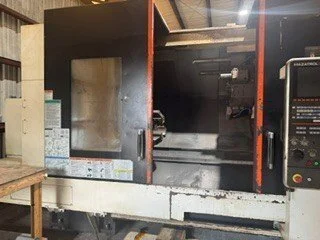

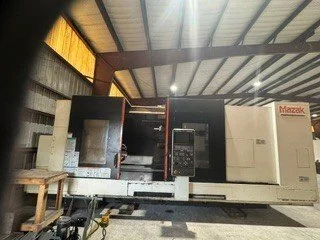

Used CNC lathe, perfect for precision machining. Features include a 40.94" swing, 80" machining length, 18" chuck, and 60 hp power. Equipped with a 12-position turret and programmable tailstock.
MAIN SPINDLE MOTOR AC
45KW(60HP)
HYDRAULIC PRESSURE INTERLOCK SPINDLE BORE
DIA.185MM(7.28")/16O0RPM UNIVERSAL REAR SPINDLE PREP FOR HYD OR REAR CHUCK

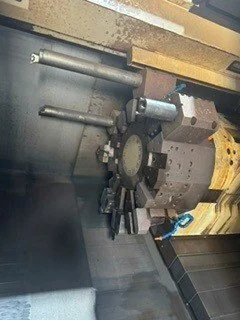

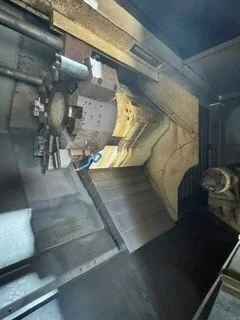

12 POSITION DRUM TURRET
PROGRAMMABLE TAILSTOCK
(BUILT-IN NO.6)
SMW SLU-5 STEADY REST
(CAP. 1.77" ~ 12.2")
Used CNC lathe, perfect for precision machining. Features include a 40.94" swing, 80" machining length, 18" chuck, and 60 hp power. Equipped with a 12-position turret and programmable tailstock.
Imperial
| Swing | 40.94" |
| Machining Length | 80" |
| # Axis | 2 |

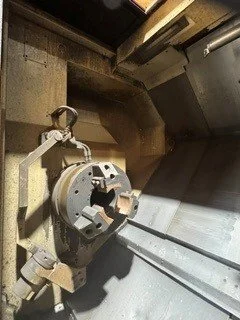

| Chuck Size | 18" |
| Bar Capacity | 7.24" |
| Power | 60 hp |
| Max RPM | 1,600 RPM |
| Turning Dia | 35.8" |
MAIN SPINDLE MOTOR AC
45KW(60HP)
HYDRAULIC PRESSURE INTERLOCK SPINDLE BORE
DIA.185MM(7.28")/16O0RPM UNIVERSAL REAR SPINDLE PREP FOR HYD OR REAR CHUCK
12 POSITION DRUM TURRET
PROGRAMMABLE TAILSTOCK
(BUILT-IN NO.6)
SMW SLU-5 STEADY REST
(CAP. 1.77" ~ 12.2")
