2020 HAAS TM-1P w/ Haas TRT100 5th Axis Table
Unavailable

2020 HAAS TM-1P w/ Haas TRT100 5th Axis Table

Vertical Machining Centers
Manufacturer:
HAAS
Model:
TM-1P
Year:
2020
Stock #:
X3X4473

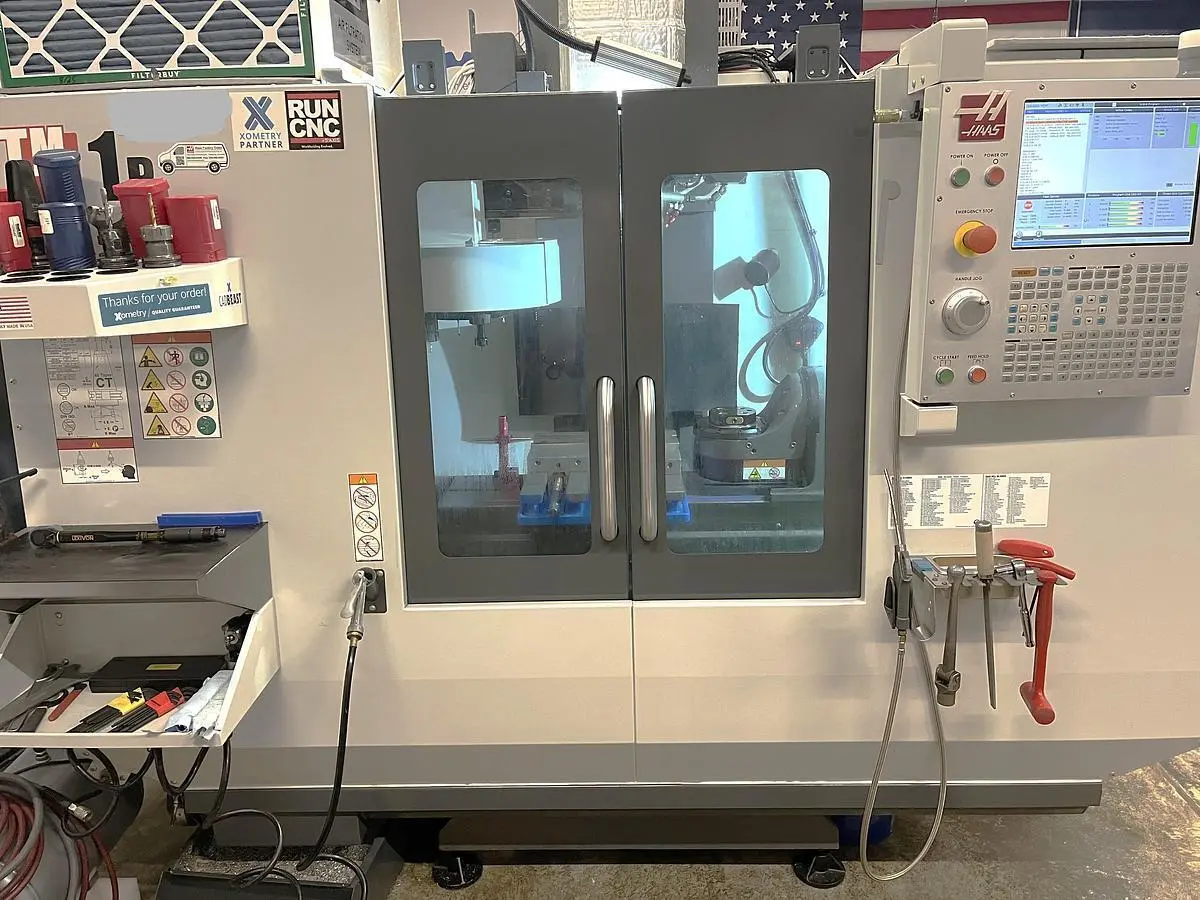

Used Vertical machining center with TRT100 5th axis table. Features include a 30"x12"x16" travel, CAT 40 spindle, 6,000 RPM, and 10-tool ATC. Equipped with Haas NextGen Control, WiFi, Renishaw probing.

Table size 47.8" x 10.5"
Maximum Table Load 1,000 lbs
X-Axis Travel 30"
Y-Axis Travel 12"
Z-Axis Travel 16"
Spindle Taper CAT 40
Spindle Speeds 6,000 RPM
Spindle Motor 7.5 HP
Distance Spindle Nose to Table Top 4" - 20"
Tool Magazine Capacity 10 Station ATC
Maximum Tool Diameter / Length / Weight 3.5" / NA / 12 lbs
Rapid Traverse Rates 400 IPM
Machine Dimensions LxWxH 100"x78"x101"
Machine Weight 4,500 lbs
Diameter of TRT100 Platter 3.94"
Maximum Weight on Platter 15 lbs.
Maximum Part Swing 8.4"
A Axis Tilt Travel 120 Degrees in .001 Increment
B Axis Rotary Travel 360 Degrees in .001 Increment
Rotary Dimensions 27" x 21" x 23"
Rotary Weight

Machine Control Haas NextGen Control
Haas TRT100 2 Axis Rotary/Tilt Table with Version P14 Connection
4th Axis Drive & Wiring
5th Axis Drive & Wiring
WIPS-R Intuitive Probing-Renishaw Tool & Part Probing
Programmable Coolant Nozzle
10 Station Umbrella Style Tool Changer
Haas WiFi Camera
Dynamic Work Offsets and Tool Center Point Control
High Speed Machining
Rigid Tapping
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Part Programming System
Coolant Pump Kit
Ethernet Interface
Haas Connect-Remote Monitoring
Haas Drop

This equipment is currently unavailable. Similar equipment available now is shown below.
