| Swing | 31.75" | 806.45 mm |
| Machining Length | 584.2 mm | 23" |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 18" | 457.2 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Control | CNC (HAAS) | CNC (HAAS) |
3400-rpm Spindle – Belt Drive
4000-rpm Live Tooling with 12-Station BMT65 Turret and C Axis
Automatic Tool Presetter
Auxiliary Coolant Filter
Chip Tray Filter Kit
Belt-Type Chip Conveyor, Lathe
Coolant Mist Condenser
55-Gallon Coolant Tank
High-Pressure Coolant, 300 psi (21 bar)
Standard Low-Volt Transformer
Standard Program Memory, 1 GB
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
HaasDrop
User-Definable Macros
Media Display M-Code; M130
Rigid Tapping
Spindle Orientation
Visual Part Programming System
WiFi Connection for the Haas Control

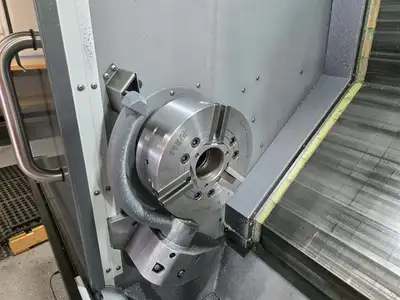

12" Hydraulic Chuck Upgrade
Programmable Hydraulic Tailstock
Haas Control Touch Screen
Inch Measurement Units
BAR FEEDER READY
2100 Running hours
This equipment is currently unavailable. Similar equipment available now is shown below.
