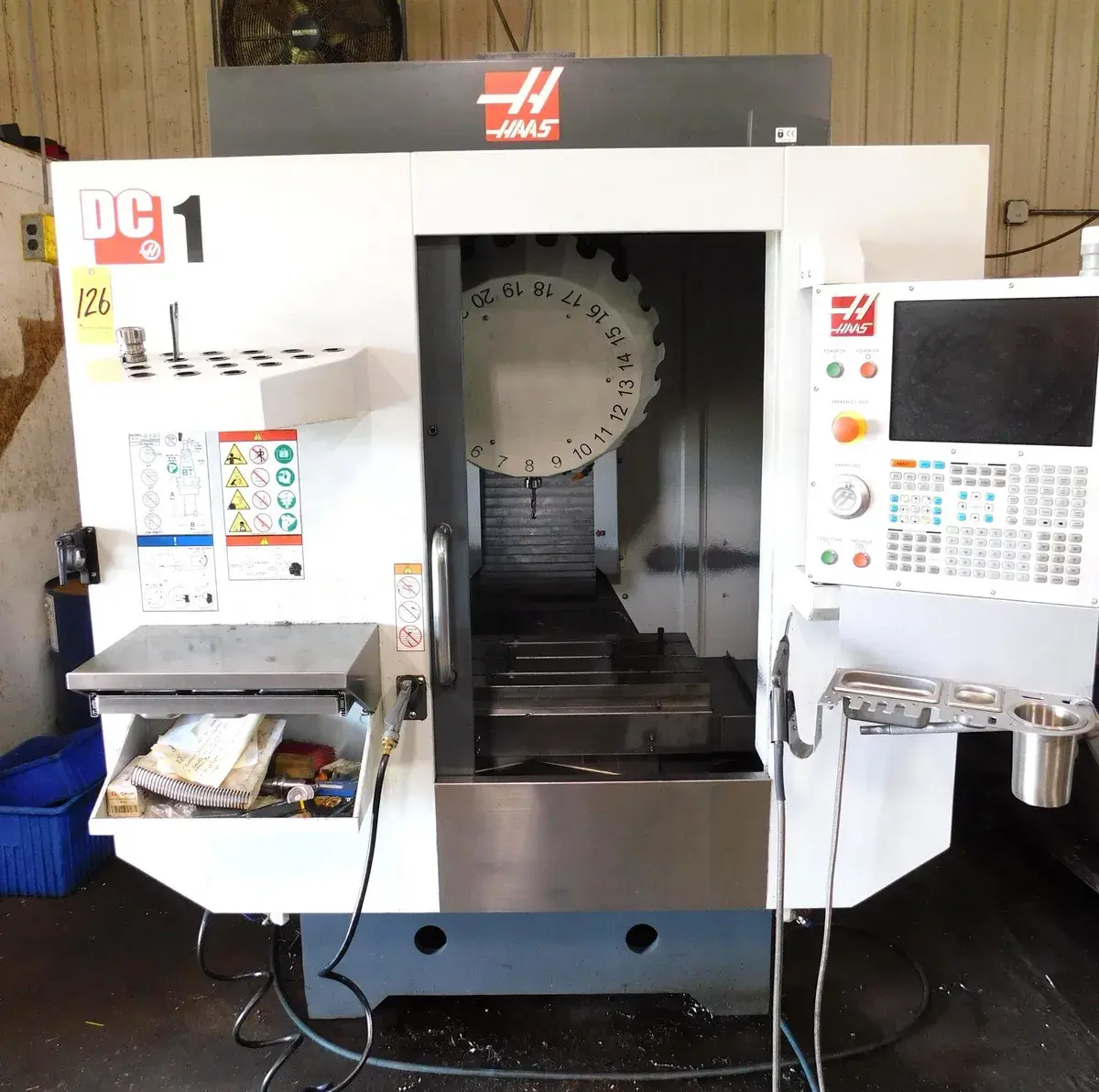

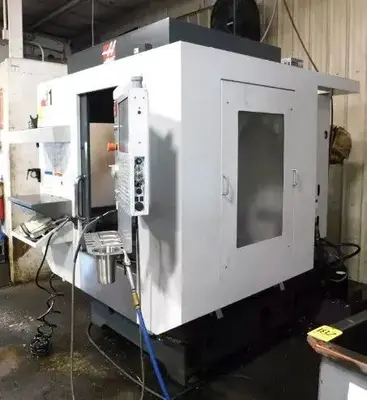

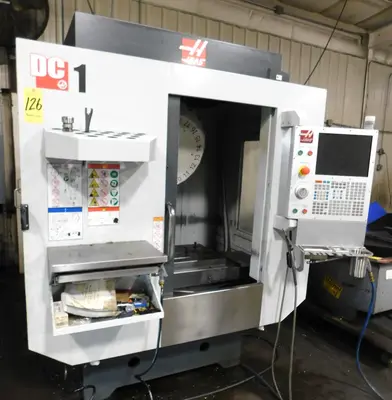

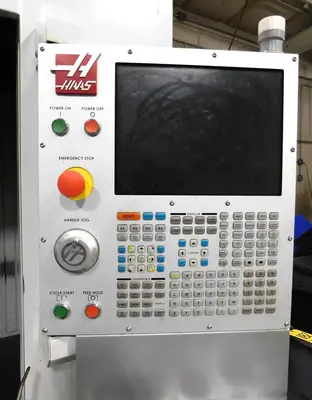

2024 HAAS DC-1

X Axis 23.60 in 600 mm
Y Axis 17.70 in 450 mm
Z Axis 13.00 in 330 mm
Spindle Nose to Table (~ max) 18.9 in 480 mm
Spindle Nose to Table (~ min) 5.9 in 150 mm
Spindle S.A.E METRIC
Max Rating 15.0 hp 11.2 kW
Max Speed 10000 rpm 10000 rpm
Max Torque 14.0 ft-lbf @ 2500 rpm 19.0 Nm @ 2500 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper BT30 BT30
Bearing Lubrication Grease Packed Grease Packed
Cooling Liquid Cooled Liquid Cooled

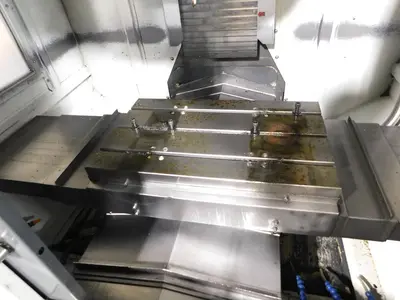

Table S.A.E METRIC
Length 27.6 in 700 mm
Width 16.5 in 420 mm
T-Slot Width 0.550 in 14 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 550 lb 250 kg
Feedrates S.A.E METRIC
Max Cutting 1200 ipm 30.5 m/min
Rapids on X 1890 ipm 48.0 m/min
Rapids on Y 1890 ipm 48.0 m/min
Rapids on Z 1890 ipm 48.0 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2054 lbf 9137 N
Max Thrust Y 2054 lbf 9137 N
Max Thrust Z 2054 lbf 9137 N
Tool Changer S.A.E METRIC
Type Turret Turret
Capacity 21 21
Max Tool Diameter (full)** 2.4 in 60 mm
Max Tool Diameter, Large (adjacent empty)** 3.1 in 80 mm
Max Tool Length (from gage line) 7.90 in 200 mm
Max Tool Weight 4.4 lb 2.0 kg
Tool-to-Tool (avg) 1.50 s 1.50 s
Chip-to-Chip (avg) 2.50 s 2.50 s
Tapping S.A.E METRIC
Max Tapping Speed 5000 rpm 5000 rpm
General S.A.E METRIC
Coolant Capacity 40 gal 151 L
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113.0 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 10000 rpm 10000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 15.0 hp 11.2 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 40 A 40 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 20 A 20 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 100.0 in x 79.0 in x 100.0 in 254 cm x 201 cm x 254 cm
Export Pallet 100.0 in x 79.0 in x 100.0 in 254 cm x 201 cm x 254 cm
Weight 7040 lb 3402.0 kg
