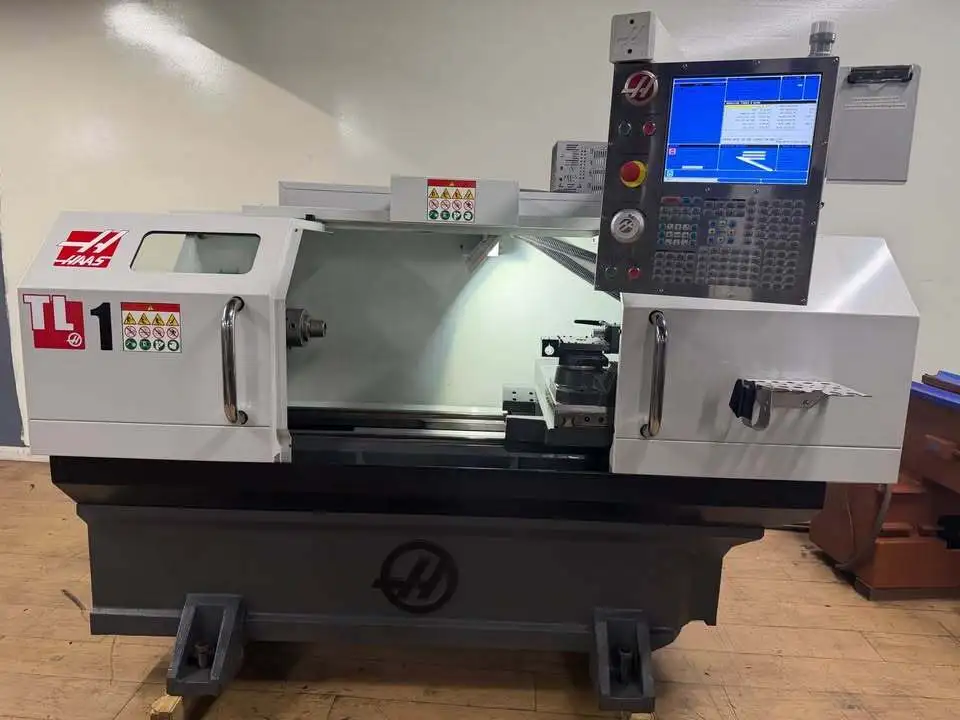

2017 HAAS TL-1
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe available. Features include 20" swing, 762 mm machining length, 8" chuck, 12 hp power, max 2,000 RPM, and 16" turning diameter.
Axis Travel: 8″
Z-Axis Travel: 30″
Max Cutting Diameter: 16″
Distance Between Centers: 30″
Spindle Bore: 2.3″
Rapid Rate X-Axis: 450 IPM
Rapid Rate Z-Axis: 450 IPM
Spindle Nose: A2-5
Spindle RPM: 2,000 RPM
Spindle Power: 10 HP
Power Required: 220V / 3 Phase
Dimensions:
Shipping Weight: : 4,300 LBS
Shipping Dimensions: : 84″L x 57″W x 79″H
Programmable 4 Position Auto Tool Indexing Turret
Manual Tailstock – MT4
5C Collet Chuck
Only 76 Cutting Hours
Used CNC Lathe available. Features include 20" swing, 762 mm machining length, 8" chuck, 12 hp power, max 2,000 RPM, and 16" turning diameter.
Axis Travel: 8″
Z-Axis Travel: 30″
Max Cutting Diameter: 16″
Distance Between Centers: 30″
Spindle Bore: 2.3″
Rapid Rate X-Axis: 450 IPM
Rapid Rate Z-Axis: 450 IPM
Spindle Nose: A2-5
Spindle RPM: 2,000 RPM
Spindle Power: 10 HP
Power Required: 220V / 3 Phase
Dimensions:
Shipping Weight: : 4,300 LBS
Shipping Dimensions: : 84″L x 57″W x 79″H
Programmable 4 Position Auto Tool Indexing Turret
Manual Tailstock – MT4
5C Collet Chuck
Only 76 Cutting Hours
