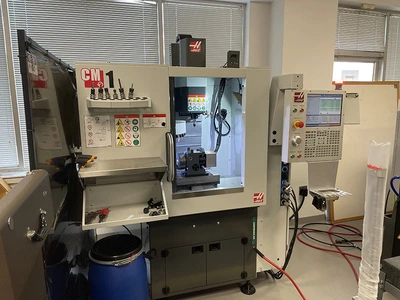

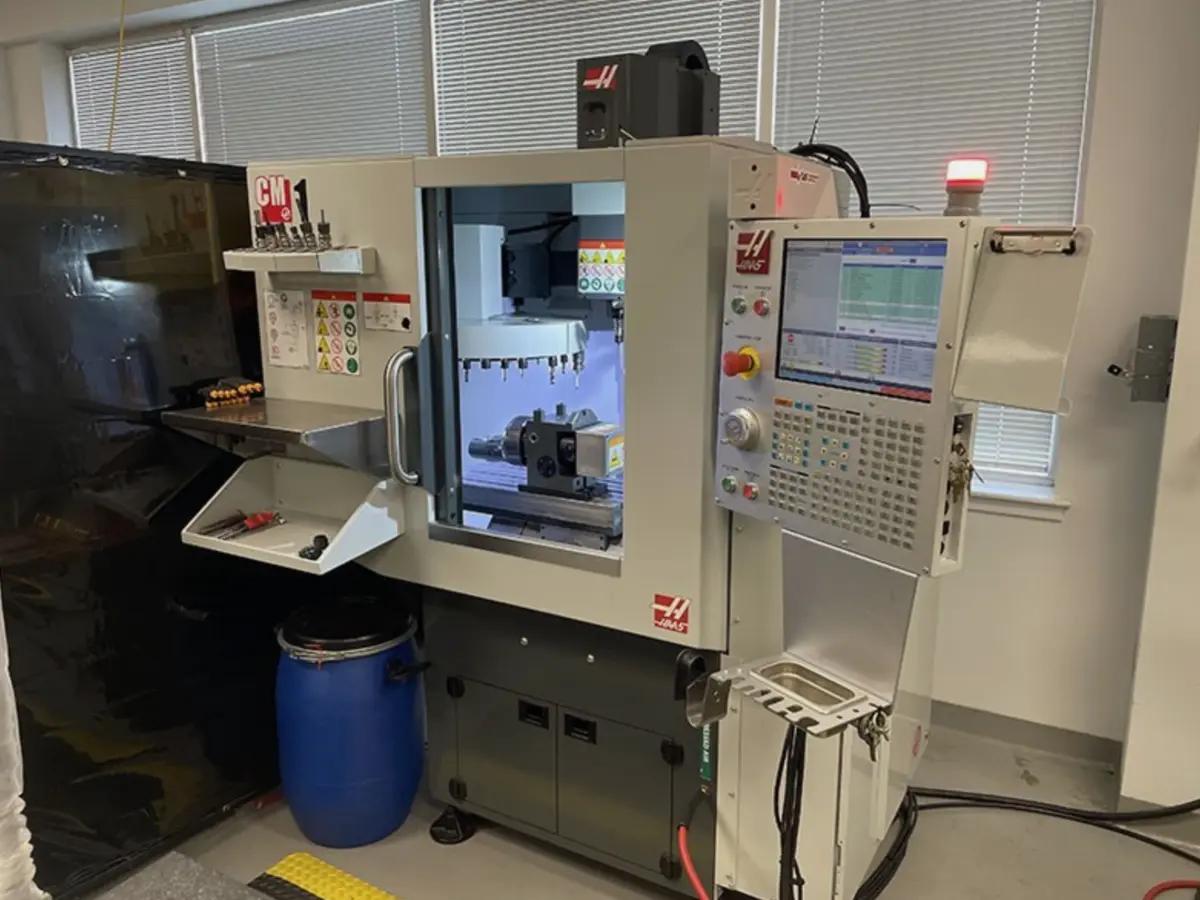

2020 HAAS CM-1 NextGen, TRT70 Tbl, 50,000 RPM
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center with 22.5" x 10" table, 50,000 RPM spindle, and 36 ATC. Features 5-axis NextGen control, wireless probing, dual-axis rotary table, and robust 5 HP motor.
TABLE DIMENSIONS ...................... 22.5" X 10"
TABLE LOAD CAPACITY ................... 150 LBS.
X - AXIS TRAVEL ....................... 12"
Y - AXIS TRAVEL ....................... 10"
Z - AXIS TRAVEL ....................... 14"
SPINDLE NOSE TO TABLE ................. 2.6" - 16.6"
SPINDLE SPEED ......................... 50,000 RPM
MAIN MOTOR ............................ 5 HP
SPINDLE TAPER ......................... ISO/20
RAPID TRAVERSE ........................ 757 IPM
MAX. CUTTING .......................... 500 IPM
TOOL CHANGER .......................... 36 ATC
MAX. TOOL DIAMETER ................... 2.3"
MAX. TOOL WEIGHT ...................... 5 LBS.
TOOL CHANGE TIME....................... 3.2 SECS
APPROXIMATE MACHINE WEIGHT ............ 2500 lbs.

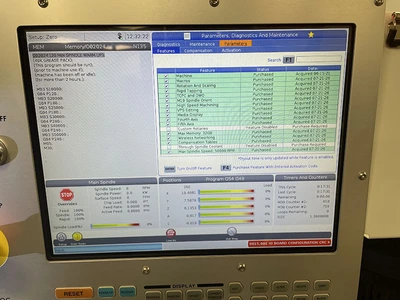

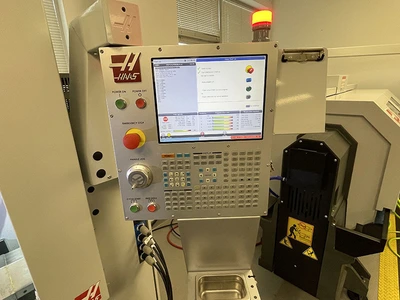

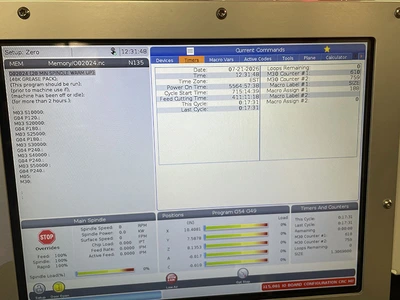

HAAS NEXTGEN 5-AXIS CONTROL:
HIGH SPEED MACHINING, ROTATION & SCALING, MACROS,
RIGID TAPPING, DYNAMIC WORK OFFSET & TOOL CENTER POINT
MEDIA DISPLAY M-CODE, VISUAL PART PROG. (VPS EDITING)
ETHERNET, USB PORT, 32GB MEMORY, WIFI CAMERA
HAAS CONNECT:REMOTE MONITORING, WIFI CONNECTION
4TH & 5TH AXIS DRIVES & WIRING

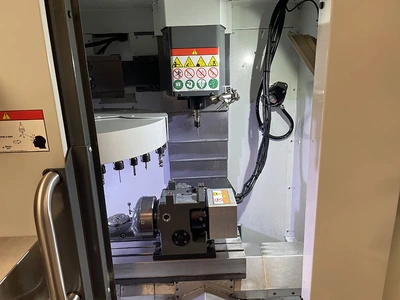

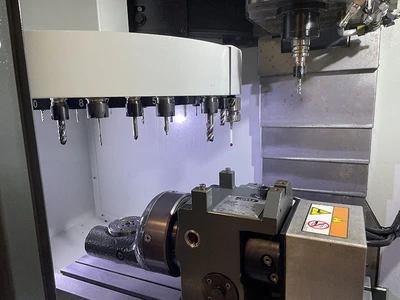

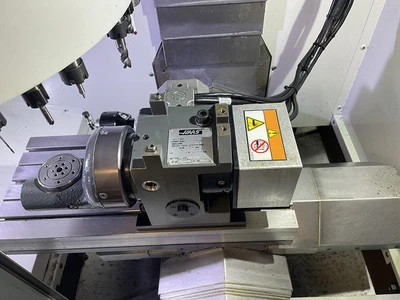

HAAS TRT70 DUAL AXIS TILTING ROTARY TABLE

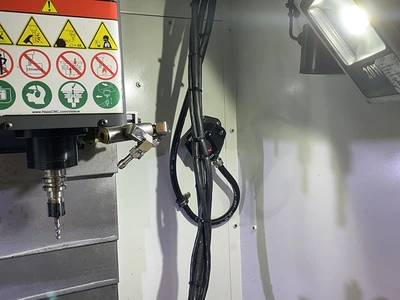

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

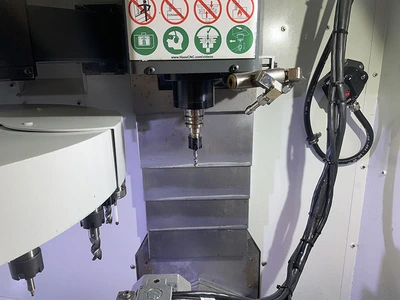

50,000 RPM SPINDLE (ISO 20 TAPER)
36 STATION AUTOMATIC TOOL CHANGER
WINDOW AIR BLAST

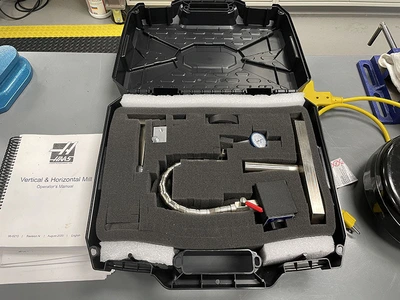

ASSORTMENT OF TOOLHOLDERS & TOOLING
