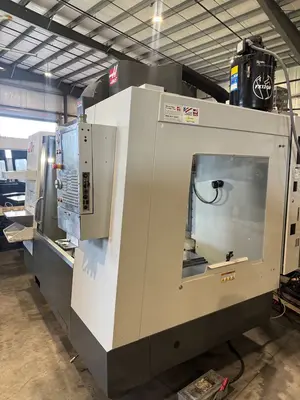

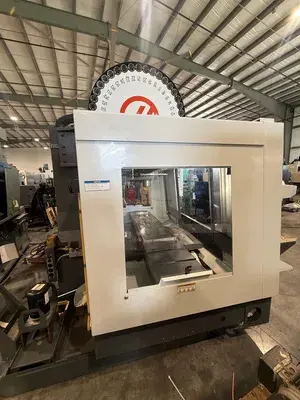

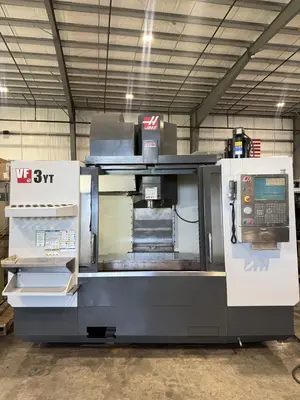

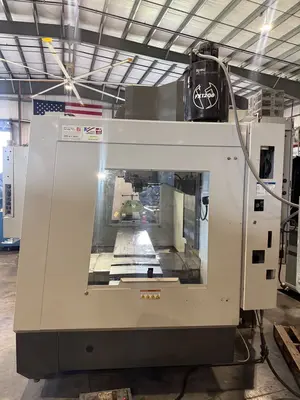

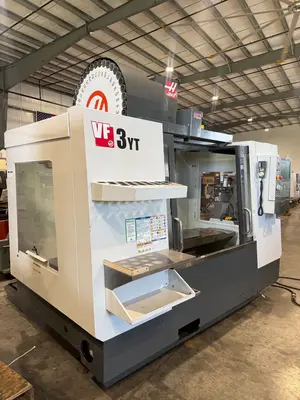

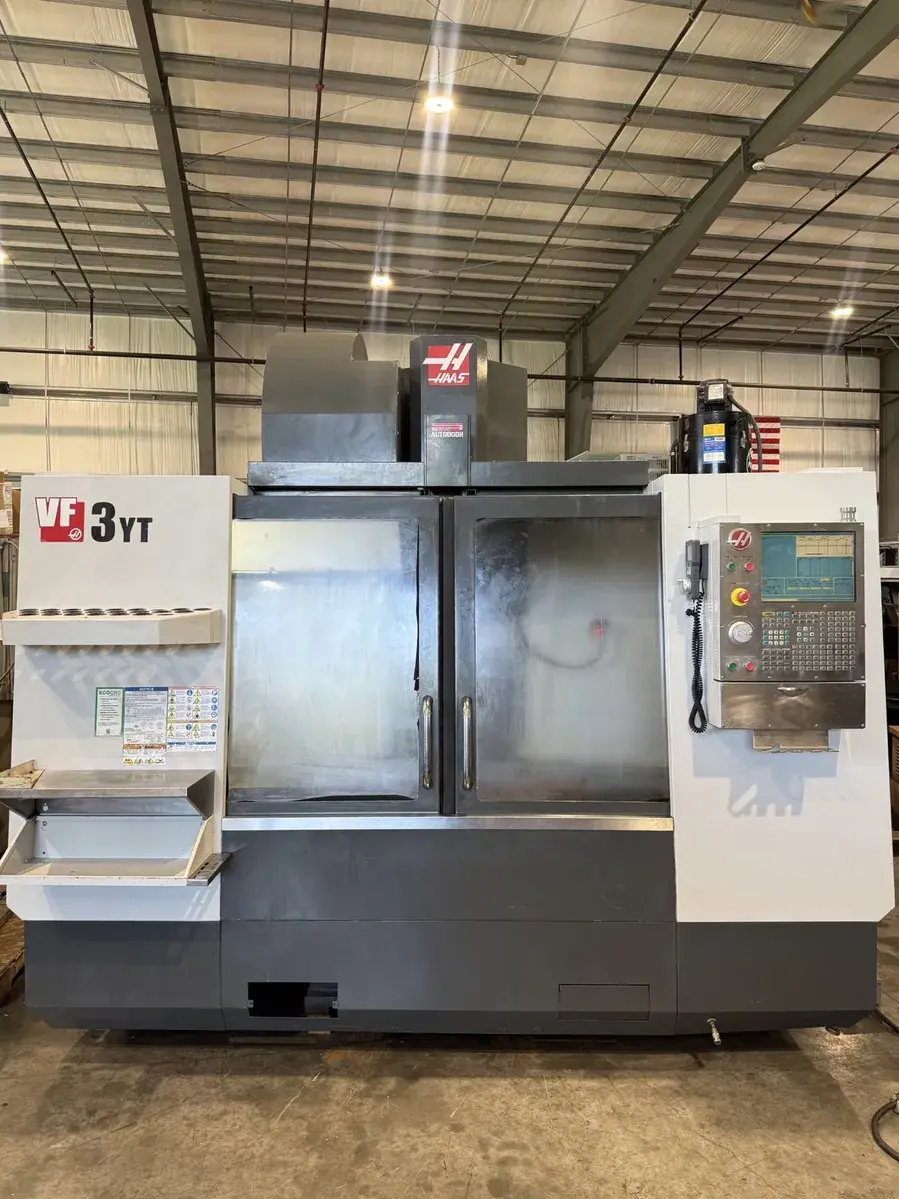

2011 HAAS VF-3YT 4th & 5th wired
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center offers a 24"x54" table, 10,000 RPM spindle, and 30-tool capacity. Features include HAAS CNC control, brushless servo motors, auto door, and advanced control options. Wired for 360-480V/3-phase operation.

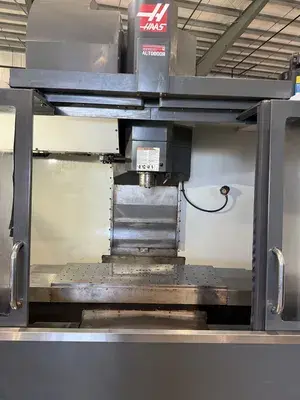

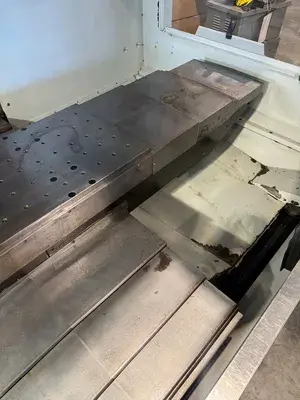

Table working surface- 24" x 54
Maximum weight on table- 4,000 Lbs.
Table travel, X-axis (longitudinal)- 40”
Table travel, Y-axis (cross)- 26”
Vertical column travel (Z-axis)- 25”
Minimum/Maximum distance, spindle nose to table- 7.9"/32.9"
Spindle taper- CAT-40
Spindle speeds- 0 to 10,000 R.P.M.
Rapid traverse rate, all axes- 710 I.P.M.
Cutting feed rate, all axes- up to 500 I.P.M.
Maximum tool diameter- 4”
Maximum tool weight- 30 Lbs.

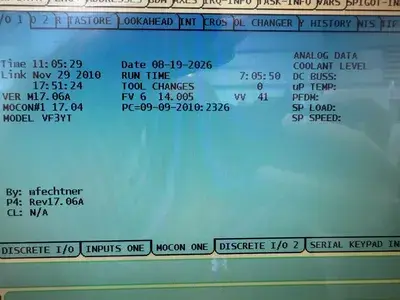

HAAS four-axis CNC control with manual
Pulse generator
USB drive (on pendant),
RS-232 port
Control Options- Rigid tapping, Rotation & Scaling, DNC, M19 Spindle Orient, Macros, Quick code, Pre-Orient Tap, Advanced tool management, Expanded memory
Renishaw Probing & (Less Probe)
All cast iron construction
Brushless servo amplifiers and servo motors on all axes
Prewired for the 4th axis 5th Axis
Side mount tool changer 30 tool capacity

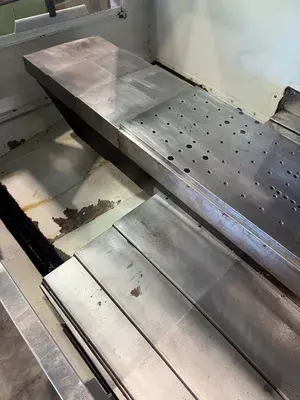

Telescopic way covers
Auto Door option
Automatic lubrication system

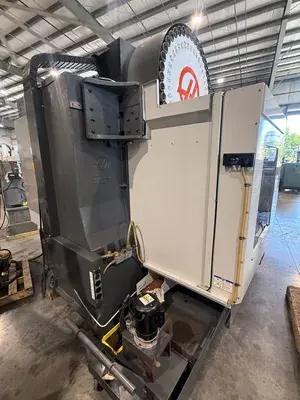

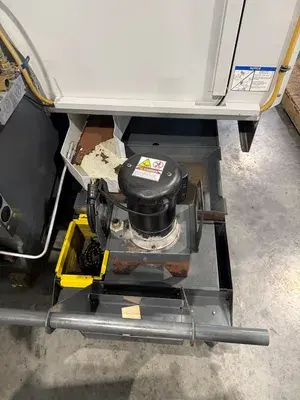

External coolant pump and tank
30 H.P. Vector spindle drive
Machine is wired for 360-480 volt operation / 3 phase / 60 H.Z.
Machine weight- 16,500 Lbs.
Machine dimensions- 124” L x 106” W x 109’’ H
