Maximum Turning Diameter: 24.80″
Distance Between Spindles: 35.43″
Spindle Nose: A2-8
Spindle Speed: 45 – 3,800 RPM

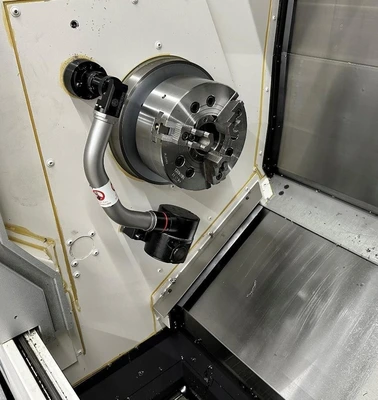

Chuck Size: 10″ 3-Jaw
Bar Capacity: 2.75″
Spindle Motor: 20 HP Integral
Tool Changer Capacity: 40 Tools
Tool Taper: Capto C6
X-Axis Travel: 22.83″
Y-Axis Travel: 6.30″
Z-Axis Travel: 36.81″
C-Axis Travel: 360°
B-Axis Positioning: 0.001°
Milling Spindle Taper: Capto C6
Milling Spindle Speed: 50 – 10,000 RPM
Milling Spindle Motor: 15/10 HP PREX
Maximum Tool Length: 11.81″
Maximum Tool Diameter: 3.54″
Maximum Tool Diameter With No Adjacent Tool: 5.12″
Maximum Tool Weight: 17.6 Lbs.
Rapid Traverse X And Z: 1,575 IPM
Rapid Traverse Y: 1,023 IPM
Machine Dimensions: 171″ X 88″ X 102.4″ H
Machine Weight: 22,660 Lbs.

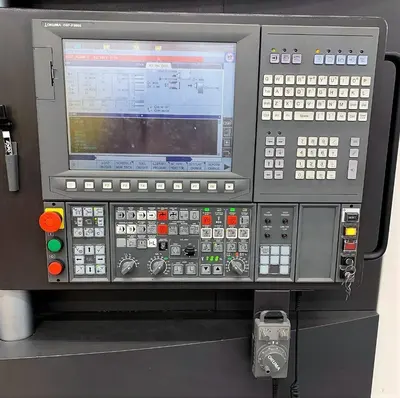

Okuma OSP-P300S CNC Control
Automatic Servo-Driven Tool Setter
High-Pressure Coolant Preparation
Universal Bar Feeder Interface

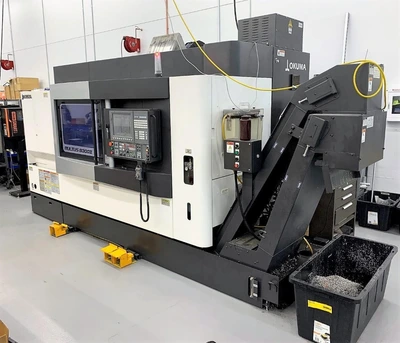

Chip Conveyor
Rego-Fix Tool Change Station

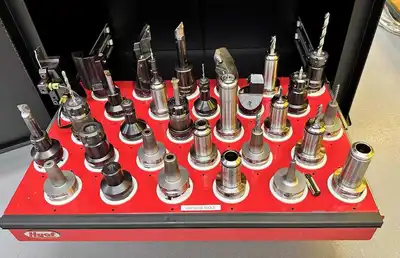

Assorted Capto Tool Holders Included
This equipment is currently unavailable. Similar equipment available now is shown below.
