2023 KENT CSM‑1640NC
Have one to sell?
ConditionUsed
1 available

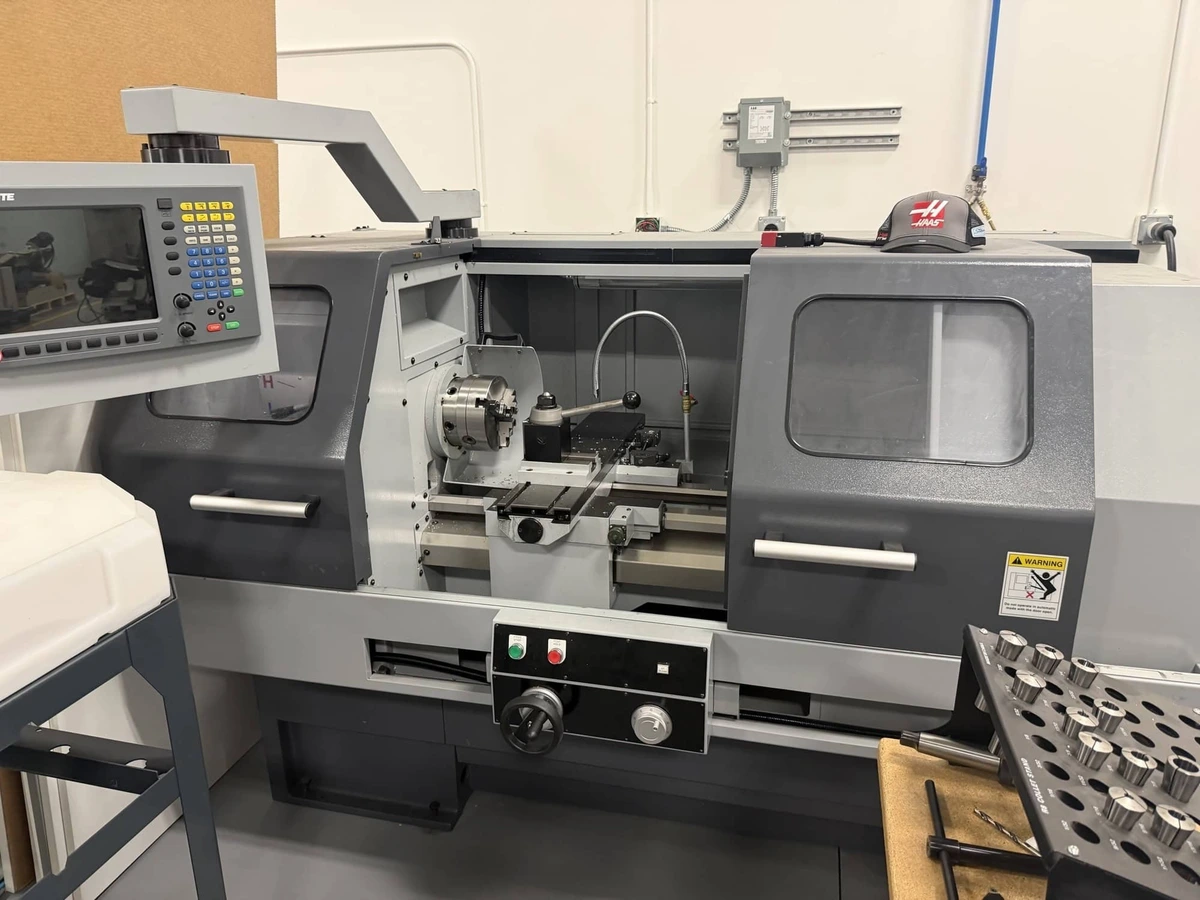

Used CNC Lathe for sale. Features 16" swing over bed, 40" between centers, and 2.25" spindle bore. Equipped with Acu-Rite Control, tailstock, auto lube, and coolant system. Used condition. Ideal for precision machining. 3,740 lbs.
Swing Over Bed: 16″
Swing Over Cross Slide: 8.46″
Distance Between Centers: 40″
Width of Bed: 11″
Spindle Nose: Camlock D1‑6
Spindle Bore: 2.25″
Spindle Taper: MT #6
Spindle Speeds: 50–2000 RPM
Longitudinal Travel (Z‑Axis): 33″
Cross Slide Travel (X‑Axis): 8″
Ballscrews: Z‑Axis 1.259″ dia, X‑Axis 0.98″ dia
Rapid Traverse Speed: 236″/min (X & Z)
Tailstock Quill Diameter: 2.12″
Tailstock Quill Travel: 5.1″
Tailstock Taper: MT #4
Spindle Motor: 7.5 HP (Fagor Servo option)
Servo Motors: Z‑Axis 1.2 HP, X‑Axis 1.7 HP
Net Weight: 3,740 lbs
Packing Dimensions: 91″ × 69″ × 73″

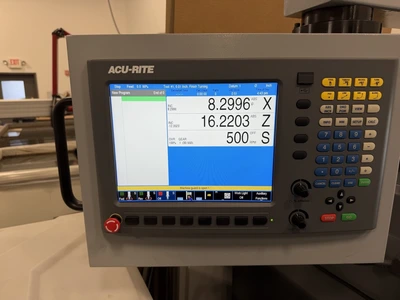

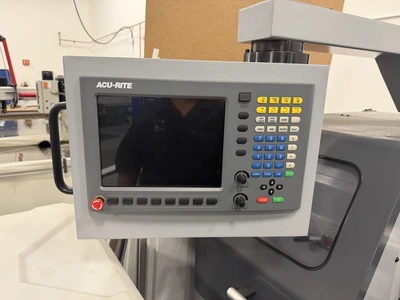

Acu-Rite Control

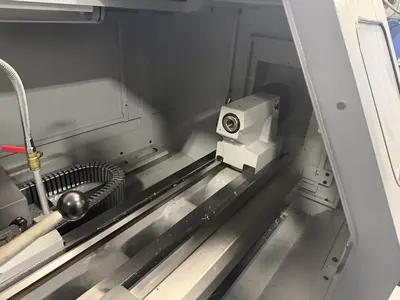

Tailstock
Auto Lubrication Unit
Flood Coolant System

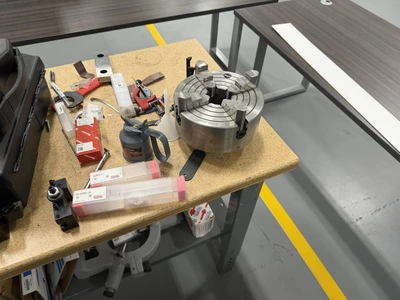

Chuck
