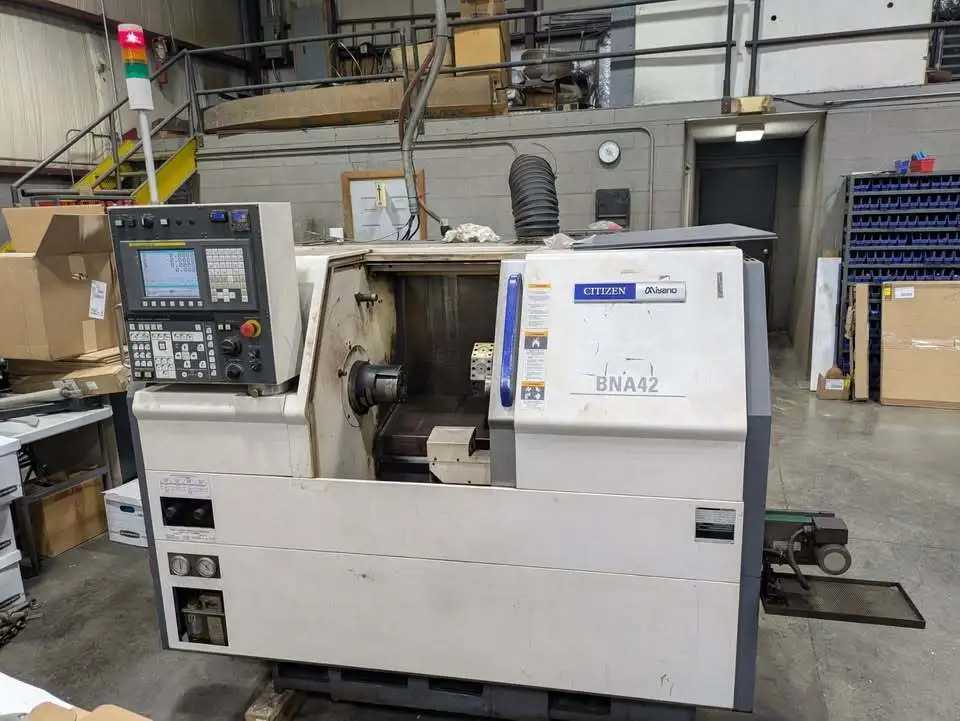

2018 CITIZEN MIYANO BNA-42S2
Have one to sell?
ConditionUsed
1 available
Used multi-axis CNC lathe. Features 5" chuck, 5,000 RPM spindle speed, 5.53 HP motor, dual spindles, and equipped with an 8-position turret and live tooling. Includes Patriot 551 Bar Feeder for enhanced functionality.
Chuck Size: 5"
Spindle Speed: 5,000 RPM
Spindle Motor: 5.53 HP
maximum bar diameter SP1: 42mm
maximum bar diameter SP2: 34mm
standard machining length: 100mm
number of spindles: 2
draw tube diameter SP1: 43mm
draw tube diameter SP2: 30mm
rapid feed rate X1 axis: 20m/min
rapid feed rate Z1 axis: 20m/min
rapid feed rate B axis: 20m/min
live tool motor: 2.8/1.0kW (16 Nm)
Turret has 8x positions, each one with live tooling
Includes Patriot 551 Bar Feeder
