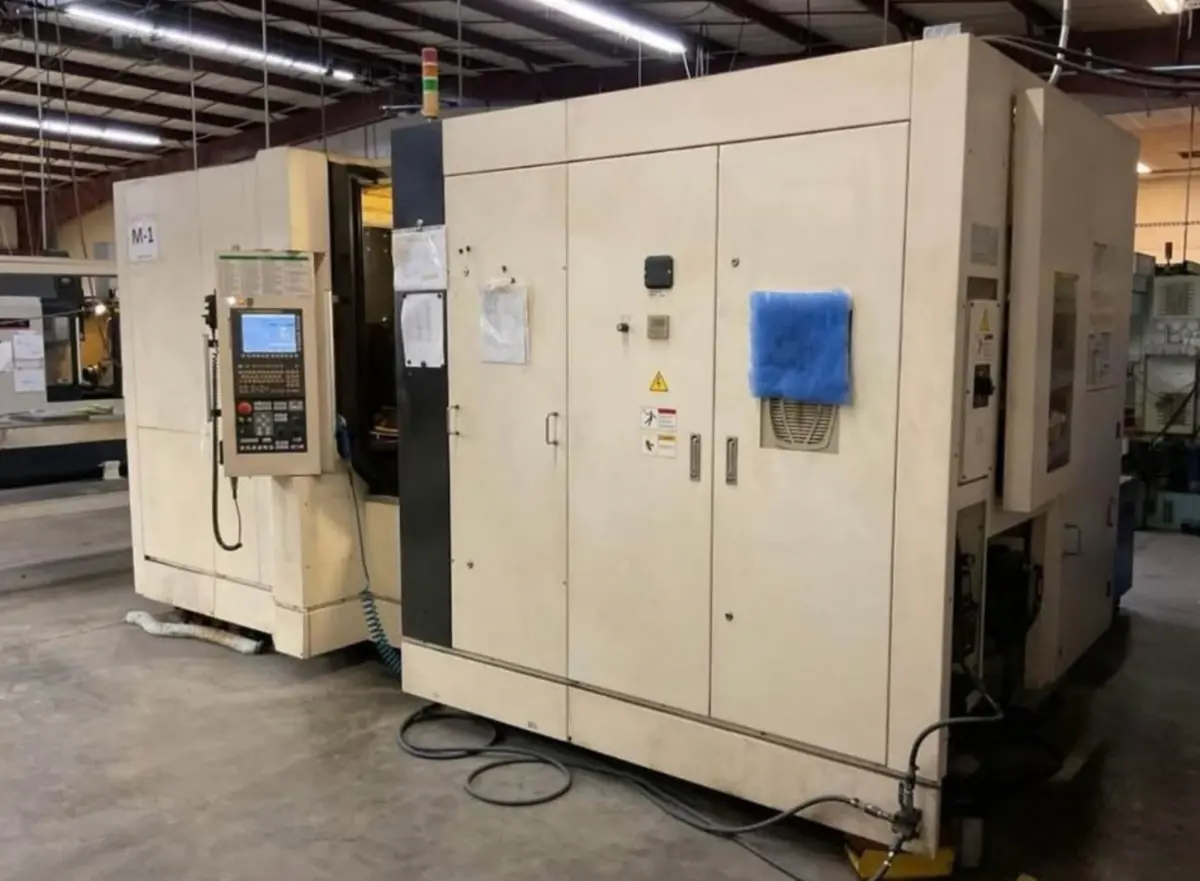

2012 AKIRA SEIKI AVEREX HS-450I

TRAVEL:
X-Y-Z AXIS 25.2 INCH / 24.0 INCH / 26.8 INCH
SPINDLE CENTER TO PALLET SURFACE 2.0 INCH - 26.0 INCH
SPINDLE NOSE TO PALLET CENTER 3.9 INCH - 30.7 INCH
PALLET TOP HEIGHT (FROM THE FLOOR) 43.3 INCH
TABLE:
TABLE SIZE (2 PALLETS) 15.7 INCH X 15.7 INCH
WORKPIECE MAX. SIZE Ø29.5 INCH X 39.4 INCH
MAX. PAYLOAD 1,100 LBS
CONFIGURATION M16X25LP - 3.1 INCH
MIN. INDEXING DEGREE 0.001
INDEXING SPEED 1.1 SEC / 90 DEG.
PALLET CLAMPING SYSTEM MECHANICAL LOCK
PALLET CLAMPING FORCE 2,203 LBS X 4 CONES
B-AXIS CLAMPING TORQUE 2,582 LB-FT
SPINDLE:
SPINDLE SPEED 40 - 15,000 RPM
SPINDLE RATED TORQUE 147 LB-FT (2 MIN)
110 LB-FT (15 MIN)
SPINDLE ACCELERATION/DECELERATION 3.2 SEC. (0-15K RPM)
SPINDLE TAPER NO. 40
THROUGH SPINDLE COOLANT 285 PSI
FEED:
RAPID FEED (X/Y/Z) 2,362 IPM
CUTTING FEED (X/Y/Z) 787.4 IPM
TABLE ROTATING SPEED 33.3 RPM
GUIDE WAYS (X/Y/Z) ROLLER WAYS
ACCELERATION (X/Y/Z) 1+G
BALLSCREWS SIZE Ø1.5747 INCH
TYPE OF TOOL SHANK CAT 40
TYPE OF PULL-STUD CAT 40 JIS (OPTIONAL)
NUMBER OF TOOLS 80
MAX. TOOL DIAMETER 3.7 INCH / 7.2 INCH
ADJACENT POTS FULL/EMPTY
MAX. TOOL LENGTH 15.7 INCH
MAX. TOOL WEIGHT 17.6 LB
TOOL SELECTION SYSTEM RANDOM/FIXED
APC:
NUMBER OF PALLETS 2, OPTIONAL 6
PALLET CHANGE SYSTEM ROTATION
APC EXCHANGE TIME 7 SEC.
MOTOR:
SPINDLE MOTOR 30/20 HP
FEED AXES MOTORS (X/Y/Z/B) 6.0/6.0/6.0/3.6 HP
LUBRICATION PUMP MOTOR 0.024 HP
SPINDLE COOLANT PUMP 1.7 HP
CHIPS FLUSH (BASE) COOLANT PUMP 2.1 HP
THROUGH SPINDLE COOLANT PUMP 1.0 HP
OVERHEAD SHOWER FLUSH COOLANT PUMP 0.8 HP
HYDRAULIC PUMP 3.0 HP
SUPPLY:
ELECTRIC VOLTAGE 200-230 VOLT
ELECTRIC POWER SUPPLY 50/55 KVA
AIR PRESSURE 72.5 PSI
AIR VOLUME 132 GAL/MIN
TANK:
HYDRAULIC UNIT TANK 15.9 GAL
COOLANT TANK 145.3 GAL
LUBRICATION UNIT TANK 0.47 GAL
MACHINE DIMENSIONS:
190.6 INCH X 104.9 INCH X 101.2 INCH H
MACHINE WEIGHT (APPROX):
25,619 LBS.
