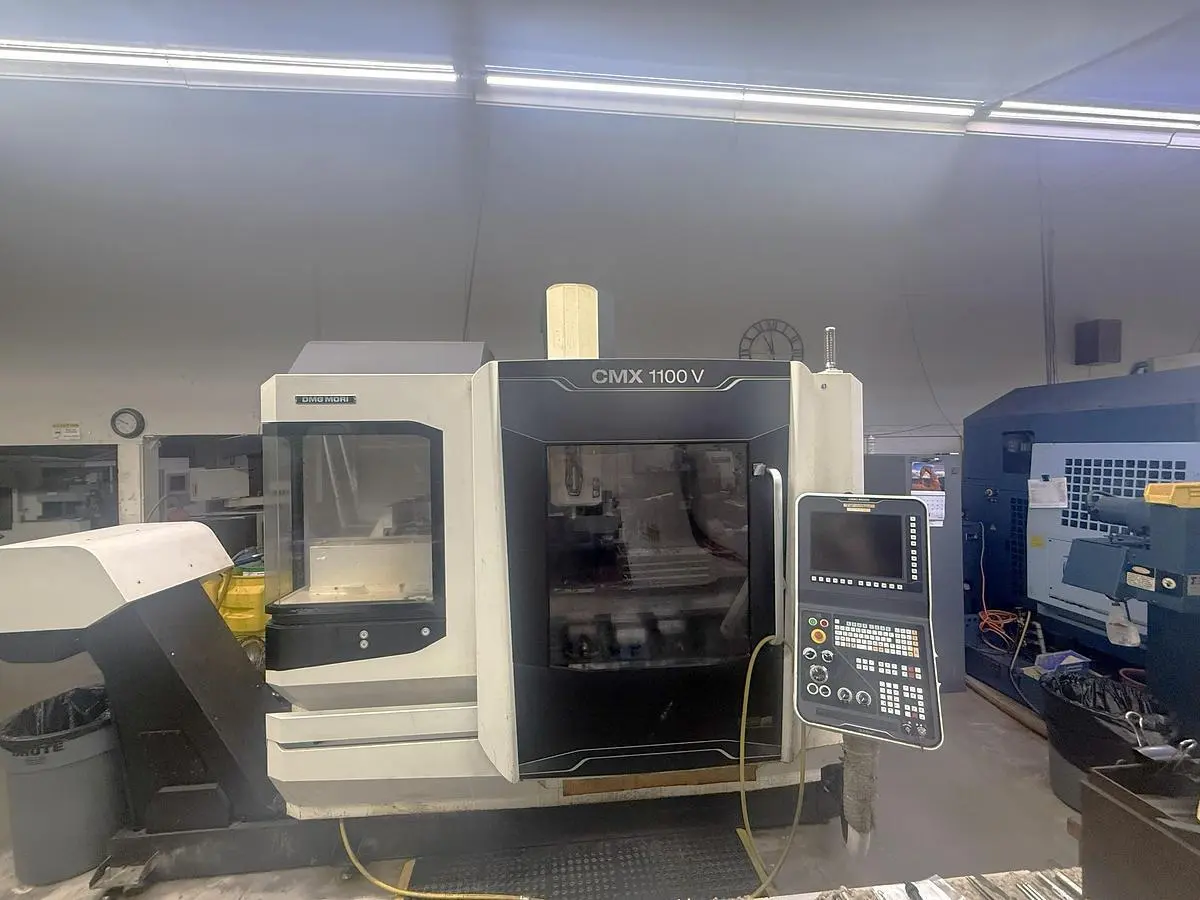

2017 DMG MORI CMX1100V
Have one to sell?
ConditionUsed
1 available
Used vertical machining center features 55.1" x 22" table, CAT #40 12,000 RPM spindle, 20 HP inline motor, and 30 tool changer. Includes 4th axis rotary table, chip conveyor, and coolant system.
Table Size 55.1" x 22"
Maximum Table Load 2,200 lbs.
X-Axis Travel 43.3"
Y-Axis Travel 22.06"
Z-Axis Travel 20.1"
Spindle Taper CAT #40
Spindle Speeds 12,000 RPM
Spindle Motor 20 HP - inline design
Number of Tool Positions 30 Station Tool Changer - Side Mounted
Rapid Traverse Rates X, Y / Z 1418 IPM / 1182 IPM
Machine Dimensions 126" x 108" x 116"
Machine Weight 12,100 lbs.

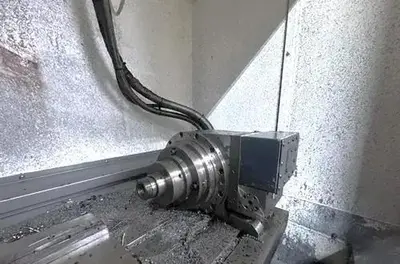

DMG Model DDRT-200X 4th Axis Rotary Table
30 Station Side Mounted Tool Changer
12,000 RPM Spindle
Chip Conveyor
Inline 20 HP Spindle Design
Rigid Tapping
Coolant System with Tank & Pump
USB Port Interface
RS-232 Port Interface
