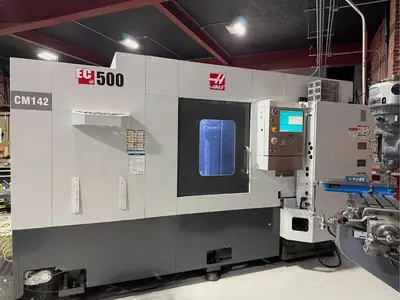

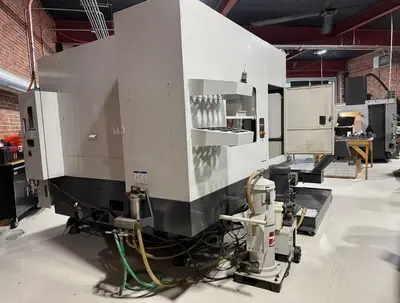

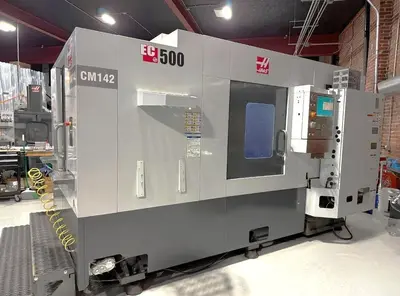

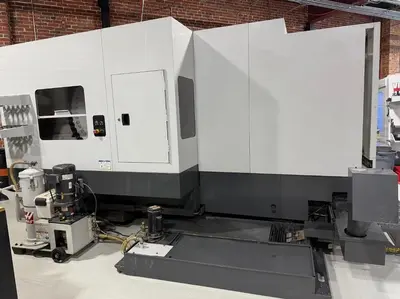

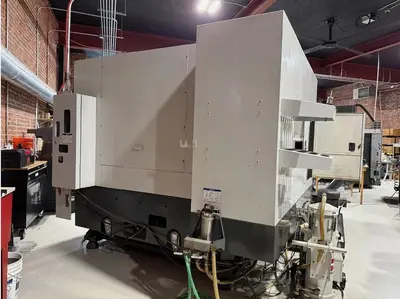

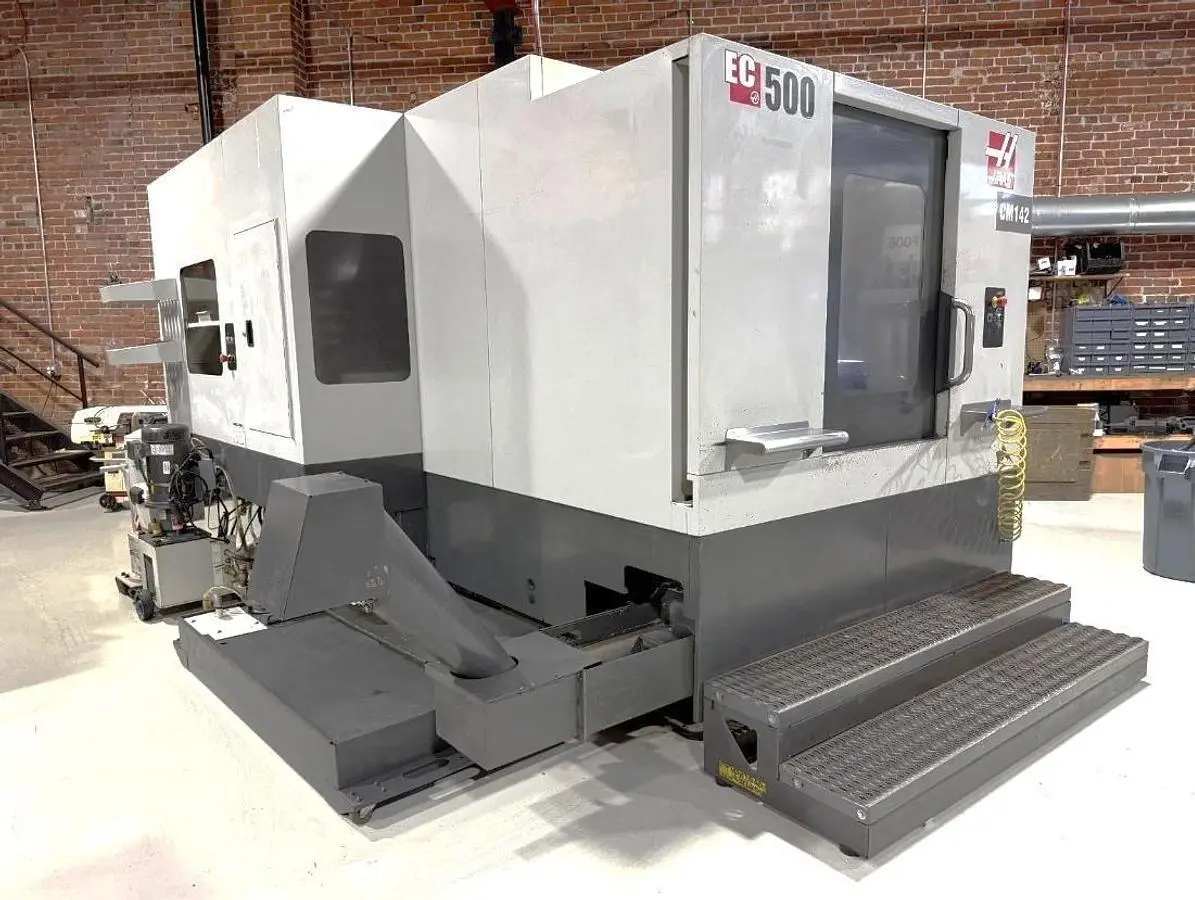

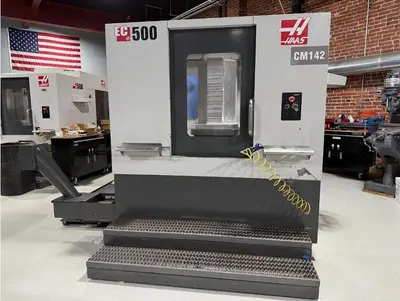

2012 HAAS EC-500
Have one to sell?
ConditionUsed
1 available
Used horizontal machining center features a 20"x20" 2-pallet changer, 12,000 RPM spindle, 40-station tool changer, and WIPS probing. It offers X/Y/Z travels of 32"/20"/28" with advanced tool management in a 28,000 lbs frame.

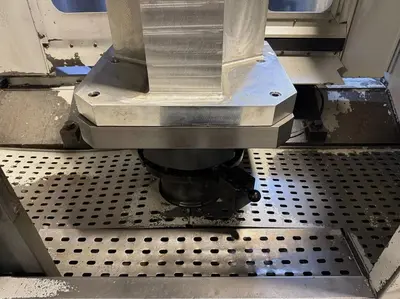

Table Size 20"x20" 2-Pallet Changer
Maximum Table Load 1,000 lbs
Pallet Indexing 1 Degree Pallet Index
X-Axis Travel 32"
Y-Axis Travel 20"
Z-Axis Travel 28"
Spindle Taper CAT 40
Spindle Speed 12,000 RPM
Spindle Motor 30 HP Vector Direct Drive
Tool Magazine Capacity 40 Station Side Mounted ATC
Maximum Tool Diameter / Length / Weight 6" / 12" / 12 lbs
Spindle Nose to Pallet Center 0" - 28"
Rapid Traverse Rates 1,000 IPM
Cutting Feedrates 500 IPM
Machine Dimensions LxWxH 130"x164"x104"
Machine Weight 28,000 lbs

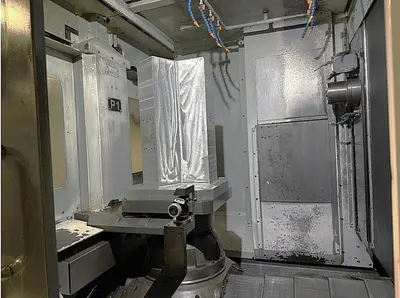

2 Pallet Factory Pallet Changer System
1 Degree Pallet Indexing of 4th Axis Table

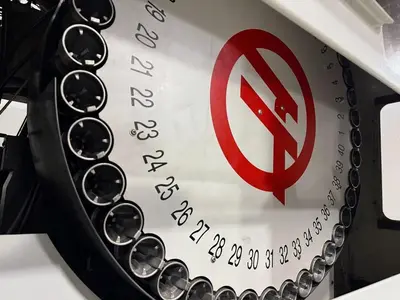

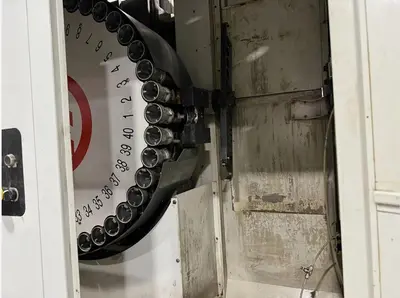

40 Station Tool Changer
12,000 RPM Spindle

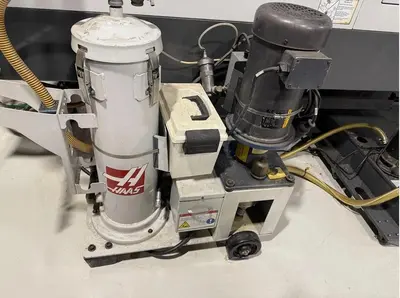

1,000 PSI Coolant Through Spindle

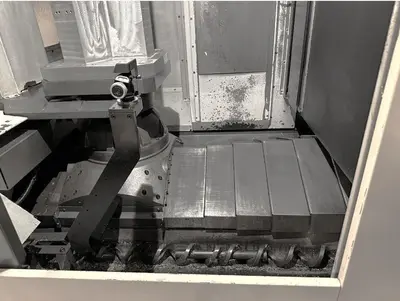

WIPS Wireless Probing with both Tool & Part Probes
Spindle Orientation
Haas Visual Quick Code Programming System
Coordinate Rotation & Scaling
User Definable Macros
Auger Style Chip Conveyor
Advanced Tool Management
Rigid Tapping
Inline Direct Drive Spindle
Shower Coolant
1 MB Programming Memory
Memory Key Lock Switch
15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
195-260V 3-Phase Power Required
(2) Abbott X62812-500DIN Tombstones

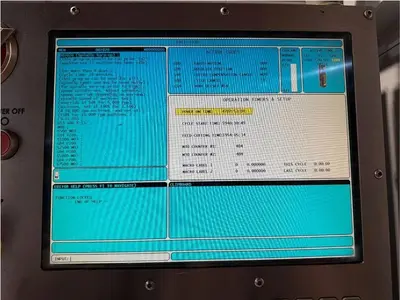

**Cycle Start Time 5,940 Hours**
**Feed Cutting Time Estimated at 1,954 Hours**
