2011 NAKAMURA-TOME WT-300MMY
Have one to sell?
ConditionUsed
1 available

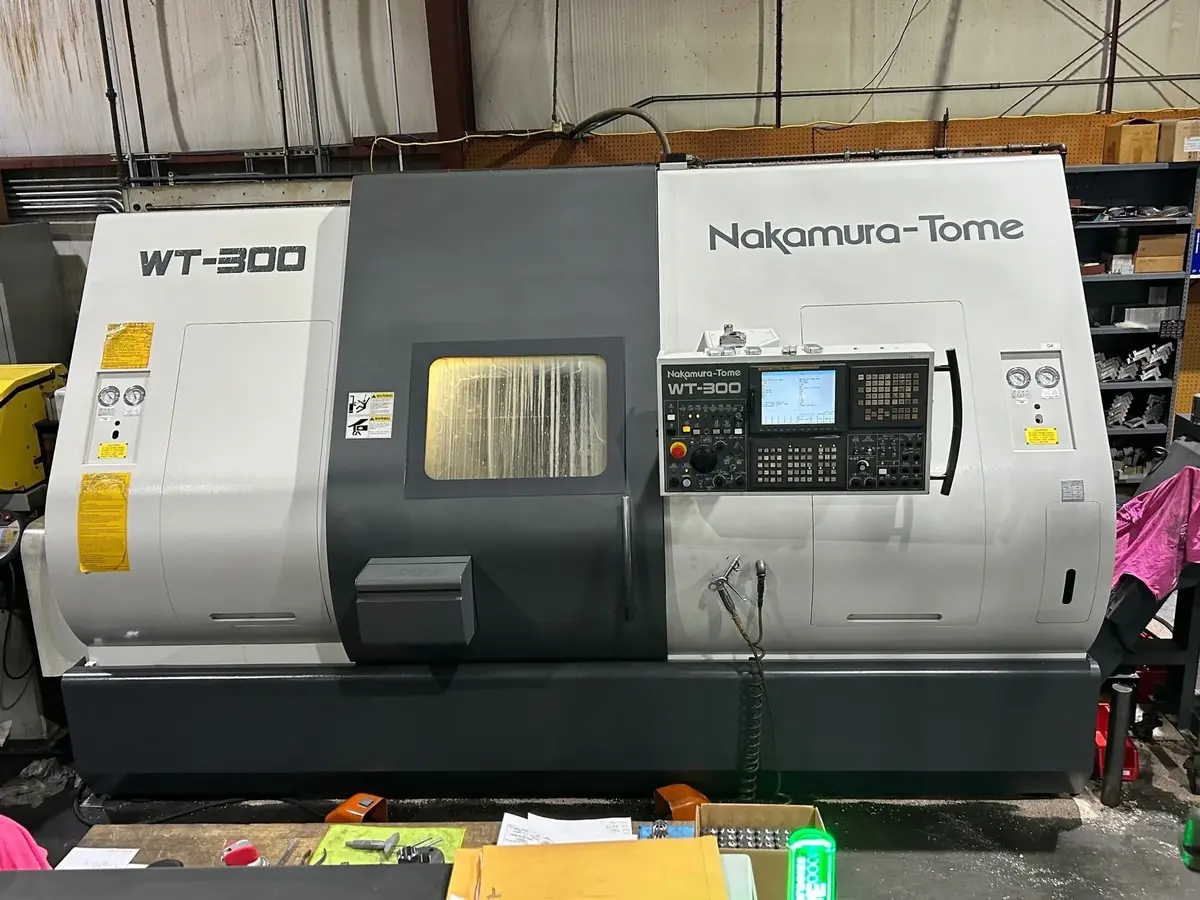

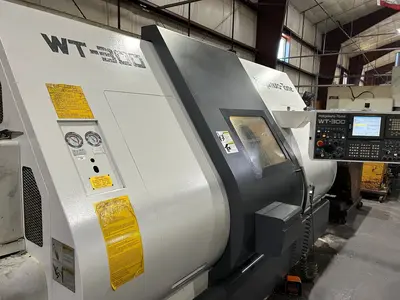

2011 Nakamura-Tome WT-300MMY 5-Axis Lathe, used and equipped with FANUC 18ITB 7-axis CNC, dual 8" hydraulic chucks, automatic parts catcher, high-pressure coolant, and more. 25 hp, 4,500 RPM spindles.
Spec Value
Swing Over Bed 10.63"
Turning Diameter 10.63"
Turning Length 30.71"
Distance Between Spindles 43.31"
Chuck Size 1 8"
Spindle Nose 1 A2-6
Spindle Bore Diameter 1 3.15"
Bar Capacity 1 2.5"
Spindle Speeds 1 4,500 RPM
Spindle Horsepower 1 25 hp
Chuck Size 2 8"
Spindle Nose 2 A2-6
Spindle Bore Diameter 2 3.15"
Bar Capacity 2 2.5"
Spindle Speeds 2 4,500 RPM
Spindle Horsepower 2 25 hp
X1 Axis Travel 7.68"
X2 Axis Travel 7.68"
Z1 Axis Travel 30.71"
Z2 Axis Travel 30.71"
Y1 Axis Travel 4.72"
C Axis Indexing 1 0.001
C Axis Indexing 2 0.001
W Axis Travel Sub Spindle 33.46"
Turret Tool Positions 1 24 station
Turret Rotary Tool Speeds 1 3,600 RPM
Turret Rotary Tool Horsepower 1 7.5 hp
Turret Tool Positions 2 24 station
Turret Rotary Tool Speeds 2 3,600 RPM
Turret Rotary Tool Horsepower 2 7.5 hp
Programmable Tailstock No
Machine Weight 27,000 lb

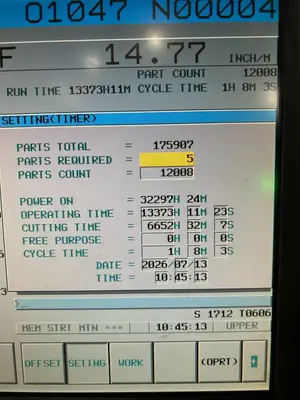

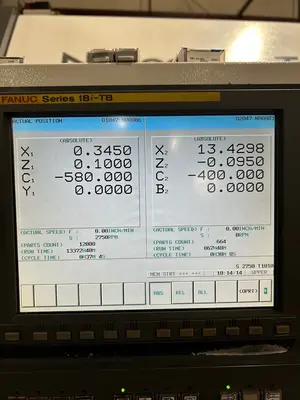

FANUC 18ITB 7-AXIS CNC CONTROL
THREAD CUTTING
MILLING BOTH TURRETS
SYNCHRONIZED Z AXES
HYDRAULIC PRESSURE INTERLOCK
HIGH PRESSURE COOLANT (BOTH TURRETS)
MILLING SPINDLE SYNC. TAP
ALL AVAILABLE MANUALS
CHIP CONVEYOR
12 ROTARY HEADS AND MISC. STATIC TOOL HOLDERS
MANUAL GUIDE I
(2) 8" 3-JAW HYDRAULIC KITAGAWA CHUCKS
AUTOMATIC PARTS CATCHER
TOOL PRESETTER
DUAL 300 PSI HIGH PRESSURE COOLANT THRU THE MILL HEADS
POLAR COORDINATE INTERPOLATION
CYLINDRICAL INTERPOLATION
HELICAL INTERPOLATION
THREAD CUTTING RETRACT
CONTINUOS THREAD CUTTING
VARIABLE LEAD THREAD CUTTING PACKAGE (OPTION)
BACKGROUND EDIT
EXTENDED PART PROGRAM EDITING
GRAPHIC FUNCTION
DYNAMIC GRAPHIC FUNCTION
