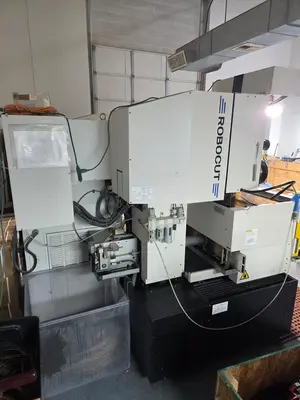

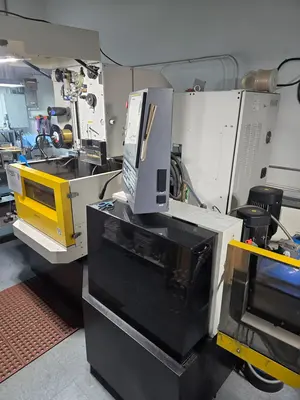

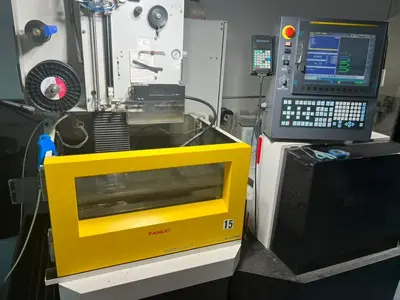

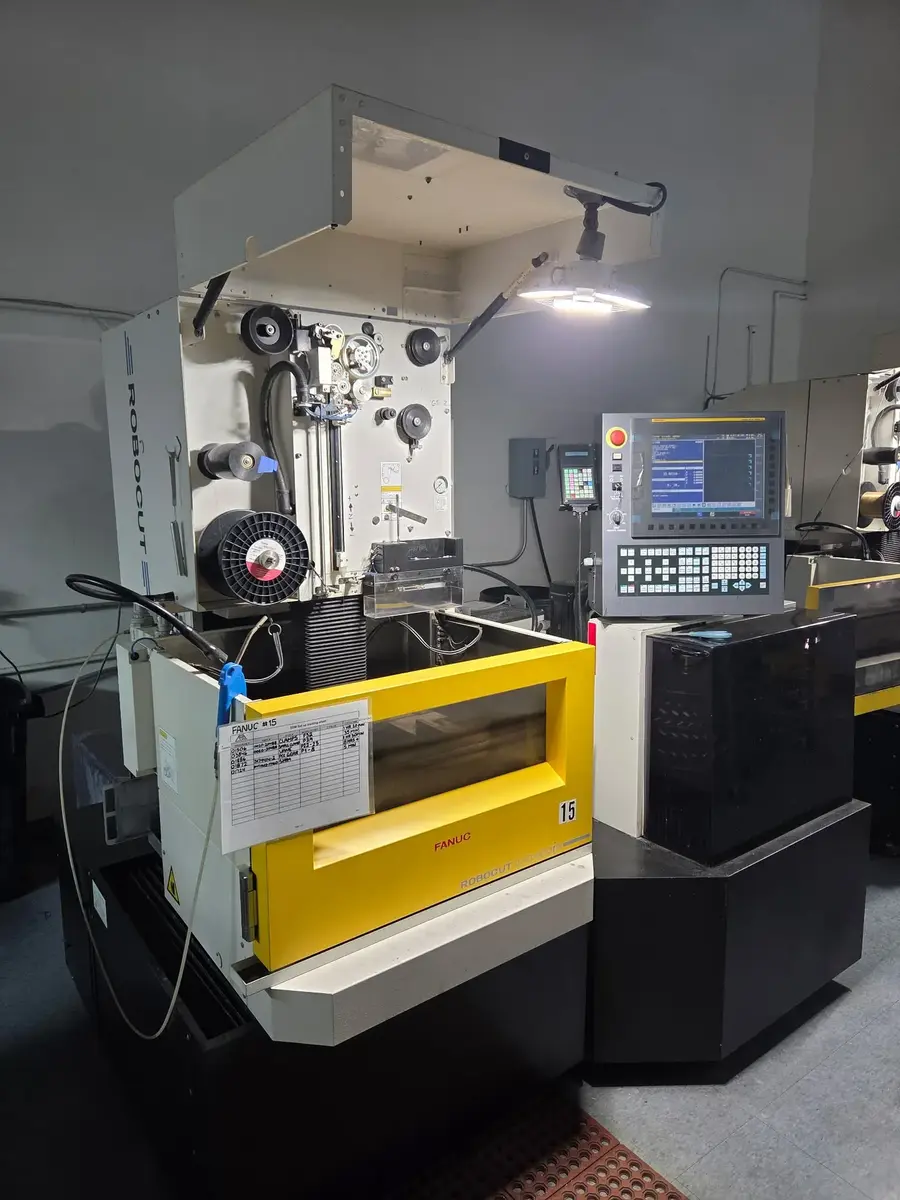

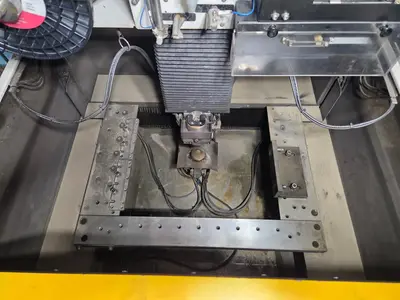

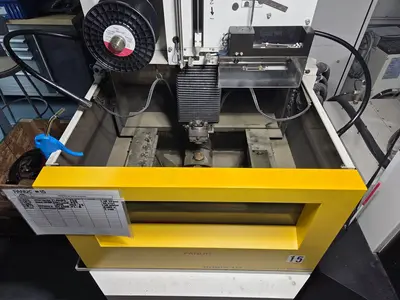

Used 2017 FANUC ROBOCUT A-C400IB | Wire EDM
Have one to sell?
ConditionUsed
1 available
X-Axis Travel: 15.7"
Y-Axis Travel: 11.8"
Z-Axis Travel: 10.2"
Internal Work Tank Size: 28.7” x 24.8” x 9.8
Tank Capacity: 145 Gal
Maximum Submerged Cutting Depth: 9.8"
U/V Axis Travel: 2.36" x 2.36"
Maximum Work Piece Weight: 1,102 Lbs.
Control: Fanuc Series 31i-WB
Power Requirement: 200-220 V/3 Phase/60 Hz
Degree Taper Cutting: 12° @ 10.0"
Machine Weight: 4,000lbs
Glass Scale Feedback: X and Y Axis Only
Floor Space: 94" x 105"
Inside Tank Dimensions: 28.7” x 24.8”
Wire Diameter: 0.004" To 0.012"
Auto Wire Threading
Automatic Power Recovery
Programmable “Z” Axis
Automatic Restart
Programmable Flushing
Ethernet Port
Chiller
Exclusive Twin Servo Motor Wire Tension System
FANUC Automatic Wire Feed System
S232C Input/Output Port for File Transferring
Fanuc Filtration Unit
2 USB Ports
FANUC High Speed Digital / AC Power Supply
Servo Motor Controlled Automatic Water Level Control in Work Tank
FANUC Serial/Digital AC Servo Motors
3D Coordinate System Rotation
Fanuc Series 31i-WB 15" Color LCD – Touch Screen
Stainless Submersible Vertical Wire Alignment Gauge
Heidenhain Linear Glass Scales
Anti-Crash Protection
Independent Column Mounted U and V Axis Slides
Auto Wire Recovery Function
NC Command Resolution Of 0.0000004” (0.0001 Mm)
Automatic Corner Rounding
Part Program Storage Capacity 4 Megabyte
