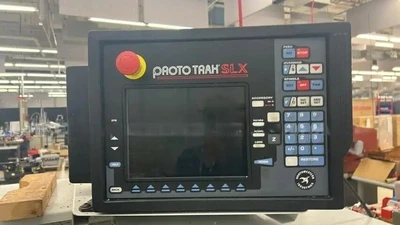

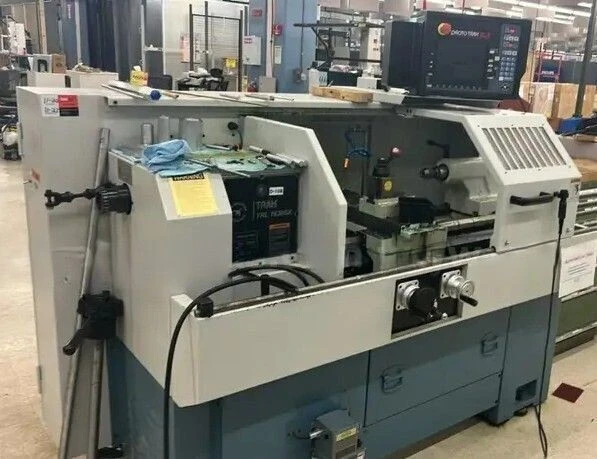

2016 SOUTHWESTERN INDUSTRIES TRAK TRL 1630SX

Axis Configuration:  2-Axis
Chuck Size:  10 in 6-Jaw
Swing Over Bed:  16 in
Swing Over Saddle Wings:  16 in
Swing Over Cross Slide:  8.6 in
Distance Between Centers:  30 in
Cross Slide Travel:  9.6 in
Maximum Tool Section:  3/4 in
Spindle Through Hole:  2.12 in
Spindle Nose:  D1-6 Camlock
Spindle Taper:  MT #6
Spindle Speed Range:  150 – 2500 RPM
Spindle Motor:  7.5 HP
Tailstock Quill Travel:  5 in
Tailstock Quill Diameter:  2.36 in
Tailstock Taper:  MT #4
Maximum Rapid Feed (X / Z):  100 / 150 IPM
Coolant Tank Capacity:  11 Gallons
Coolant Pump Motor:  1/8 HP
Electrical Requirements (Machine):  220V / 3 Phase / 60 Hz
Electrical Requirements (Control):  110V / 1 Phase / 8 Amp
Machine Dimensions (Net):  79 in × 38 in × 54 in
Shipping Dimensions:  87 in × 45 in × 67 in
Machine Weight (Net):  2,200 lbs
Shipping Weight:  2,750 lbs
