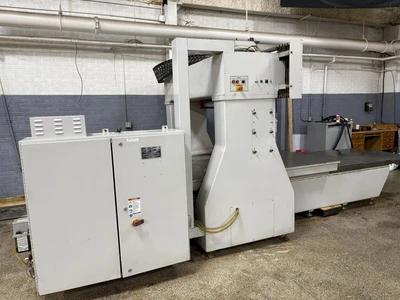

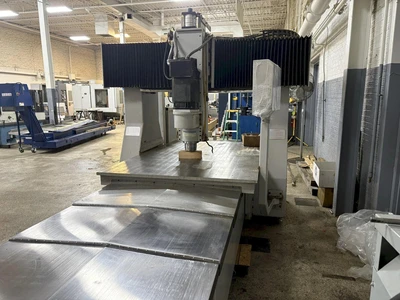

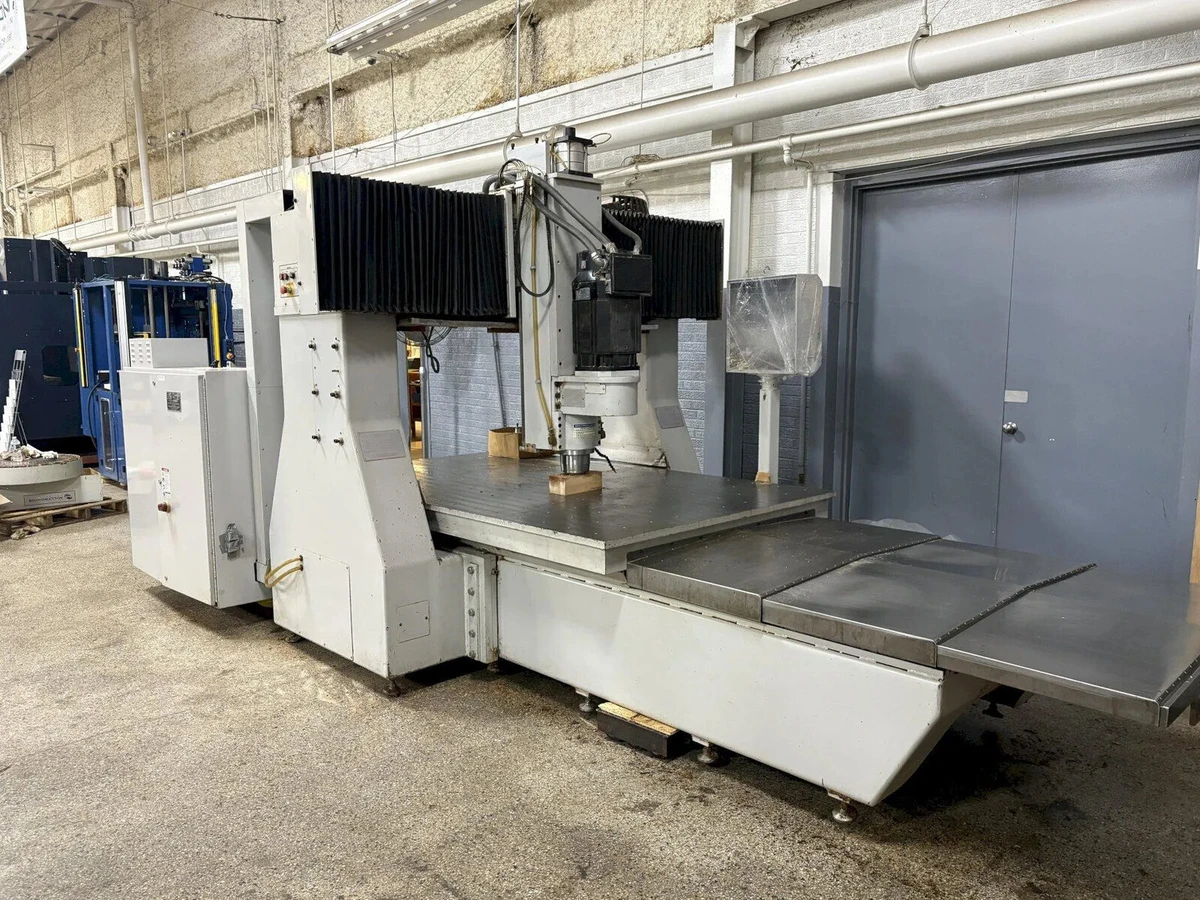

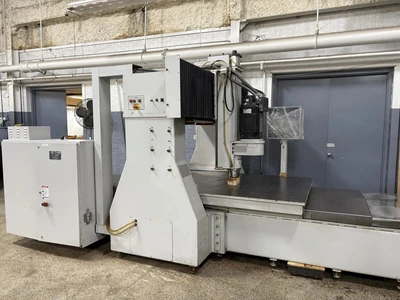

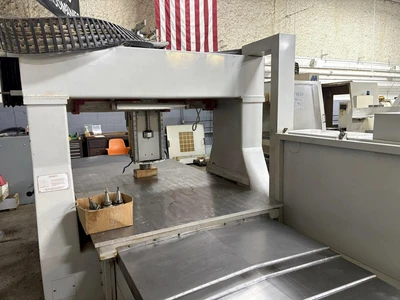

2006 MILLTRONICS BR60
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center, 100"x60"x28" travels, 60"x96" table, 8000 rpm spindle, 24-pocket ATC, equipped with Cent 7 CNC control and emulated floppy drive.
Travels - 100" x 60" x 28"
Table Size - 60" x 96"
Feed Rate - 500 ipm, max
Rapid Traverse Rate - 1000 ipm
Max Weight on Table - 5000 lbs.
Distance Spindle To Table - 4" min to 32" max
Spindle Speed - 50 to 8000 rpm
Spindle Taper - CT40
Two Speed Spindle Motor (1 min/ 30 min) - 24/15 HP
ATC - 24 Pocket Carousel
Tool Change Time - 7 Seconds Tool to Tool
Max Tool Diameter - 4"
Max Tool Length - 11"
Max Tool Weight - 10 Lbs.
Dimensions (Floor Space Required) - 265" x 148" x 134"
Weight, Approx - 15,000 Lbs.
Cent 7 CNC Control
Conversational Plus G & M Code Programming
3D Part and Tool Path Graphics
3.5" Floppy Drive Replaced with Emulator
