| X | 16" | 406.4 mm |
| Y | 12" | 304.8 mm |
| Z | 10" | 254 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 12" | 304.8 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |

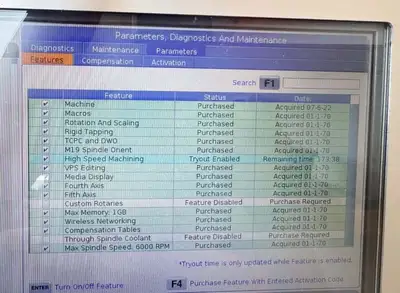

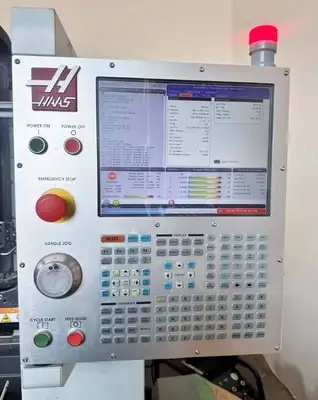

HAAS NEXTGEN CONTROL
HAAS TRT100 DUAL-AXIS TILTING ROTARY TABLE
4TH AXIS DRIVE & WIRING
5TH AXIS DRIVE & WIRING
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
HIGH-FLOW COOLANT PUMP KIT
WINDOW AIR BLAST
CHIP AUGER
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL (DWO/TCPC)
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIRELESS NETWORKING
HAASCONNECT: REMOTE MONITORING
AN ASSORTMENT OF CAT40 TOOL HOLDERS & INSERTS (SHOWN IN PHOTOS)
This equipment is currently unavailable. Similar equipment available now is shown below.
