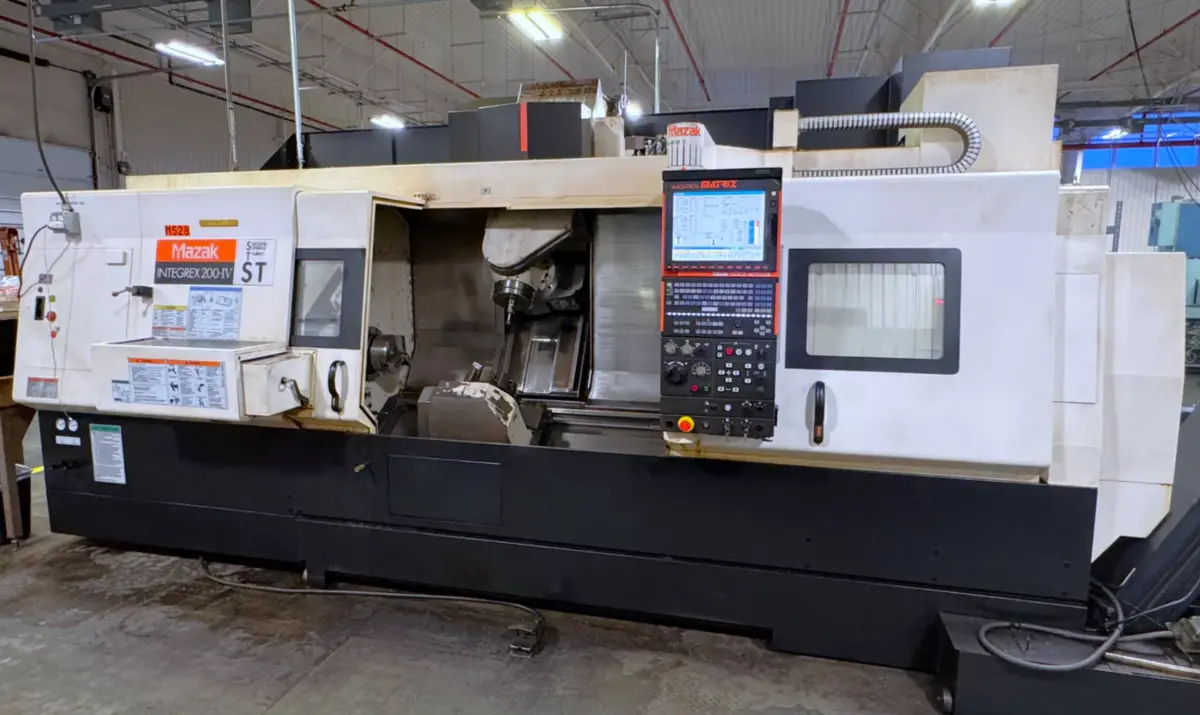

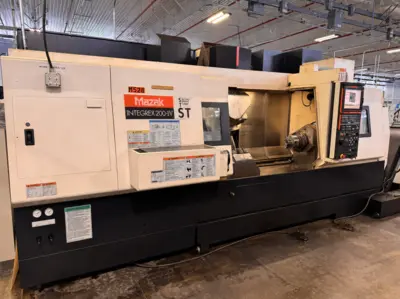

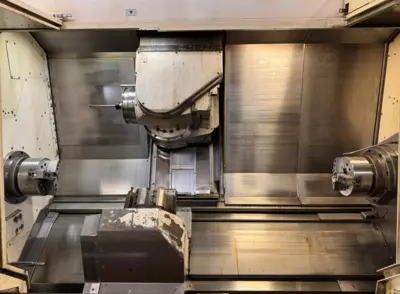

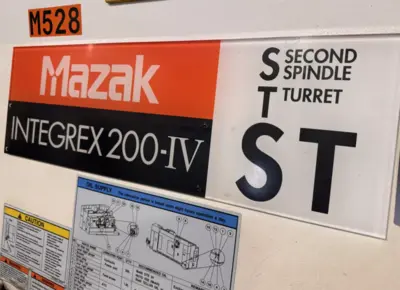

2011 MAZAK INTEGREX 200-IV ST

Max Turning Diameter: 26.0″
Max Turning Length: 60.0″
Max Bar Capacity: 2.55″
Max Swing Over Bed: 26.0″
Max Swing with Y-Axis: 19.70″
Max Weight on Main & Sub Spindle: 660 lbs

Travel:
X Axis Travel: 22.83″
Y Axis Travel: 6.30″ ( +/- 3.15)
Z Axis Travel: 60.83″
W Axis Travel: 58.66″ (Sub Spindle)
B Axis Travel: 225 Degree
C Axis: 360° (0.001°) Both Spindle
X Rapid Traverse Rate: 1496 Inch Per Minute
Y Rapid Traverse Rate: 1093 Inch Per Minute
Z Rapid Traverse Rate: 1496 Inch Per Minute

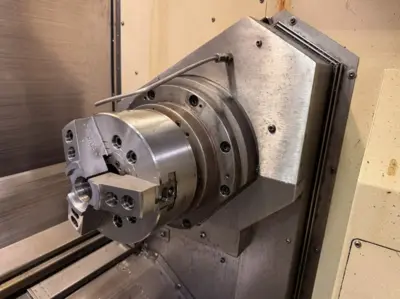

Spindle:
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-6
Main Spindle Bore: 2.99″
Sub Spindle Bore: 2.99″
Main Spindle Speed: 35 – 5000 RPM
Sub Spindle Speed: 35 – 5000 RPM
Main Spindle Motor: 30 HP
Sub Spindle Motor: 25 HP

Milling Head:

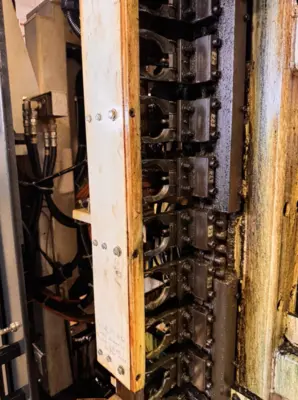

Single Station Pendulum Head with 40 ATC
Tool Type: KM-63, 40 Taper
Max Tool Diameter: 3.54″
Max Tool Length: 11.81″
Spindle Speed: 15-12,000 RPM
Spindle Motor: 25 HP
Spindle 90° Index Time: 0.5 sec

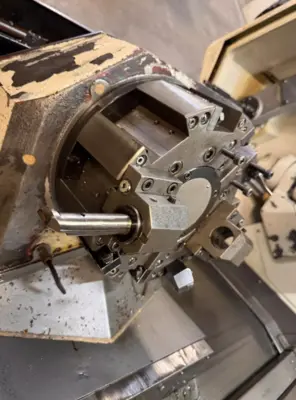

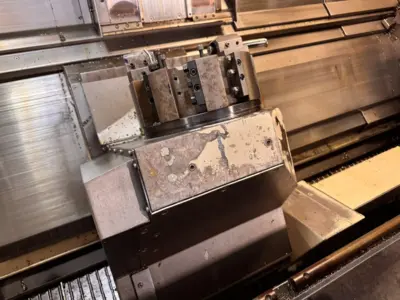

Lower Turret:
Capacity: 9 Stations
Turret Index Time: 0.14 Second
OD Tool Size: 1.00″

General:
Power Source: AC 400 V, Three Phase, 50/60 Hz
Power Requirement: 91.8 Kva
Overall Dimensions: 160″ x 93.0″ x 110.2″ High
Weight: 26,840 lbs Approx.
