Used 2011 SNK FSP-80V | 5-Axis+ Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available

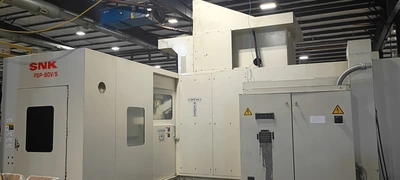

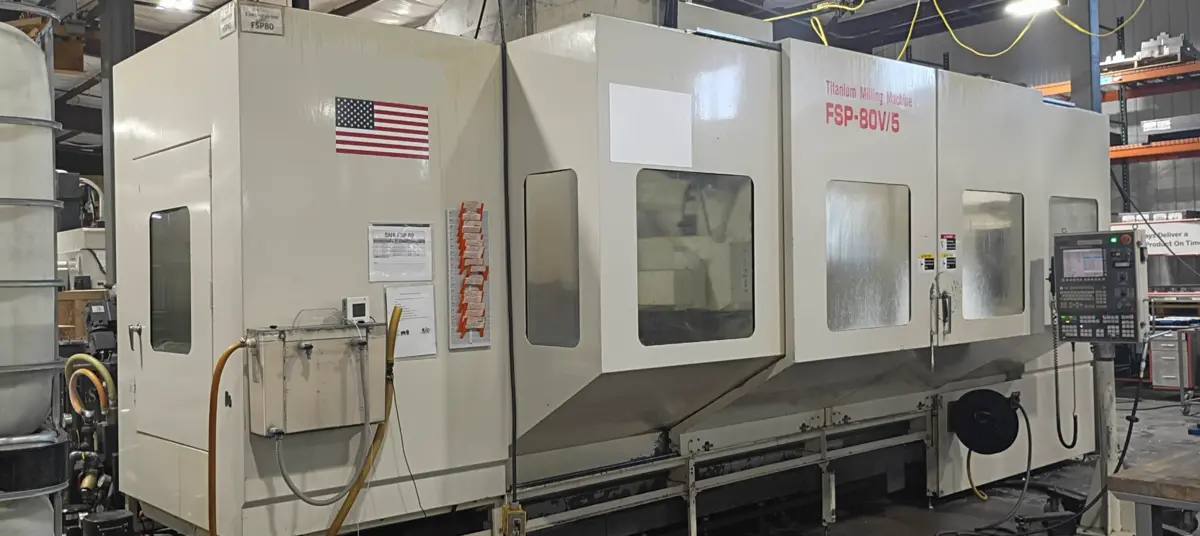

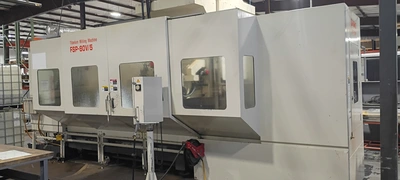

SNK FSP-80V 5-Axis Vertical Machining Center, 2011 model, features 90.5" X, 37.4" Y, and 27.5" Z travel. Equipped with FANUC 31i-A5, 40-tool ATC, splash guard, chip conveyor, and spindle overload protection. 30 hp, 4,000 RPM.
Travels
- Table travel (X-Axis): 2,300 mm (90.5 in)
- Column travel (Y-Axis): 850 mm (33.4 in) + ATC 400 mm (15.7 in)
- Spindle vertical (Z-Axis): 700 mm (27.5 in)
- Spindle swivel (A & B-Axis): ±30 deg.
Feed Rates
Rapid Traverse
- X & Y-Axis: 20 m/min (787.4 ipm)
- Z-Axis: 10 m/min (393.7 ipm)
- A & B-Axis: 1,000 dpm
Feedrate
- X & Y-Axis: 0 to 10,000 mm/min (0 to 393.7 ipm)
- Z-Axis: 0 to 5,000 mm/min (0 to 196.8 ipm)
- A & B-Axis: 0 to 500 dpm

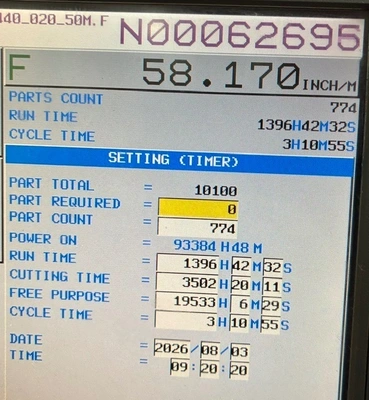

- CNC: FANUC 31i-A5
Automatic Tool Changer
- Automatic tool changer (ATC): 40 tools
Table
- Work mounting surface Width: 800 mm (31.5 in)
- Work mounting surface Length: 2,000 mm (78.7 in)
- Table loading capacity: 4,000 kg (8,800 lbs.)
Spindle
- Spindle speed: 20 to 4,000 min-1
- Spindle nose: ISO. No. 50 (Dual Face Contact Type)
- Spindle horsepower: VAC 22 kW (30 min.) / 18.5 kW (cont.); VAC 30 hp (30 min.) / 25 hp (cont.)
Automatic Tool Changer (40 tool)
Air blow device
Splash Guard (around machine, no ceiling)
Coolant tank (600L effective capacity)

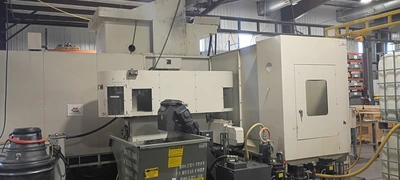

Chip Conveyor (Screw type)
Through Spindle Coolant (72.5 psi)
Shower Coolant
Manual Handle Operation Panel (with coordinate display)
Spindle Overload prevention function
