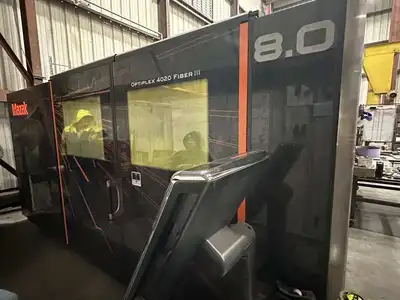

2019 MAZAK OPTIPLEX 4020 FIBER II
Have one to sell?
ConditionUsed
1 available

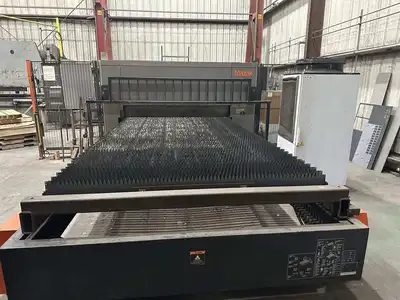

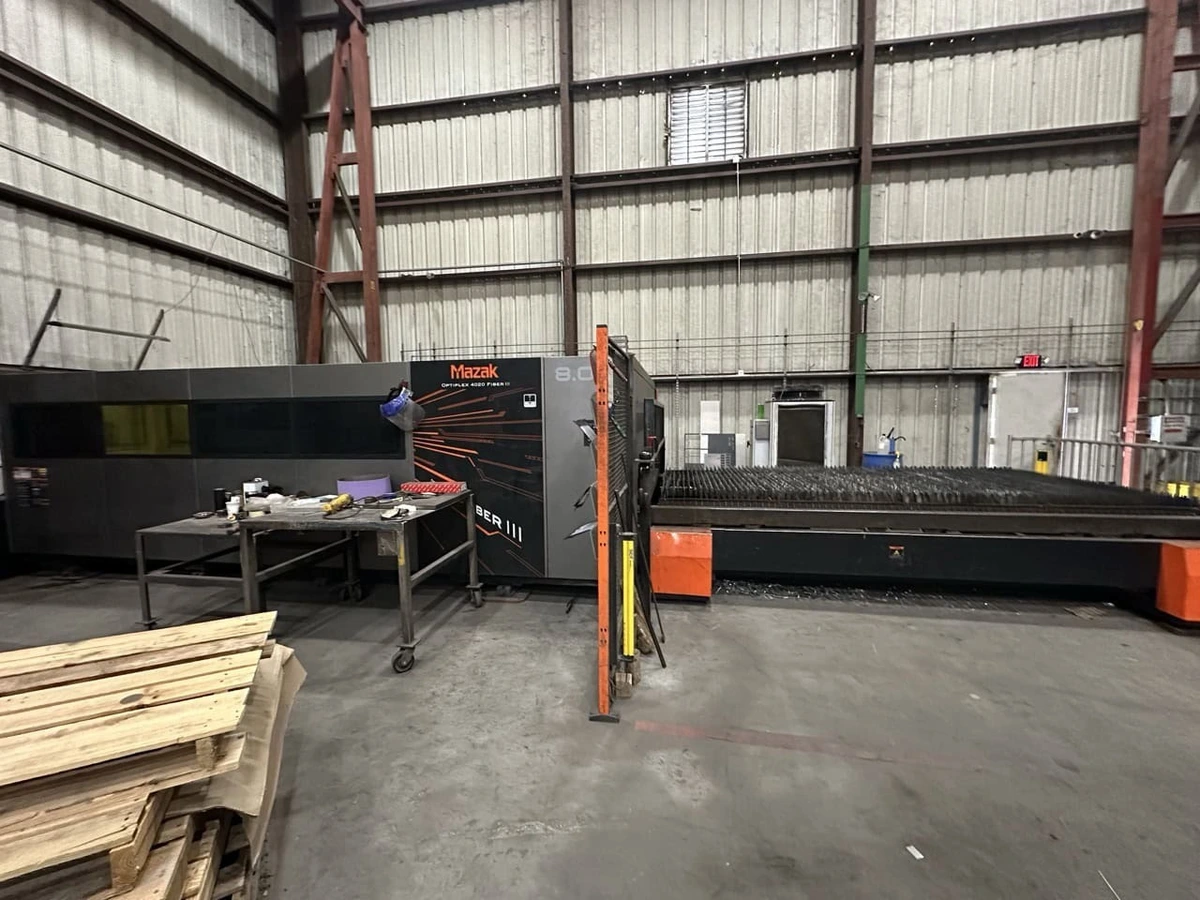

Used FIBER II laser cutter, equipped with Mazatrol PreviewG, IPG Resonator, and dual pallet changer. Features 80"x160" cutting area, ±0.0004" positioning accuracy, and handles max 2,200 lbs sheet weight.
Cutting Capacity:
Max Sheet Size: 80″ x 160″
Max Thickness Mild Steel: 1″
Max Thickness Stainless Steel: 1.25″
Max Thickness Aluminum: 1″
Positioning Accuracy: ±0.0004″
Repeatability: ±0.0002″
Travels:
X-Axis: 160″
Y-Axis: 80″
Z-Axis: 4-5″
Rapid Traverse Rate:
X/Y-Axis: ~4,725 ipm
Z-Axis: ~6,500 ipm
Max Sheet Weight: ~2,200 lbs per pallet
Table Load Capacity: ~180 lbs/sq ft
Mazatrol PreviewG Control
IPG Resonator
Shuttle Table (dual pallet changer)
Dust Collector
Scrap Conveyor
4th Assist Piping
Nozzle Centering Camera
High Accuracy Camera
Regulator Start-Up Kit II
Electrical Requirements: 480V/3Ph/60Hz
Dimensions: approx. 420″ x 120″ x 84″
Weight: approx 47,024 lbs
