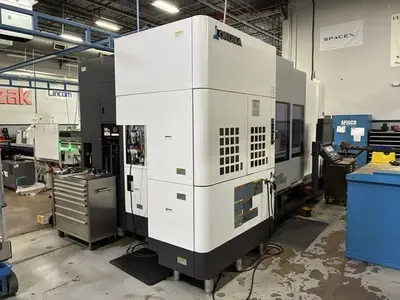

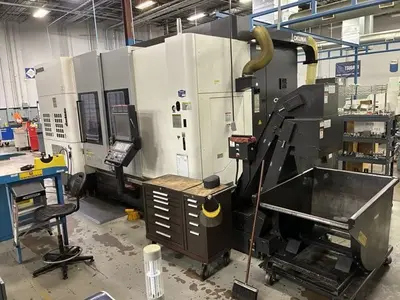

2021 OKUMA MULTUS U3000 BBSB-2SW-1500

Bar Capacity: 2.76"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 25.39"
Z Axis Travel: 62.99"
Rapid Rate Z Axis: 1,968 IPM
Turret Tools: 80 Station
Rapid Rate X Axis: 1,968 IPM
Max Turning Dia: 25.59"
Max Turning Length: 59.05"
Max Swing: 25.59"
Y-Axis travel: 9.84" (±4.92" / 250mm), traveling-column type
Rapid traverse (Y): 1,574 IPM

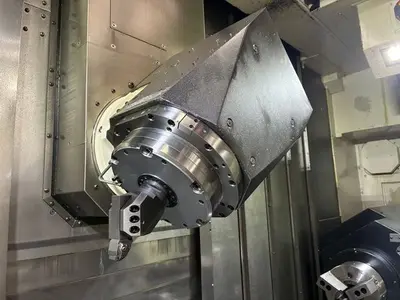

B-axis (milling head): 240° range, -30° to +210°, 0.001° indexing
B-axis spindle speed: 12,000 RPM (H1 dual-function L/M milling spindle)
Milling spindle motor: 30 HP intermittent (33 HP)
C-axis: 360°, 0.0001°–0.001° positioning accuracy (both spindles)
Tooling interface: CAPTO C6
Dimensions: 213.6" x 117.9" x 116.3"
Weight: 36,300 LBS
Quantity Part Number Vendor Description
1 L5R50137 Okuma MULTUS U3000 2SW/1500 (15.08) Included
1 KUP-0990-00 Okuma VELOCITY - STATIC TOOL KIT - M Included
1 C-917-M8370-C54 Okuma MACHINE AOT IGF P4 ATC LATHE Included
1 C-5R5-P3101-C54 Okuma CHUCK HI/LO PRESSURE SWITCHABLE, LEFT (MAIN) Included
1 C-5R5-P3204-C54 Okuma KITAGAWA BB210-A8 10" CHUCK F/A2-8 SPINDLE NOSE,
LEFT(MAIN) Included
1 C-5R5-P6015-C54 Okuma COOLANT LEVEL CHECK, LOW Included
1 C-5R5-P3105-C54 Okuma CHUCK HI/LO PRESSURE SWITCHABLE, RIGHT (SUB) Included
1 C-5R5-P6101-C54 Okuma 200 HOUR LUBE TANK Included
1 C-5R5-M8259-C54 Okuma BARFEEDER INTERFACE, UNIVERSAL TYPE, HARDWIRED Included
1 C-5R5-P21Z3-C54 Okuma AUTO DOOR (LEFT AND RIGHT) WITH RUBBER SWITCH Included
1 C-5R5-M8224-C54 Okuma EXTERNAL PROGRAM SELECT C (BCD EXPRESSION) 4
DIGITS, ABX EIP Included
1 C-5R5-P22U2-C54 Okuma PARTS CATCHER, 2-SADDLE (2S), SUB SIDE Included
1 C-5R5-M8274-C54 Okuma ROBOT LOADER INTERFACE TYPE D, (LATHE), ABX EIP Included
1 C-5R5-P7617-C54 Okuma 5-AXIS TUNING SYSTEM, STANDARD Included
1 C-SFT-M8249-C54 Okuma C-AXIS SYNCHRONIZE FUNCTION, BOTH SPINDLES Included
1 C-SFT-M83A1-C54 Okuma HELICAL CUTTING FOR X-C-Z Included
1 C-SFT-M8254-C54 Okuma Y-AXIS OFF-CENTER TURNING FUNCTION Included
1 C-SFT-M8454-C54 Okuma SUPER NURBS TYPE A Included
1 C-SFT-M8241-C54 Okuma GAUGING DATA PRINTOUT FUNCTION Included
1 C-SFT-M82E5-C54 Okuma C-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES Included
1 KUP-1066-01 Okuma RENISHAW INSPECTION PLUS SOFTWARE W/GUI Included
1 C-SFT-M82E3-C54 Okuma Z-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES Included
1 C-5R5-P0408-C54 Okuma BB SPINDLE (A2-8) W/SR1781 CYL.+DTUBE F/BB210
CHUCK, LEFT Included
1 C-5R5-P1105-C54 Okuma NC B-AXIS WITH CONTOURING Included
1 C-5R5-P1281-C54 Okuma ATC 80 CAPTO-C6 WITH BAR FEED COVER Included

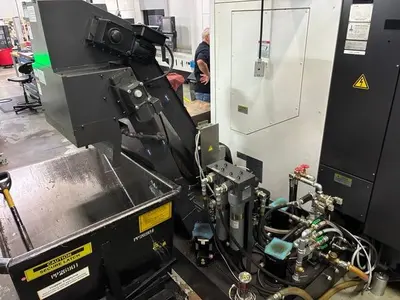

1 C-5R5-P2089-C54 Okuma CONVEYOR, HINGE WITH FILTER, HIGH (LONG BED) Included
1 C-5R5-P2781-C54 Okuma AUTO GAUGING RENISHAW RMP600 RMI-Q CAPTO-C6 Included
1 C-5R5-P2818-C54 Okuma TOUCHSETTER AUTO FOR 2 SADDLE Included
