2012 Mazak Orbitec 20/PC2 Horizontal Machining Center with Robot Interface
Have one to sell?
ConditionUsed
1 available

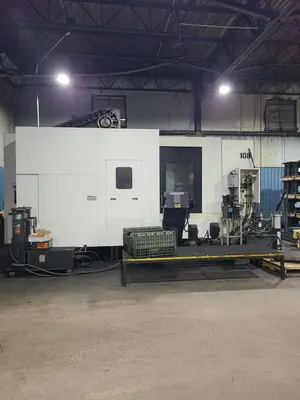

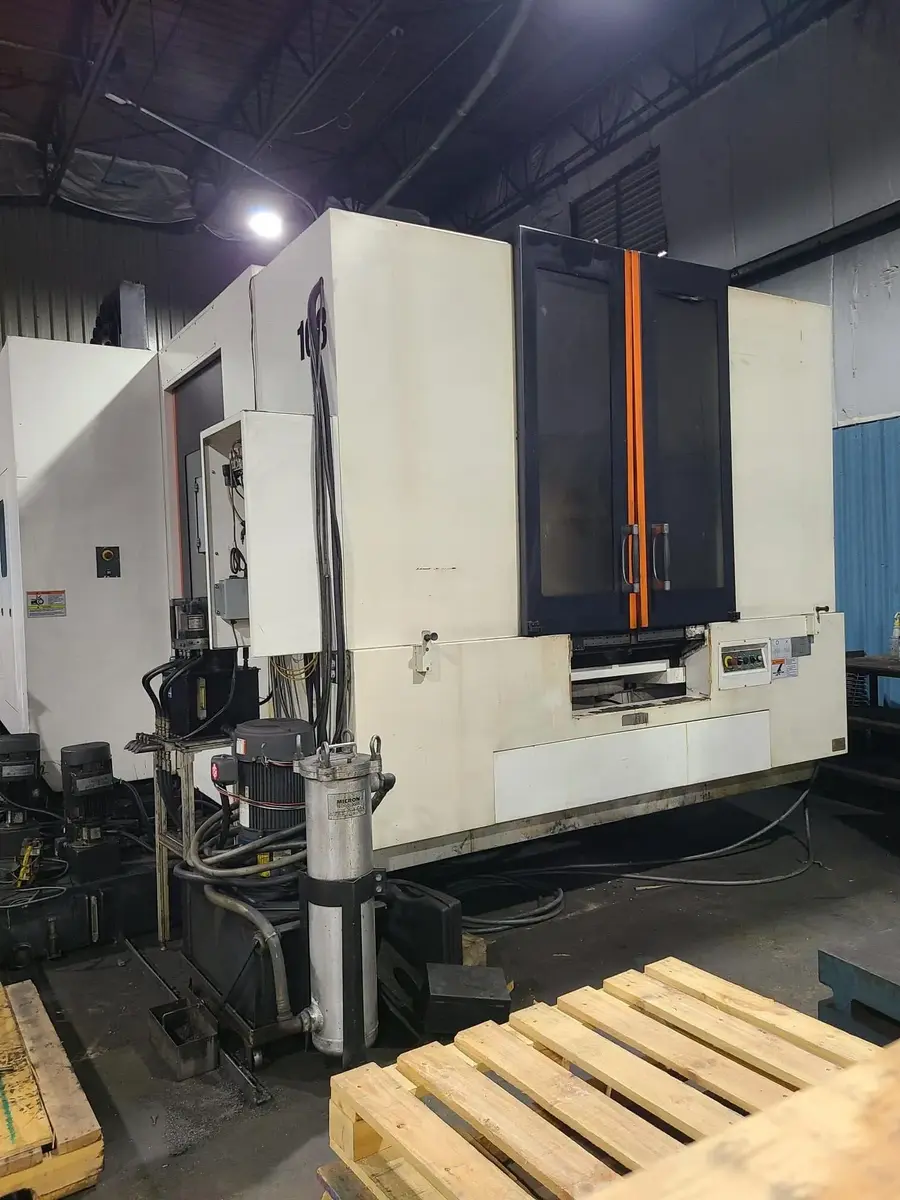

This 2012 Mazak Orbitec 20/PC2 horizontal machining center comes with a 2-pallet setup, robot interface, hydraulic fixturing, 1,000 PSI through spindle coolant, and a spindle probe package. Its 40 HP Capto C8 spindle reaches 600 RPM with a 60-tool magazine, taking workpieces up to 41.34" in diameter and 51.18" high across 11.02" of X and 48.43" of Z travel.
Pallet Size: 24.8"
Max Workpiece Diameter: 41.34"
Max Workpiece Height: 51.18"
NC Positioning Table: 0.001° Index
2-Pallet System
Robot Interface
Capto C8 Spindle Taper
1,000 PSI Through Spindle Coolant
Spindle Probe Package
Hydraulic Fixturing
3,000 PSI Hydraulic Ports (4P x 2)
2 Air Ports
2 Hydraulic Ports
PMC Prep
Magnetic Scraper Conveyor
This 2012 Mazak Orbitec 20/PC2 horizontal machining center comes with a 2-pallet setup, robot interface, hydraulic fixturing, 1,000 PSI through spindle coolant, and a spindle probe package. Its 40 HP Capto C8 spindle reaches 600 RPM with a 60-tool magazine, taking workpieces up to 41.34" in diameter and 51.18" high across 11.02" of X and 48.43" of Z travel.
The Mazak Orbitec 20/PC2, also searched as Mazak Orbitec 20, Orbitec 20 PC2, or Orbitec20, is a large-part horizontal machining and turning center (HMC) with a pallet changer.
This 2012 machine has 0.001° NC table indexing and comes equipped with hydraulic fixturing ports, PMC prep, and a magnetic scraper conveyor.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Pallet Size: 24.8"
Max Workpiece Diameter: 41.34"
Max Workpiece Height: 51.18"
NC Positioning Table: 0.001° Index
2-Pallet System
Robot Interface
Capto C8 Spindle Taper
1,000 PSI Through Spindle Coolant
Spindle Probe Package
Hydraulic Fixturing
3,000 PSI Hydraulic Ports (4P x 2)
2 Air Ports
2 Hydraulic Ports
PMC Prep
Magnetic Scraper Conveyor
