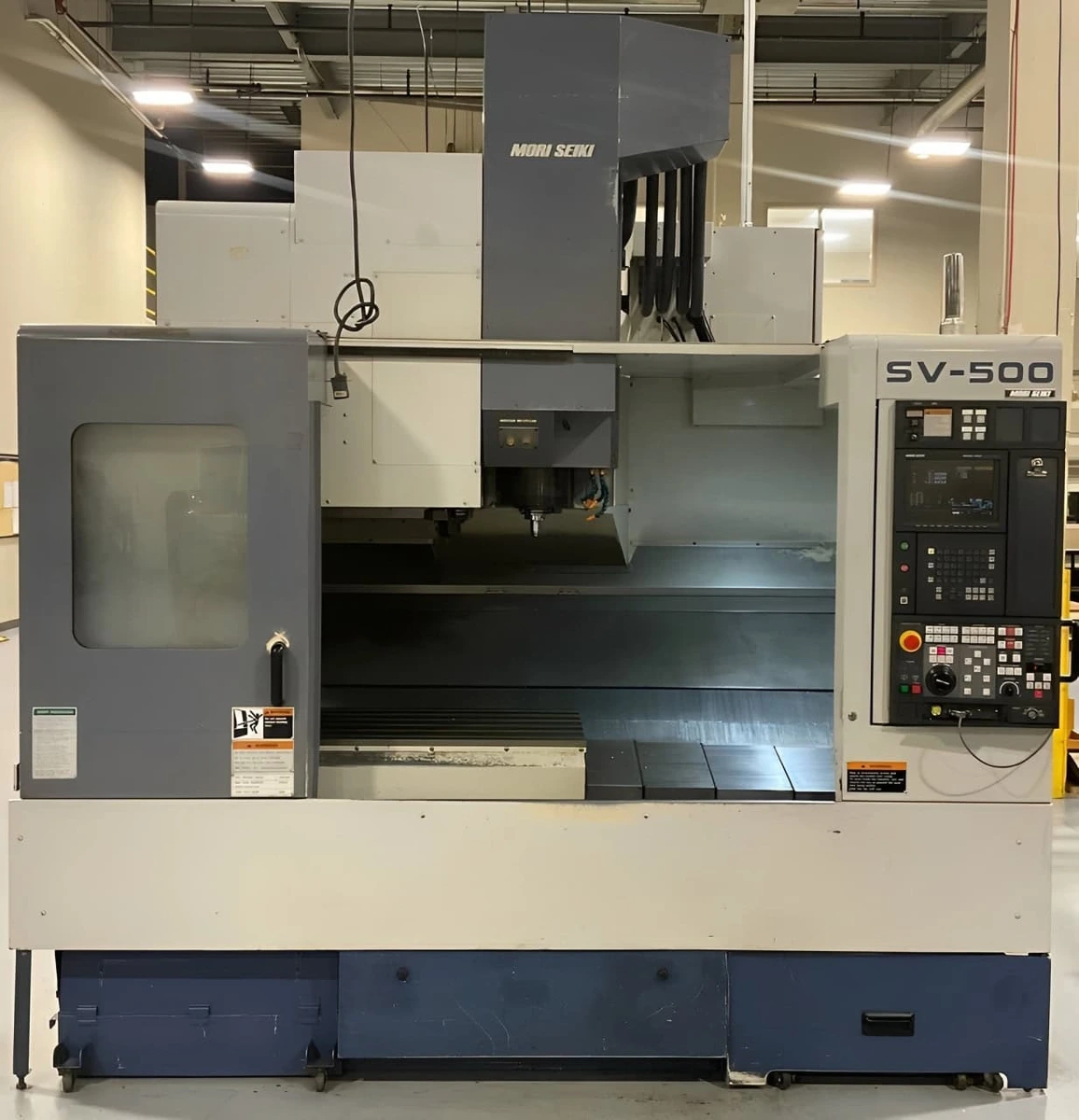

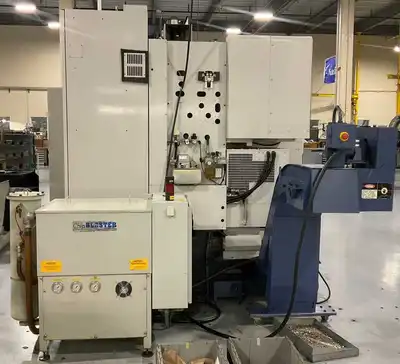

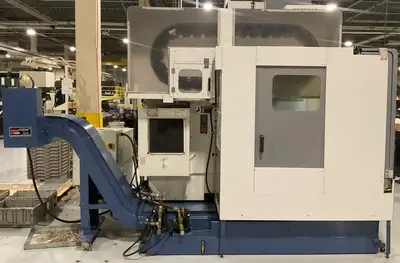

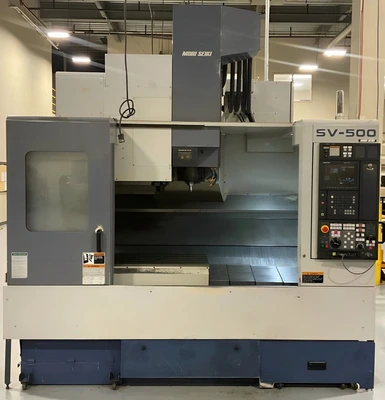

1998 MORI SEIKI SV500B
Have one to sell?
ConditionUsed
1 available
Table Size 43.3″ x 23.6″
Table Load Capacity 2,200 lbs
X-Axis Travel (Longitudinal)31.5″
Y-Axis Travel (Cross) 20.1″
Z-Axis Travel (Vertical)20.1″
Max. Tool Diameter / Length 4.9″ / 11.8″
Spindle Taper BT #40
Spindle Speed 10,000 RPM
Spindle Motor 30 / 25 HP (30 min / cont.)
Table Top to Spindle Nose 5.9″ – 26″
Tool Magazine Capacity 30 Positions (ATC)
Tool Change Time (chip to chip) 3.1 seconds
Rapid Traverse Rates 1,259 IPM
Machine Dimensions (L x W x H) 102″ x 93″ x 113″
Machine Weight 17,120 lbs
