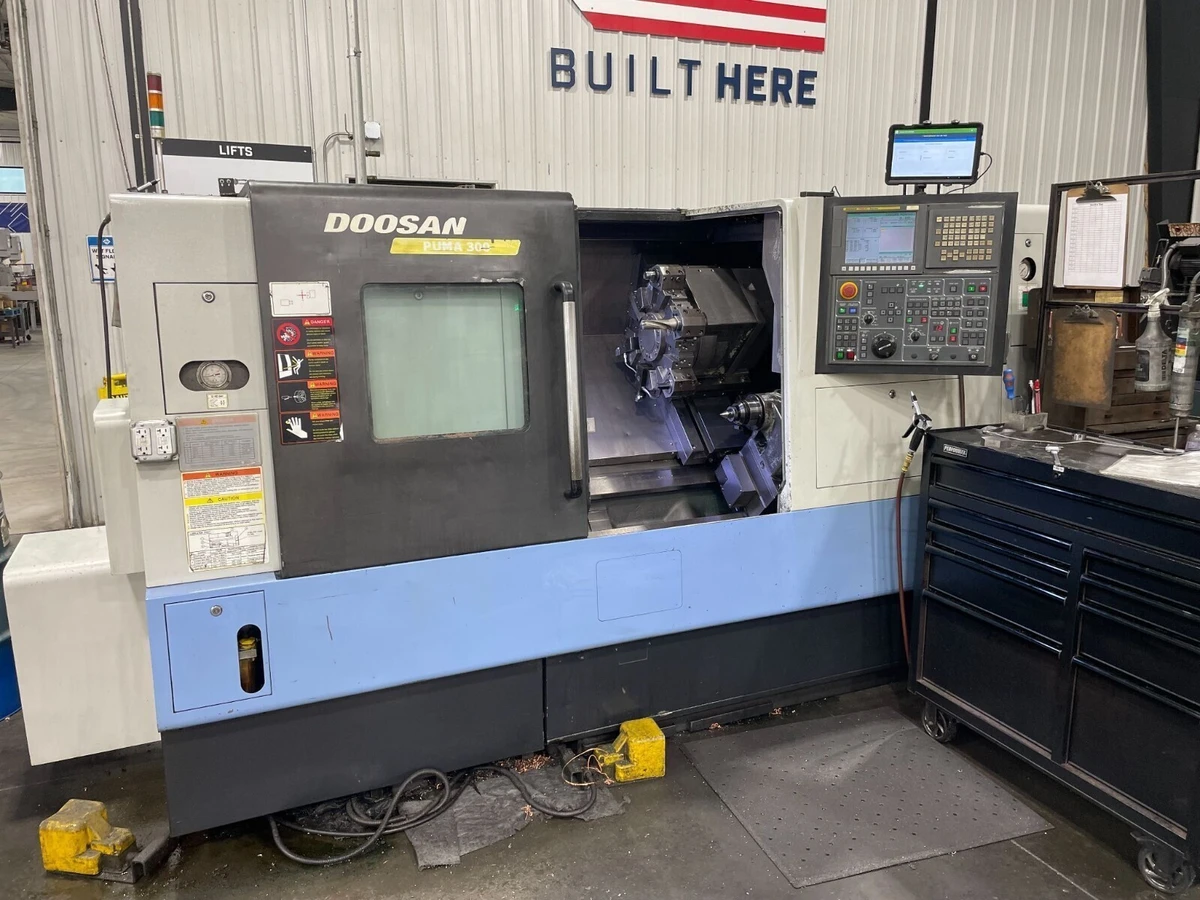

2011 DOOSAN PUMA 300C
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe: max turning diameter 15.7", length 24.8", spindle speed up to 2800 RPM. Includes chip conveyor, tailstock, tool setter. Equipped for precision work with 12 turret stations. Spindle motor 35 HP, rapid traverse 787/945 IPM.
Max Turning Diameter: 15.7 inch
Max Turning Length: 24.8 inch
Max Bar Capacity: 4.05 inch
Swing Over Bed: 22.4 inch
Swing Over Carriage: 17.7 inch
Distance Between Centers: 27.8 inch
X Axis Travel: 11.1 inch
Z Axis Travel: 26.8 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.5 inch
Spindle Speed: 0 – 2800 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97 inch
Tailstock Quill Travel: 4.7 inch
Chip Conveyor
Tailstock
Tool Setter

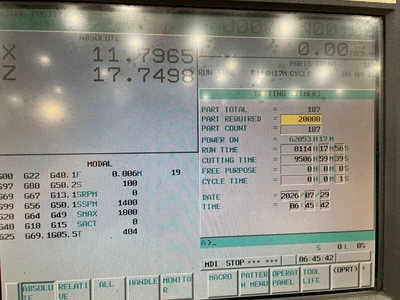

Cutting 9506
Run Time 8,114
