| Swing | 26" | 660.4 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 26" | 660.4 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 52" x 118.5" x 112.2" | 52" x 118.5" x 112.2" |
| Weight | 45,195 lb | 45,195 lb |
Swing over Bed 26"
Turning Diameter 26"
Turning Length 100"
Chuck Size 1 15"
Bar Capacity 1 4"
Spindle Speeds 1 2,500 RPM
Chuck Size 2 12"
Bar Capacity 2 3.6"
Spindle Speeds 2 4,000 RPM
B - Axis Head Indexing 0.0001
B - Axis Milling Spindle Taper Capto C6
B - Axis Milling Spindle Speed 12,000 RPM
B - Axis Milling Spindle Horse Power 35 hp
ATC For Milling Spindle 80
Tool Length 17.7"
Tool Weight 26.5 lb
X1 - Axis Travel 24.8"
Z1 - Axis Travel 101.8"
Y1 - Axis Travel 11.8"
C - Axis Indexing 1 360
W - Axis Travel Sub Spindle 98.4"
Rapid Traverse Rate - X1 1889.8 ipm
Rapid Traverse Rate - Z1 1181.1 ipm
Rapid Traverse Rate - Y1 1417.3 ipm
Machine Weight 45,195 lb
Dimensions 252" x 118.5" x 112.2"
FANUC 31-B5 CNC CONTROL
SCALES FOR X/Y/Z

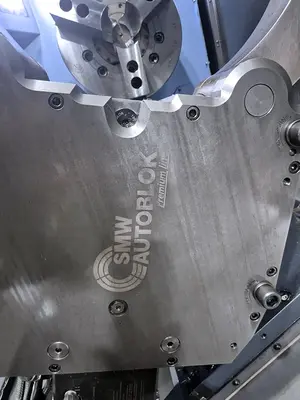

SMW STEADY REST 3.93" TO 16.1"
CHIP CONVEYOR
X AXIS BALLSCREW COOLING
ABSOLUTE PULSE CODER
AUTOMATIC ELECTRIC TOOL SETTER
PROGRAM STORAGE 1280M
EMBEDDED ETHERNET
AICC II 600 BLOCKS
8 PAIRS WORK COORDINATES
ATC OPERATING PANEL WITH TOUCH CAMERA
