MAX SWING 993.14 mm
MAX CUTTING DIAMETER 899.16 mm
MAX CUTTING LENGTH 1,999 mm
X-AXIS TRAVEL 485.14 mm
Z-AXIS TRAVEL 2,148.8 mm
CHUCK SIZE 635 mm
BAR CAPACITY 165.1 mm
SPINDLE BORE 185.42 mm
SPINDLE NOSE A2-15
SPINDLE MOTOR 37.3 kW
SPINDLE SPEED 1,500 RPM

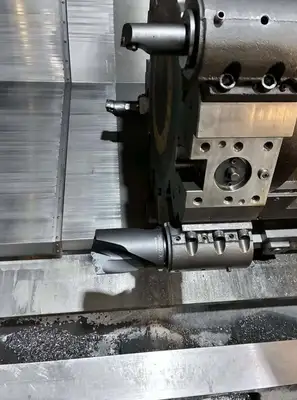

TURRET POSITIONS 10

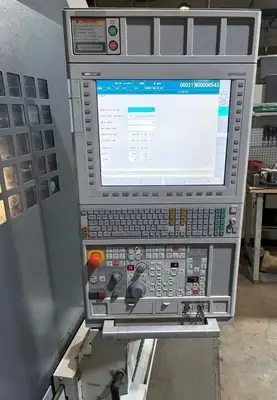

FANUC 21iTB CONTROL
25”, 3-JAW SMW AUTOBLOK (630-BH-3) HYDRAULIC CHUCK
BIG BORE (6.5” BAR CAPACITY)
LONG BED (78.7” TURNING LENGTH)

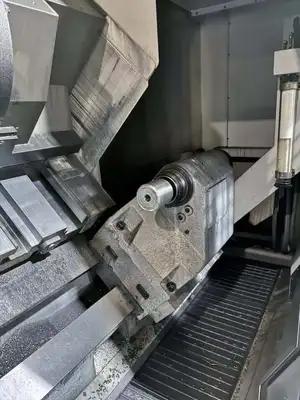

TAILSTOCK
CHIP CONVEYOR
GEARBOX
BOX WAYS
** AS OF JULY 2026, CUTTING TIME – 4,450 HOURS
** MACHINE CUT PRIMARILY MILD STEEL (1018)
This equipment is currently unavailable. Similar equipment available now is shown below.
