2019 HAAS CL-1
Have one to sell?
ConditionUsed
1 available

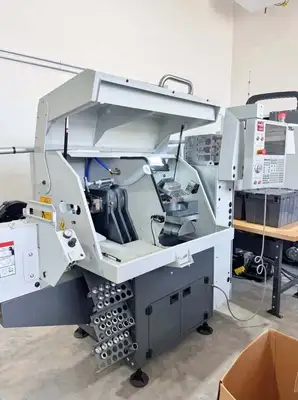

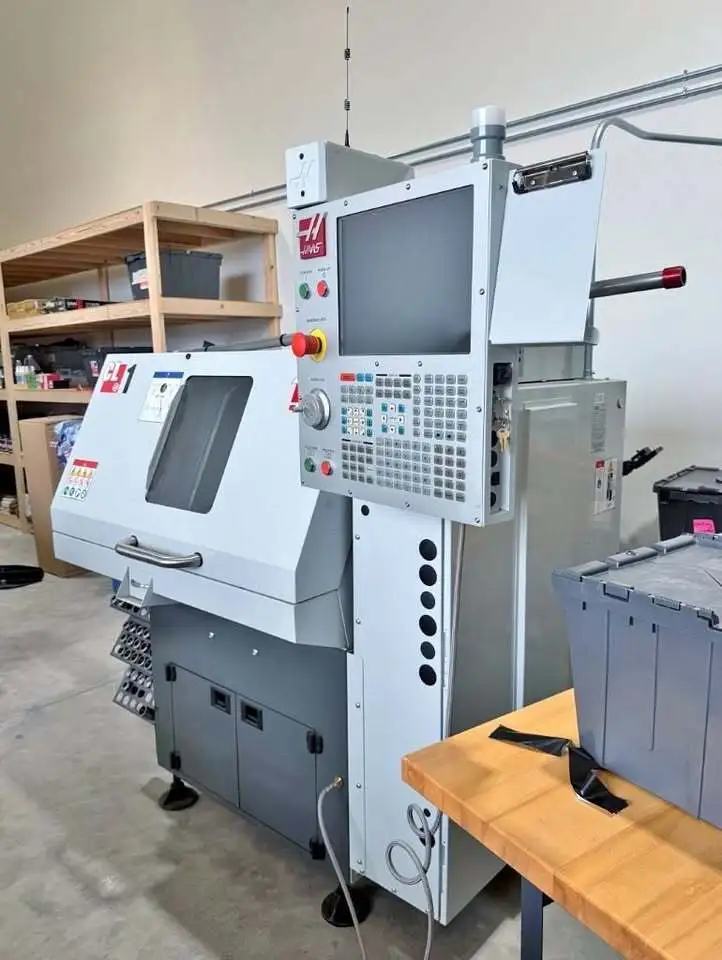

Used CNC Lathe, excellent used condition. Features: HAAS NEXTGEN control, 3.7 kW spindle motor, 6,000 RPM speed, live milling, 8-station tool turret. Includes bar feeder, parts catcher, WiFi, and tool holders. Cutting time: 2 hours.
SWING OVER BED 279.4 mm
MAX CUTTING DIAMETER 127 mm
X-AXIS TRAVEL 304.8 mm
Z-AXIS TRAVEL 203.2 mm
CHUCK SIZE 101.6 mm
BAR CAPACITY 25.4 mm
SPINDLE BORE 31.75 mm
SPINDLE NOSE 5C COLLET TYPE
SPINDLE MOTOR 3.7 kW
SPINDLE SPEED 6,000 RPM
TURRET CAPACITY 8
LIVE MILLING Yes
LIVE MILLING SPEED 6,000 RPM
HAAS NEXTGEN CONTROL
BAR FEEDER (6’)
LIVE TOOLING WITH C-AXIS (6,000 RPM)
DUAL ER-11 SPINDLES
5C COLLET NOSE
8-STATION TOOL TURRET
PARTS CATCHER SYSTEM
WINDOW AIR BLAST
COOLANT PUMP KIT
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTION
HAASCONNECT: REMOTE MONITORING
AN ASSORTMENT OF TOOL HOLDERS & COLLETS INCLUDED

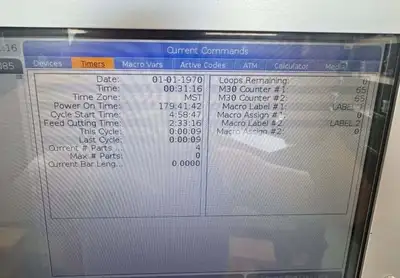

** AS OF JULY 2026, CUTTING TIME – 2 HOURS
