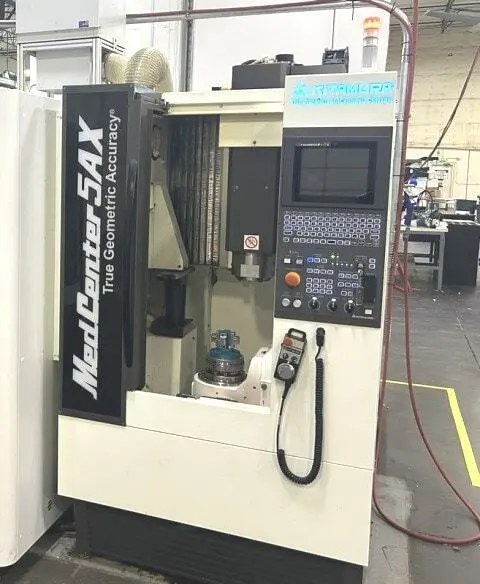

Travels:
X-Axis: 10″
Y-Axis: 13″
Z-Axis: 13″
A-Axis: -120 to + 120 Degrees
C-Axis: 0 to 360 Degrees
Table Size: 6.7″ Diameter
Max Table Load: 44 lbs
Rapid Traverse
X/Y-Axis: 2,362 IPM
Z-Axis: 1,969 IPM
A-Axis: 36,000°/min
C-Axis: 72,000°/min
Positioning Accuracy: ±0.000079″
Repeatability: ±0.000039″
Spindle:
Speed: 300-30,000 RPM
Taper: HSK-E40
Power: 469 HP
Dimensions: ~91.7″ W x 116.1″ L x 97.2″ H
Weight: ~9,900 LBS
Integrated Trunnion Rotary Table
Arumanik Mi Control
Renishaw NC4+ Blue F115C Probe
120 ATC

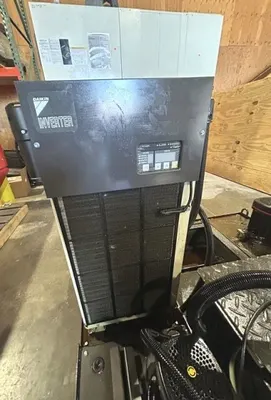

Spindle Oil Cooler
Chip Conveyor (Scraper Type)
This equipment is currently unavailable. Similar equipment available now is shown below.
