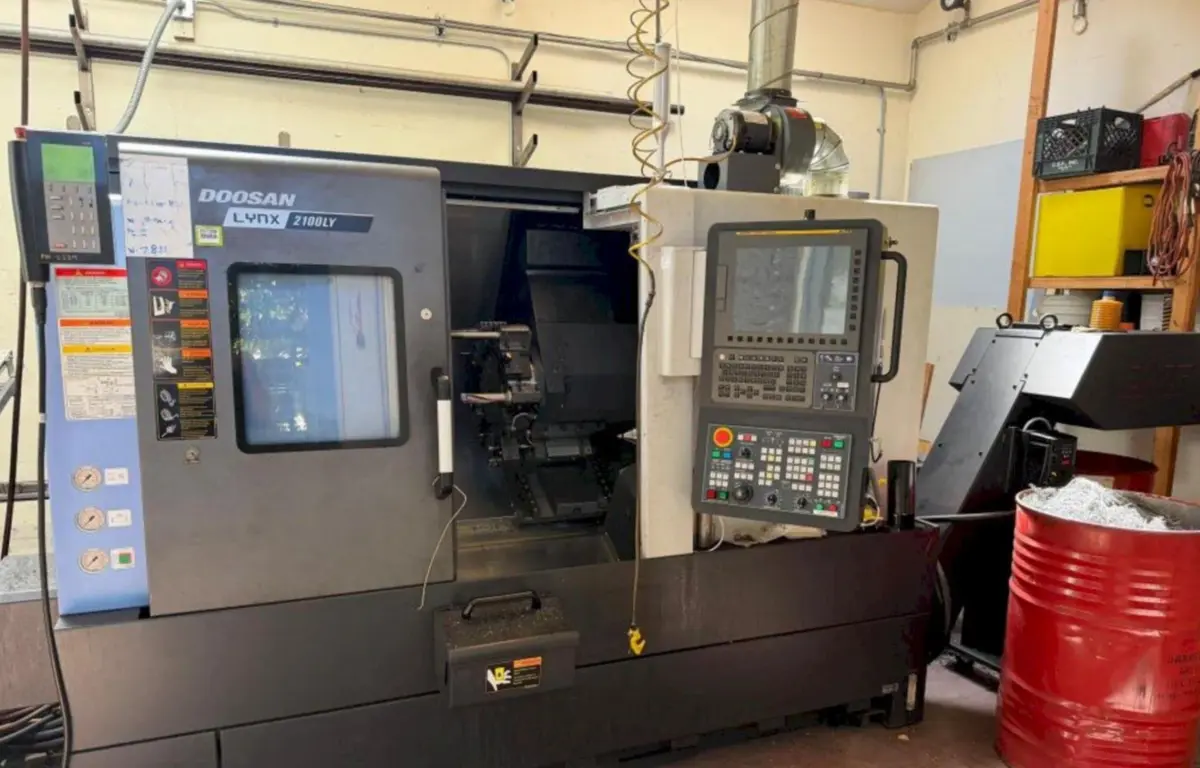

# Axis 4
Swing 23.6 in 599.44 mm
Turning Diameter 11.8 in 299.72 mm
Center Distance 20.1 in 510.54 mm
Chuck Size 8 in 203.20 mm
Bar Capacity 2.6 in 66.04 mm
X Axis Travel 8.1 in 205.74 mm
Y-Axis Travel 4.1" | ± 2.1"
Z Axis Travel 22 in 558.80 mm
C Axis Index 0.001°
Rapid Traverse (X/Y/Z) 1181/393/1418 ipm
Spindle Nose A2-6
Spindle Speed 4,500 rpm
Main Motor 20 hp
Live Tooling yes
Live Tooling Speed 6000 rpm
Live Tooling Motor 5 hp
Turret Capacity 12 12
Machine Dimensions 114" x 68" x 76"
Machine Weight 9000 lb 4,082.33 kg

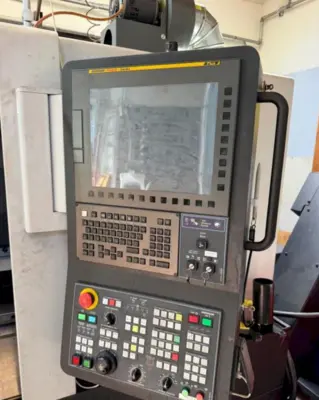

- Fanuc Doosan CNC Control

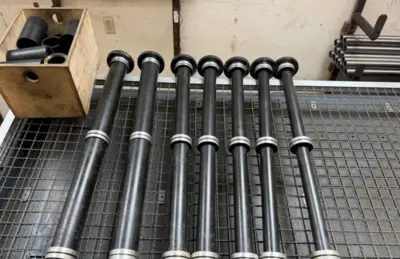

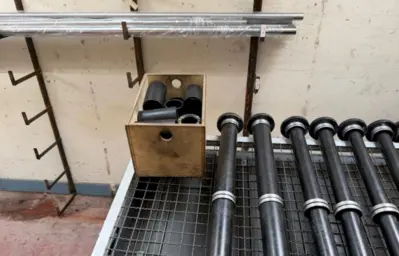

- LNS Quick Load Servo Bar Feeder
- LNS Chip Conveyor
- Coolant Tank
- Parts Catcher
- Tool Presetter
- Live Tooling
- Y Axis
- Programmable Tailstock

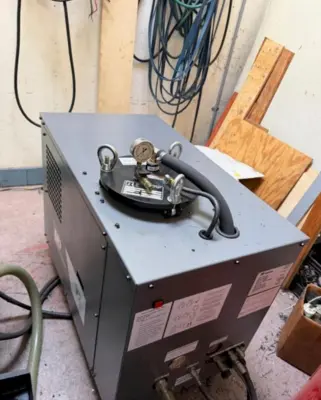

- MP Systems High Pressure Coolant Unit
This equipment is currently unavailable. Similar equipment available now is shown below.
