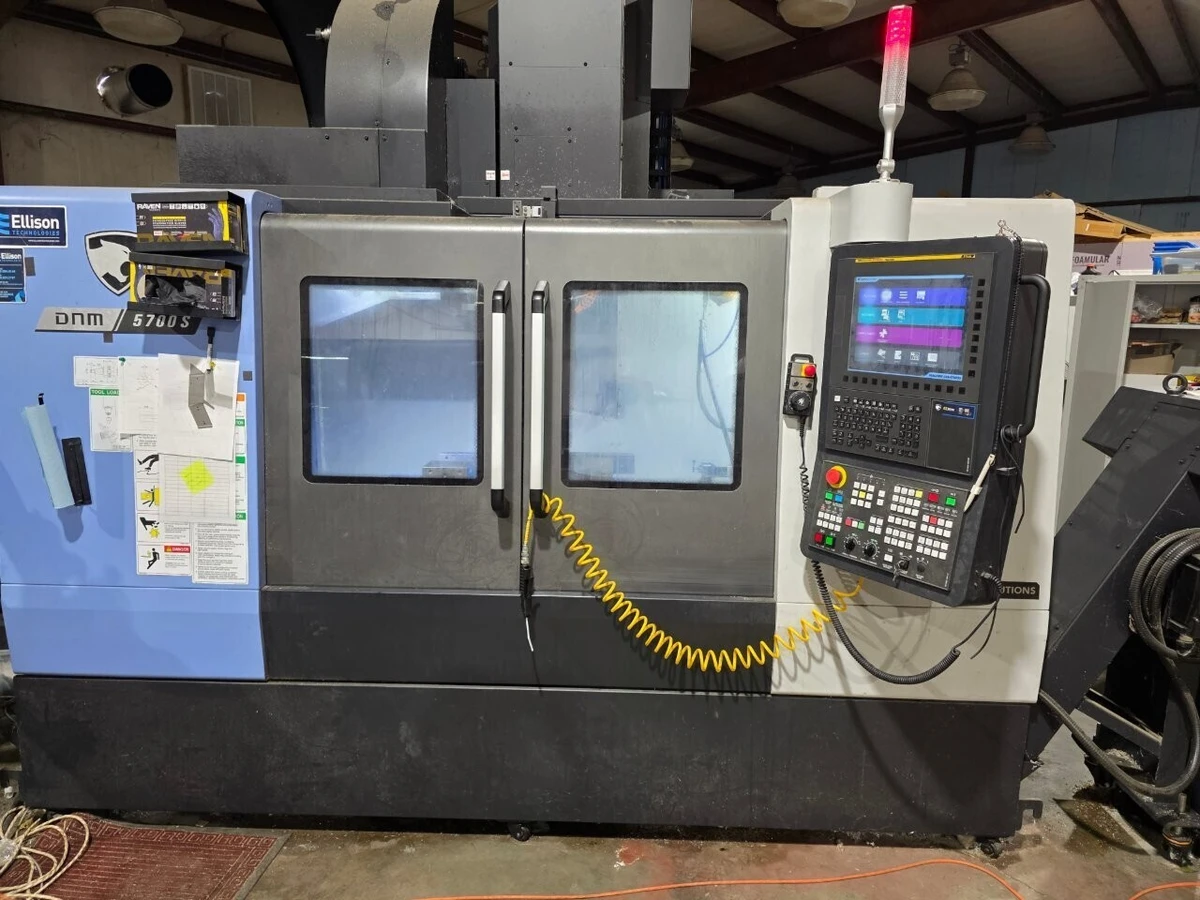

2022 DOOSAN DNM 5700S
Have one to sell?
ConditionUsed
1 available
Used vertical machining center features X/Y/Z travel of 41.3"/22.4"/20", 25 HP motor, 15,000 RPM spindle, and 40 ATC. Includes tool presetter, LNS chip conveyor, and more. Table size 51.2" x 22.4", max load 2,205 lbs.
X-Axis Travel: 41.3"
Y-Axis Travel: 22.4"
Z-Axis Travel: 20"
Spindle Motor: 25 HP
Spindle Speed (Max): 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Rapid Rate (X, Y, Z): (1,653 IPM; 1,653 IPM; 1,417 IPM)
Table Size: 51.2 IN x 22.4 IN
Table Load (Max): 2,205 LBS
Power Requirement: 220V / 3PH
Tool Presetter, Lns Chip Conveyor, 15,000 RPM Spindle, Through Spindle Coolant, High Speed Machining
