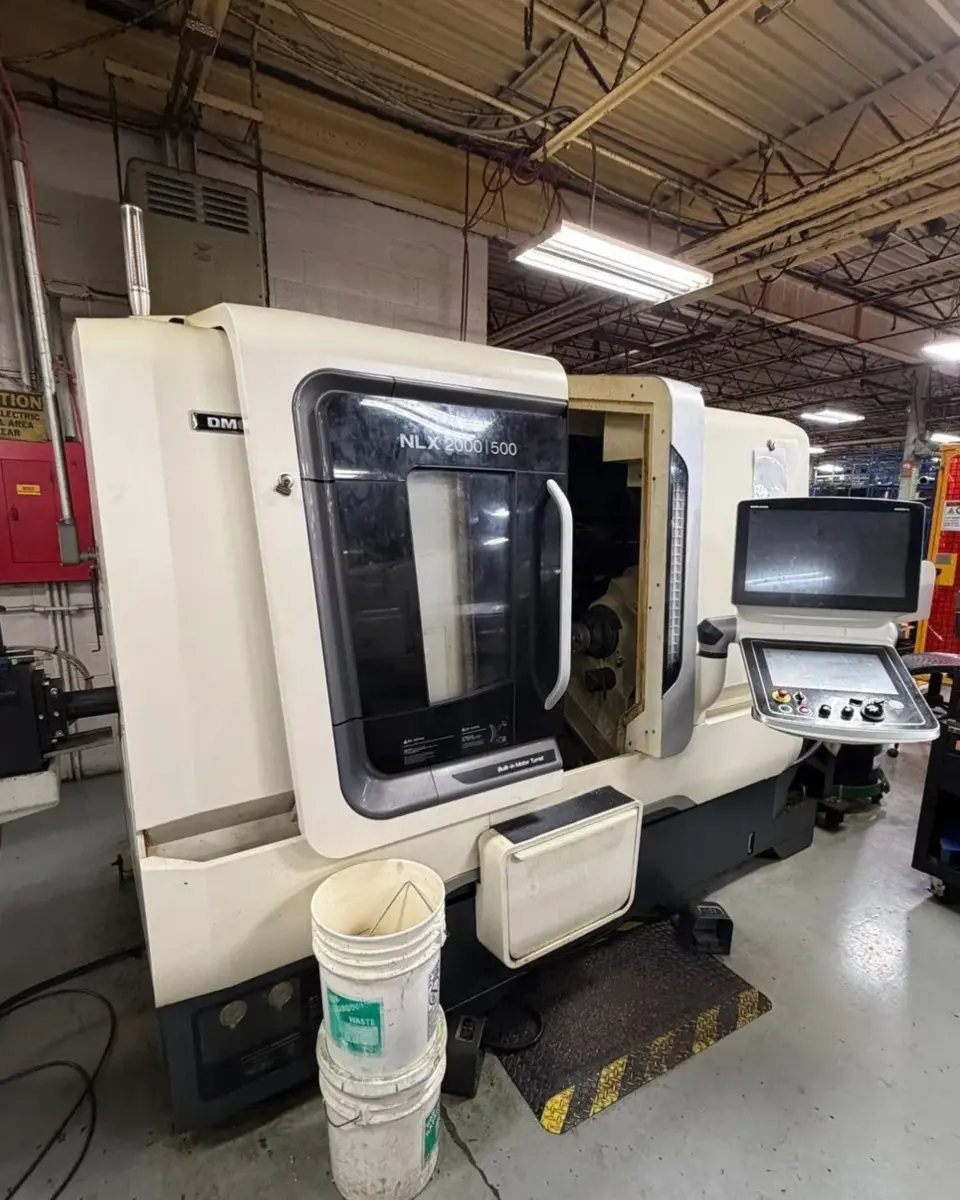

2019 DMG MORI NLX-2000SY/ 500
Have one to sell?
ConditionUsed
1 available
Used 5-axis lathe with 29.7" swing, 20.2" machining length, 8" chuck, and 6,000 RPM max. Included FMB barloader, LNS conveyor, high pressure unit, mist collector, and tooling. 20 hp motor and 2" bar capacity.
Max. X-axis travel: 10.2 in.
Max. Y-axis travel: 3.9 in.
Max. Z-axis travel: 23.2 in.
Max. workpiece diameter: 15.2 in.
Max. workpiece length: 20.3 in.
Max. bar diameter: 2 in.

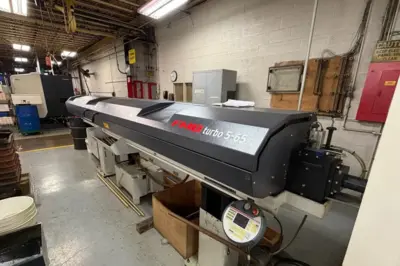

FMB Magazine Barloader
LNS Chip Conveyor
High Pressure Unit
Mist Collector
Misc Tooling
Used 5-axis lathe with 29.7" swing, 20.2" machining length, 8" chuck, and 6,000 RPM max. Included FMB barloader, LNS conveyor, high pressure unit, mist collector, and tooling. 20 hp motor and 2" bar capacity.
Imperial
| # Axis | 5 |
| Swing | 29.7" |
| Machining Length | 20.2" |
| Chuck Size | 8" |
| Bar Capacity | 2" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 14.4" |
| Tailstock | No |
| Dimensions | 140.2" X 82" X 84.4" |
| Weight | 11,880 LBS |
Max. X-axis travel: 10.2 in.
Max. Y-axis travel: 3.9 in.
Max. Z-axis travel: 23.2 in.
Max. workpiece diameter: 15.2 in.
Max. workpiece length: 20.3 in.
Max. bar diameter: 2 in.
FMB Magazine Barloader
LNS Chip Conveyor
High Pressure Unit
Mist Collector
Misc Tooling
