2022 DMG MORI NLX-1500SY/500
Have one to sell?
ConditionUsed
1 available

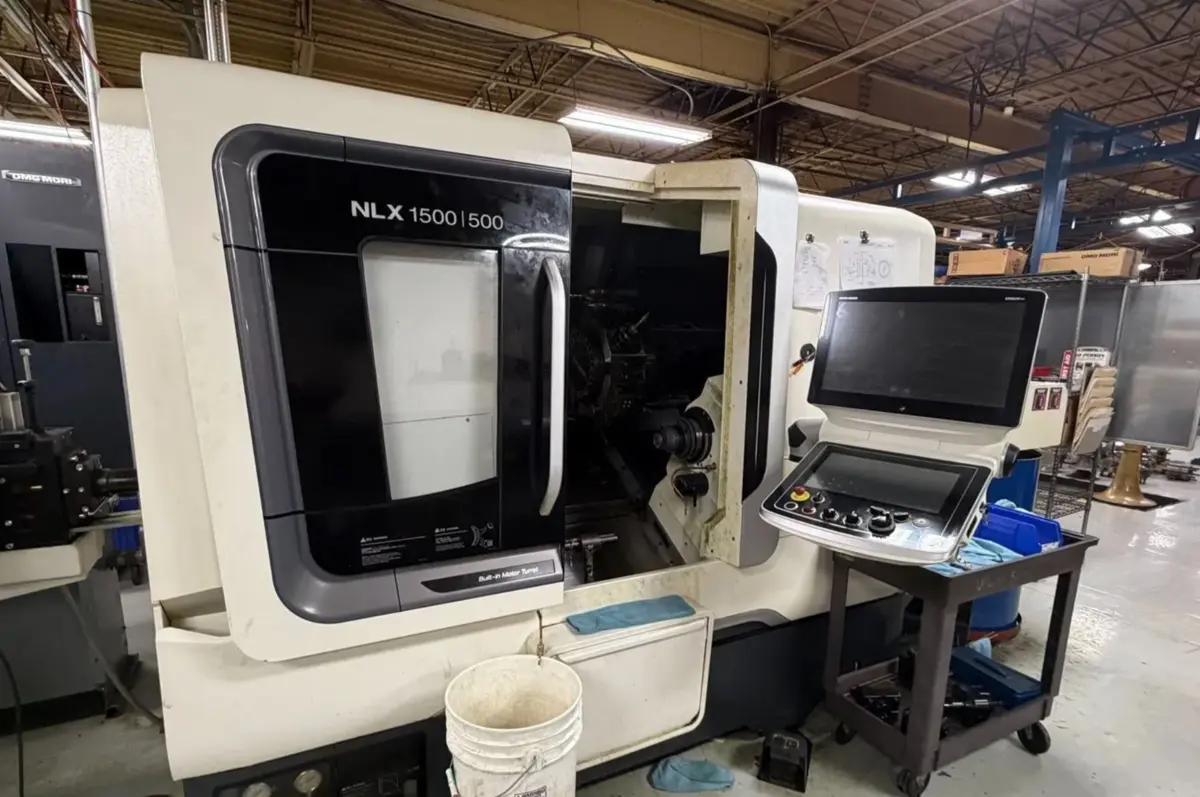

Used 5-axis lathe. Features 29.7" swing, 20.2" machining length, 20 hp, and 6,000 RPM max. Equipped with FMB barloader, LNS chip conveyor, high-pressure unit, mist collector, and misc tooling.
Max. X-axis travel: 10.2 in.
Max. Y-axis travel: 3.9 in.
Max. Z-axis travel: 23.2 in.
Max. workpiece diameter: 15.2 in.
Max. workpiece length: 20.3 in.
Max. bar diameter: 2 in.

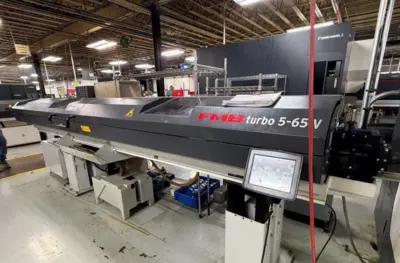

FMB 12ft Magazine Barloader
LNS Chip Conveyor
High Pressure Unit
Mist Collector
Misc Tooling
Used 5-axis lathe. Features 29.7" swing, 20.2" machining length, 20 hp, and 6,000 RPM max. Equipped with FMB barloader, LNS chip conveyor, high-pressure unit, mist collector, and misc tooling.
Imperial
| # Axis | 5 |
| Swing | 29.7" |
| Machining Length | 20.2" |
| Chuck Size | 6" |
| Bar Capacity | 2" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 14" |
| Tailstock | No |

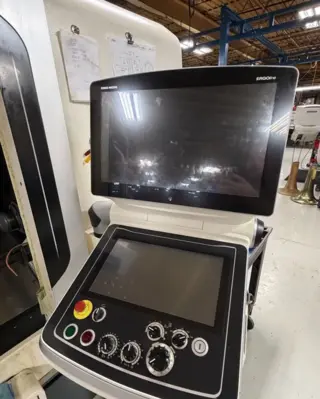

| Control | CNC (DMG MORI) |
| Dimensions | 140.2" X 82" X 84.4" |
| Weight | 11,880 LBS |
Max. X-axis travel: 10.2 in.
Max. Y-axis travel: 3.9 in.
Max. Z-axis travel: 23.2 in.
Max. workpiece diameter: 15.2 in.
Max. workpiece length: 20.3 in.
Max. bar diameter: 2 in.
FMB 12ft Magazine Barloader
LNS Chip Conveyor
High Pressure Unit
Mist Collector
Misc Tooling
