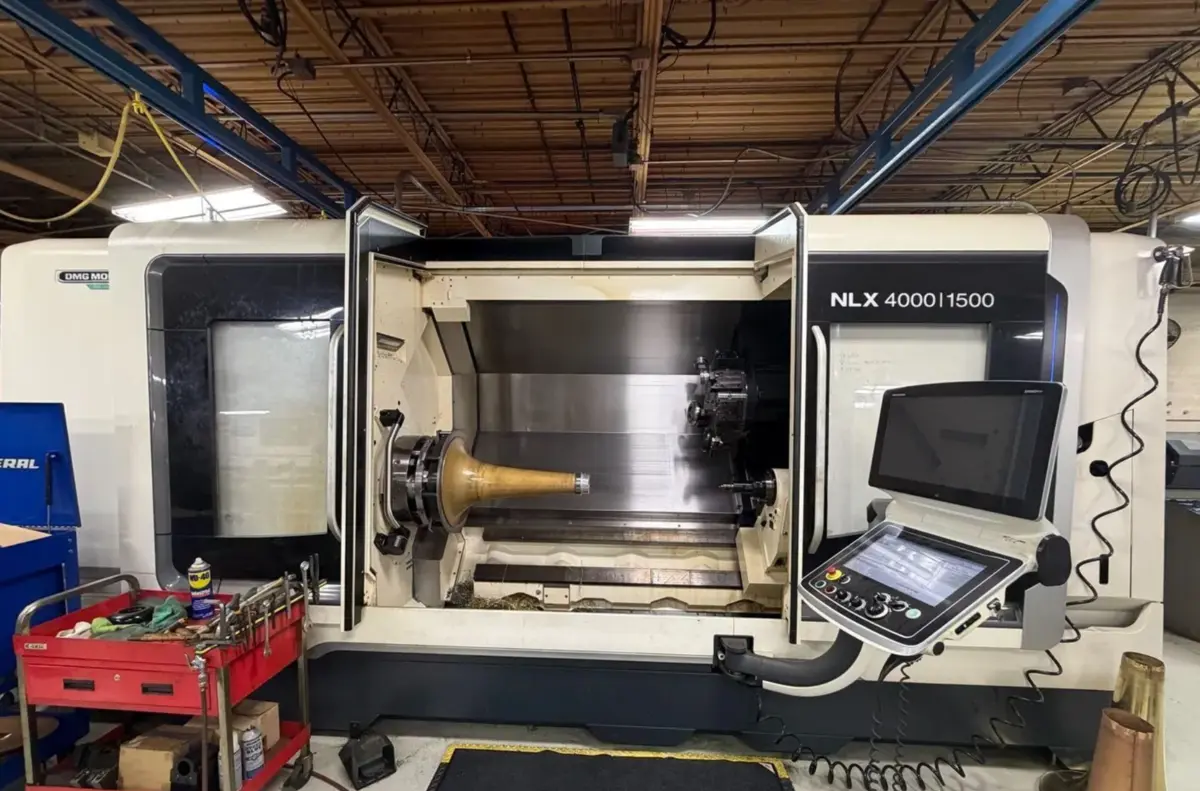

2022 DMG MORI NLX 4000/1500

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
Multi-Axis CNC Lathes
Manufacturer:
DMG MORI
Model:
NLX 4000/1500
Year:
2022
Stock #:
X3X4265
Status:
For Sale

Description

Used Multi-axis CNC lathe. Features 39.4" swing, 61.1" length, 4-axis, 18" chuck, 4.6" bar capacity, 50hp, 2000 RPM, and 19.6" turning diameter. Includes tailstock and live tooling.

Swing39.4"1,000.8 mm
Machining Length61.1"1,551.9 mm
# Axis44
Chuck Size18"457.2 mm
Bar Capacity4.6"116.84 mm
Power50 hp37.3 kW
Max RPM2,000 RPM2,000 RPM
Turning Dia19.6"497.84 mm
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
Weight30,500 LBS30,500 LBS

Swing 39.4"
Turning Diameter 19.6"
Center Distance 61.1"
Chuck Size 18"
Bar Capacity 4.6"
X Axis Travel 12.8"
Y Axis Travel 4.7"
Z Axis Travel 66.3"
C Axis Index 0.001°
Spindle Nose A2-15
Spindle Speed 2,000 rpm
Main Motor 50 hp
Live Tooling Speed 4,000 rpm
Live Tooling Motor 13.3 hp
Turret Capacity 12
Machine Weight 30,500 pounds

Tailstock
Live Tooling
