Axis Travel
X-Axis 1,050 mm / 41.3″
Y-Axis 570 mm / 22.4″
Z-Axis 460 mm / 18.1″
Spindle
Max Spindle Speed 15,000 RPM
Max Spindle Power ~37 kW (~50 hp)
Taper / Tool Interface BT-40 / ISO #40
Table/Work Envelope
Table Size (L × W) 1,300 × 570 mm (51.2″ × 22.4″)
Max Workpiece Weight 1,000 kg (2,205 lb)
Table to Spindle Nose 610 mm
Machine FootPrint
Length (121.3″)
Width (100.8″)
Height (113.8″)
Weight ~7,500 kg (16,535 lb)

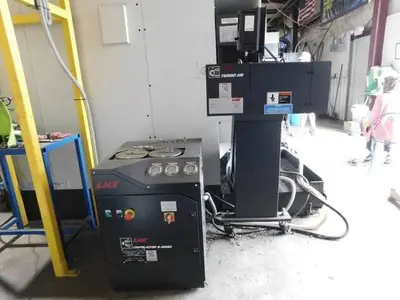

Chip Blaster
Renishaw Probe
This equipment is currently unavailable. Similar equipment available now is shown below.
