Swing Over Bed: 23.6" (599.44 mm)
Max Cutting Diameter: 11.8" (299.72 mm)
Max Cutting Length: 20.1" (510.54 mm)
X-Axis Travel: 8.1" (205.74 mm)
Y-Axis Travel: 4.1"
Z-Axis Travel: 22" (558.8 mm)
C-Axis: Full C-Axis Indexing
Chuck Size (Main): 8" (203.2 mm)
Bar Capacity: 2.6" (66.04 mm)
Spindle Bore: 3" (76.2 mm)
Spindle Nose: A2-6
Spindle Motor: 20 HP (14.9 kW)
Spindle Speed: 4,500 RPM
Sub Spindle Chuck Size: 5" (127 mm)
Sub Spindle Bore: 1.7" (43.18 mm)
Sub Spindle Motor: 5 HP (3.7 kW)
Sub Spindle Speed: 6,000 RPM
Turret Capacity: 24 Tool Positions
Turret Type: BMT45
Live Milling Speed: 6,000 RPM

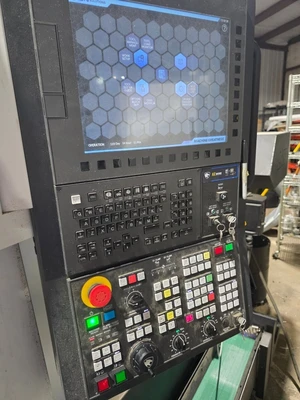

Fanuc I-Series CNC Control With Touchscreen, Sub Spindle, Y-Axis, Live Milling, Full C-Axis, 8" Main Spindle Chuck , 5" Sub Spindle Chuck (New), Renishaw Rp3 Tool Setting Probe, Tool Presetter, Parts Catcher, External Parts Conveyor, Lns Turbo Chip Conveyor, Coolant System, Work Light, USB Port
This equipment is currently unavailable. Similar equipment available now is shown below.
