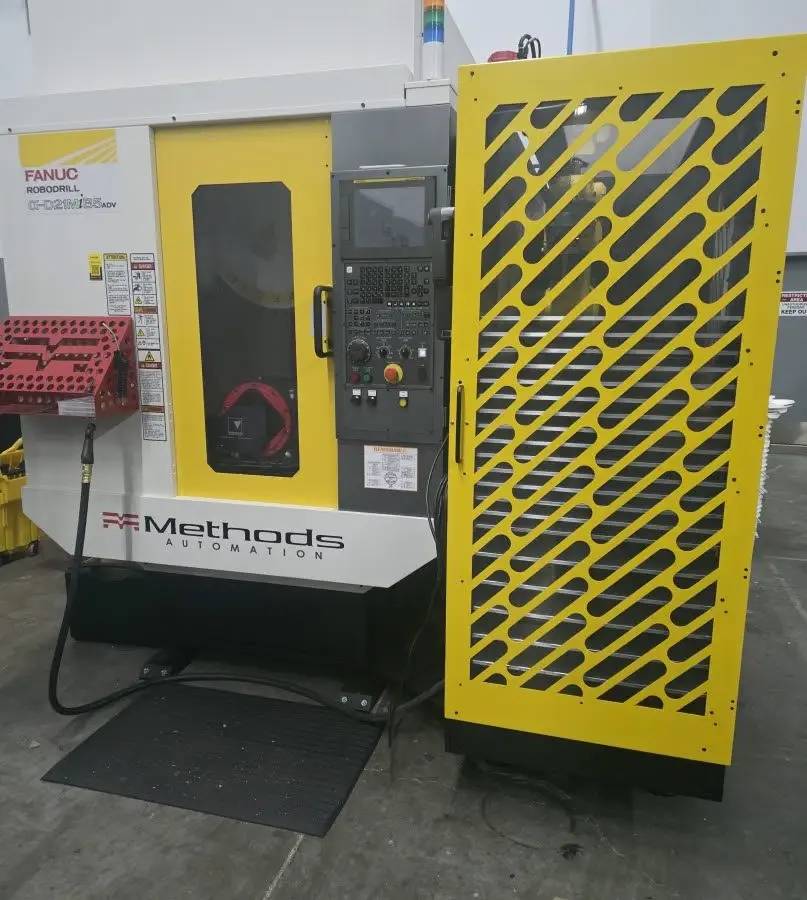

2021 FANUC ROBODRILL ALPHA D21MIB5 ADV
Have one to sell?
ConditionUsed
1 available
2021 FANUC ROBODRILL ALPHA D21MIB5 ADV with 19.69" x 15.75" travel and 24,000 RPM spindle speed. Features a 21 ATC, 1,000 PSI coolant, and Fanuc 31iB5 control. Equipped for 5-axis tasks. Machine weight: 4,000 lbs.
X-Axis Travel 19.69"
Y-Axis Travel 15.75"
Z-Axis Travel 15.75"
Spindle Speed 24,000 RPM
Spindle Taper BT 30
Tool Magazine Capacity 21 ATC
Coolant 1,000 PSI High Pressure Coolant
Rapid Traverse All Axes 2125 IPM
Cutting Feed (Programmable) 1181 IPM
Max Tool Length 9.84"
Max Tool Diameter 3.93"
Max Table Load 880 Lbs
Machine Weight 4000 Lbs

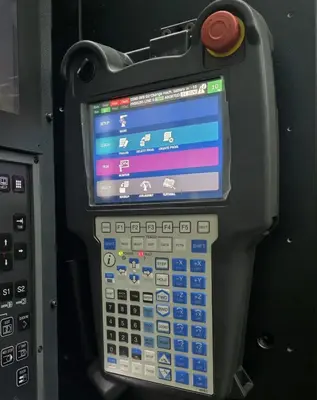

Control Fanuc 31iB5
Base Pallet Plus-E (15)
CC Scraper LH+ Tank

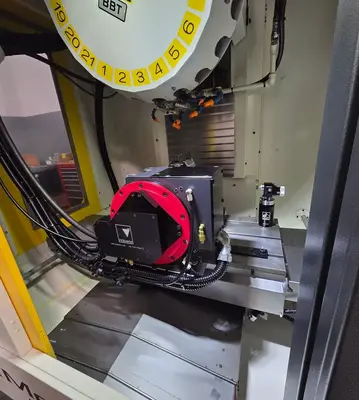

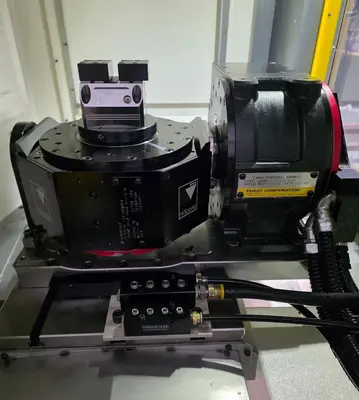

DTTiB Double Torque 5 Axis Table
Fanuc Package B – High Speed 5 Axis DiB5
Plus-E Accessories Kit Prepped
RMP400 + RTS HSS DiB5 Combo Probes

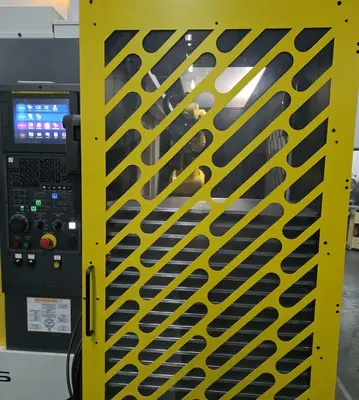

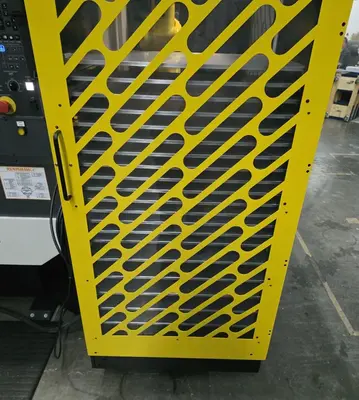

Robot Ready 100mm
