MITSUBISHI MV2400S
Have one to sell?
ConditionUsed
1 available

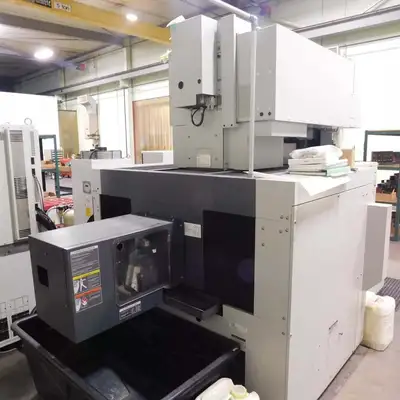

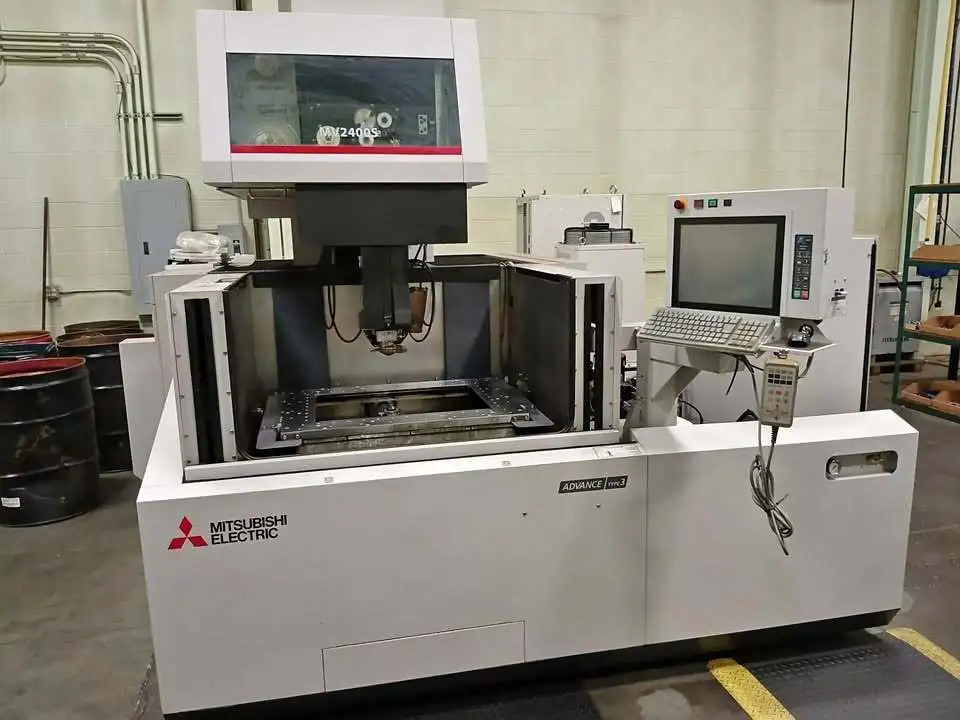

Used Wire EDM in excellent condition with 5,000 machining hours. Features: 33" x 22" table, Mitsubishi M800 CNC, auto threading, 3307 lb max workpiece weight. Dimensions: 106” x 119” x 84”, weight 7716 lbs.
Control.....................................Mitsubishi M800
Table-L.....................................33.0 in
Table-W.....................................22.0 in
Max Workpiece Length..........................41.3 in
Max Workpiece Width............................32.3 in
Max Workpiece Height..........................12.0 in
Max Workpiece Weight....................3307.0 lb
X-Axis (Longitudinal Travel).................23.6 in
Y-Axis (Cross Travel)................................15.7 in
Z-Axis (Vertical Travel)............................12.2 in
U-Axis Travel.............................................-2.95 in
V-Axis Travel.............................................-2.95 in
Max Taper Angle...................................15.0 deg
Wire Diameter Range................................0.0 in
Max Wire Feed Rate............................51.2 ipm
Max Cutting Speed..............................51.2 ipm
Dielectric Fluid Capacity...................227.0 gal
Internal Work Tank Height....................12.2 in
Auto Threading (Yes/No).............................Yes
Submerged (Yes/No).....................................Yes
Control..............................................CNC (M800)
Dimensions.............................106' x 119" x 84"
Weight.......................................................7716 lbs

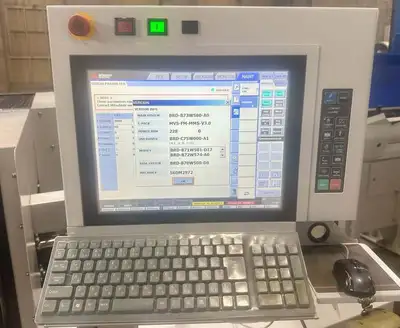

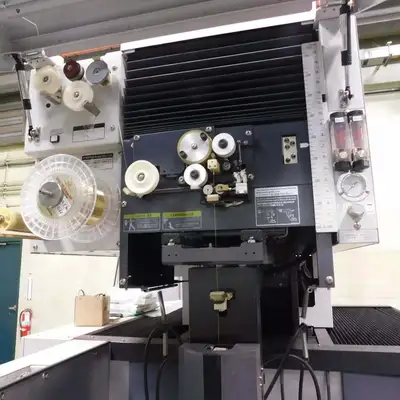

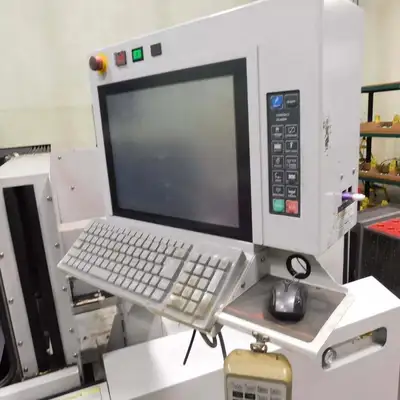

Mitsubishi M800 CNC Control, AT- Auto Threader, Tank capacity 227 gallons, Linear motion guide ways, Linear Glass Scale Feedback X-Y Axis, Excellent Condition- 5,000 Machining Hours.
