2016 DOOSAN DNM 350/5AX
Have one to sell?
ConditionUsed
1 available

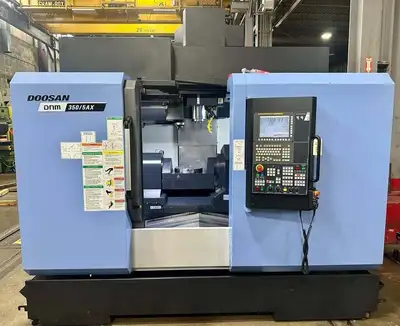

Used 5-axis vertical machining center with Fanuc CNC. Equipped with 13.8" trunnion table, 30 ATC, and Renishaw probe. Features 25 hp spindle, max 12,000 RPM.
# Axis…………………………………………………...…….5
Table Diameter………………………....…..…..13.8"
Table Load Capacity……..……………….551.1 lb
Workpiece Diameter…….……………………15.7"
Workpiece Height………………………….….13.2"
X-Axis (Longitudinal Travel)…………..23.622"
Y-Axis (Cross Travel)………….…………..25.787"
Z-Axis (Vertical Travel)……...……………19.685"
A-Axis (Trunnion Tilt Range) (±25°) .....+30° -120°
C-Axis Table Rotation Positioning………360°
Max Clearance Tabletop to Spindle Nose .....21.7"
Min Clearance Tabletop to Spindle Nose .....2"
Spindle Power………………………..…………25 hp
Max Spindle Speed……………...…12,000 RPM
Rapid Traverse Rate (X-Axis)...1,417 in/min.
Rapid Traverse Rate (Y-Axis)...1,417 in/min.
Rapid Traverse Rate (Z-Axis)...1,181 in/min.
Automatic Tool Changer Capacity (ATC)..30
Spindle Taper……...………….BIG PLUS CAT 40
Electrics……….………………………………220/3/60
Dimensions….……………….118" x 117" x 124"
Weight…………...………………………….18,739 lbs

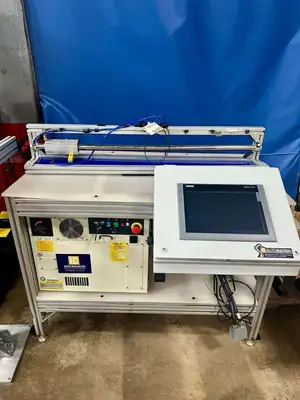

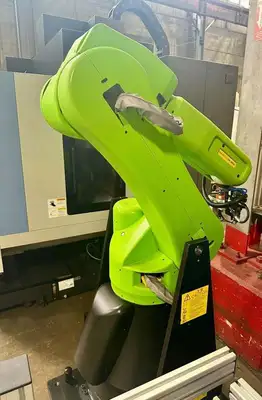

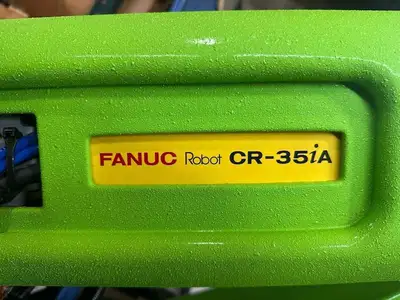

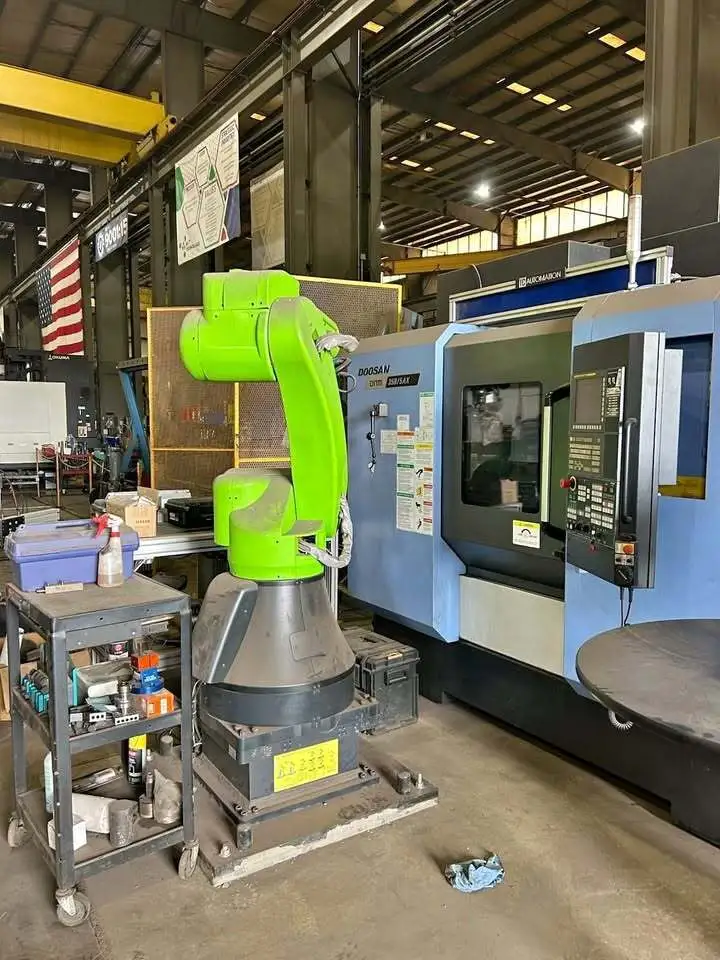

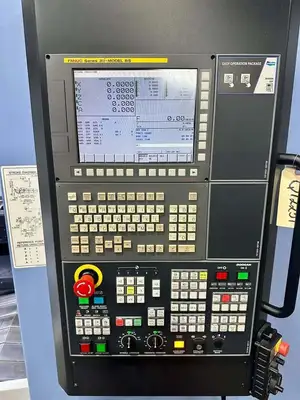

Fanuc i-Series CNC Control, 13.8″ Diameter Trunnion Table, Coolant through Spindle, 30 ATC, Tool Presetter, Renishaw Probe, Spindle Chiller Unit, PCMCIA Card Slot, Thermal Compensation, Spindle Orientation, Helical Interpolation, Rigid Tapping, Coolant System. Includes Fanuc Robot CR-35iA with Controller.
