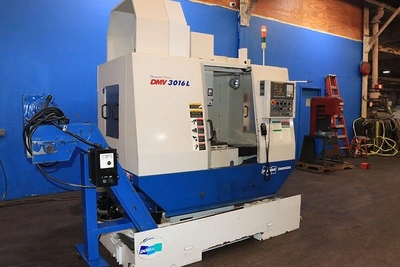

2006 DOOSAN DMV-3016L
Have one to sell?
ConditionUsed
1 available

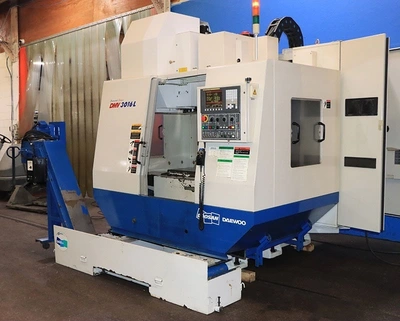

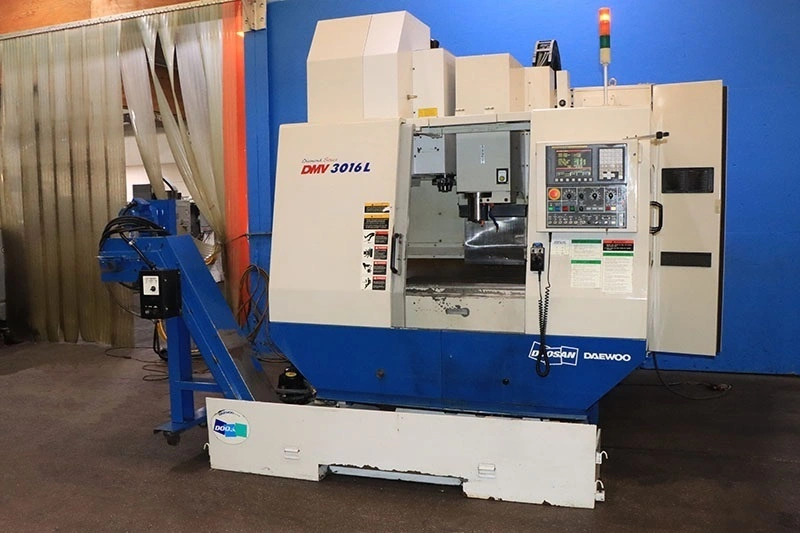

Vertical Machining Center, used, with 30"x16"x20" XYZ travel, 15 HP, 8,000 RPM, CAT-40 taper, and 30-tool ATC. Equipped with FANUC 0i-MC CNC control, portable MPG, and flood coolant. Efficient 3-axis machining solution.
X-AXIS TRAVEL........................... 30"
Y-AXIS TRAVEL........................... 16"
Z-AXIS TRAVEL........................... 20"
SPINDLE NOSE TO TABLE TOP............... 5.9" TO 26"
DISTANCE FROM SPINDLE CENTER TO COLUMN.. 18"

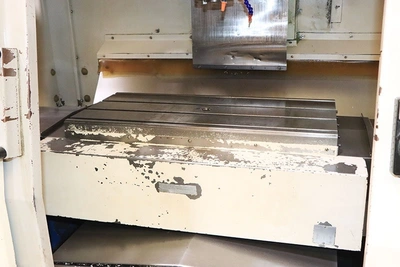

TABLE SIZE.............................. 16.9" X 36"
MAX TABLE LOAD.......................... 1,320 LBS
RAPID TRAVERSE RATES (X & Y/ Z)......... 1,400 / 1200 IPM
SPINDLE SPEEDS.......................... TO 10,000 RPM
SPINDLE MOTOR........................... 15 HP
SPINDLE TAPER........................... CAT 40
SIDE MOUNT AUTOMATIC TOOL CHANGER....... 30 POSITIONS
APPROX FLOOR SPACE REQUIRED....... 85" X 96" X 108.1" H
APPROX MACHINE WEIGHT................... 12,250 LBS

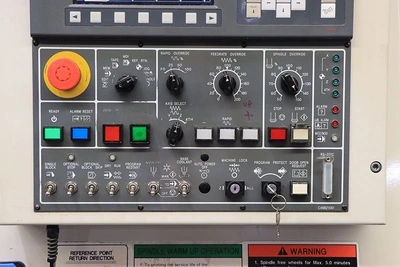

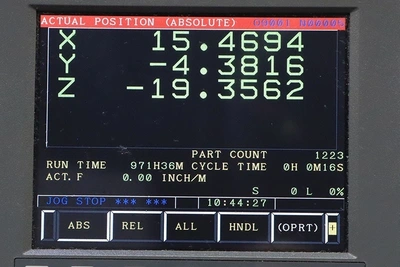

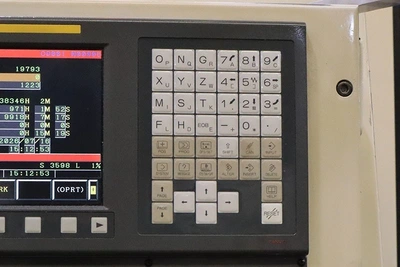

* FANUC 0i-MC SERIES CNC CONTROL

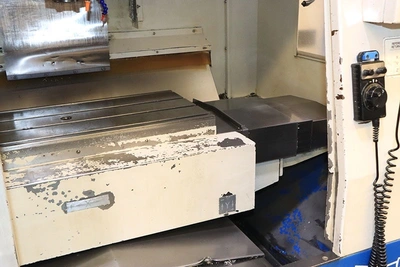

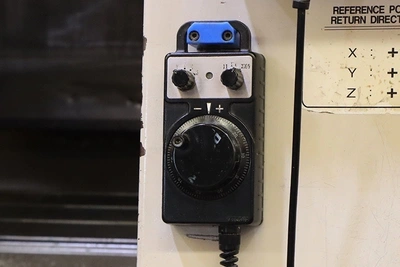

* PORTABLE MPG

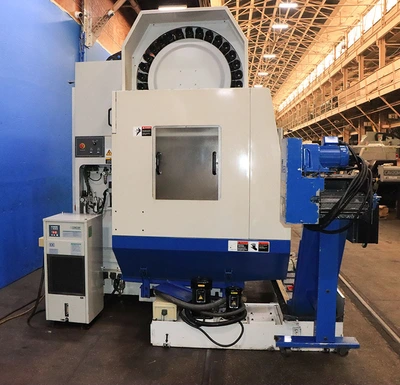

* 30 TOOL SIDE MOUNTED AUTOMATIC TOOL CHANGER

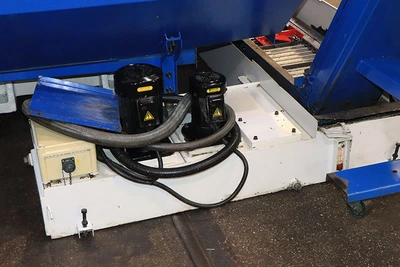

* COOLANT TANK AND CHIP PAN
* FLOOD COOLANT
* 15 HORSE POWER SPINDLE MOTO
