# Axis 5
Swing 29.7"
Machining Length 20.2"
Chuck Size 6"
Bar Capacity 2"
Power 20 hp
Max RPM 6,000 RPM
Dimensions 140.2" X 82" X 84.4"
Weight 11,880 LBS
Max. X-axis travel: 10.2 in.
Max. Y-axis travel: 3.9 in.
Max. Z-axis travel: 23.2 in.
Workpiece
Max. workpiece diameter: 15.2 in.
Max. workpiece length: 20.3 in.
Max. bar diameter: 2 in.

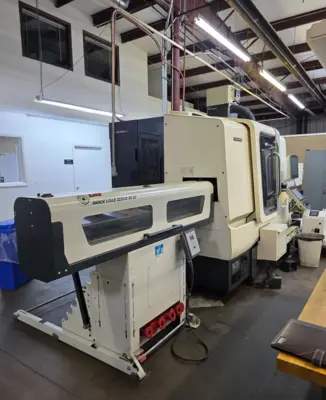

LNS Quick Load Servo 80 S2
LNS Chip Conveyor

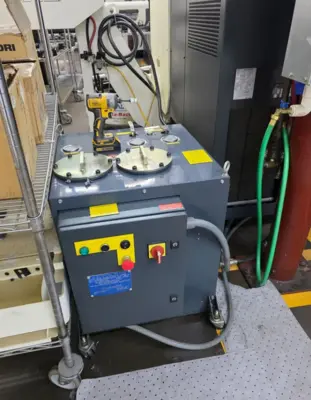

High Pressure Unit
Mist Collector
Misc Tooling
This equipment is currently unavailable. Similar equipment available now is shown below.
