2021 HAAS ST-10
Have one to sell?
ConditionUsed
1 available

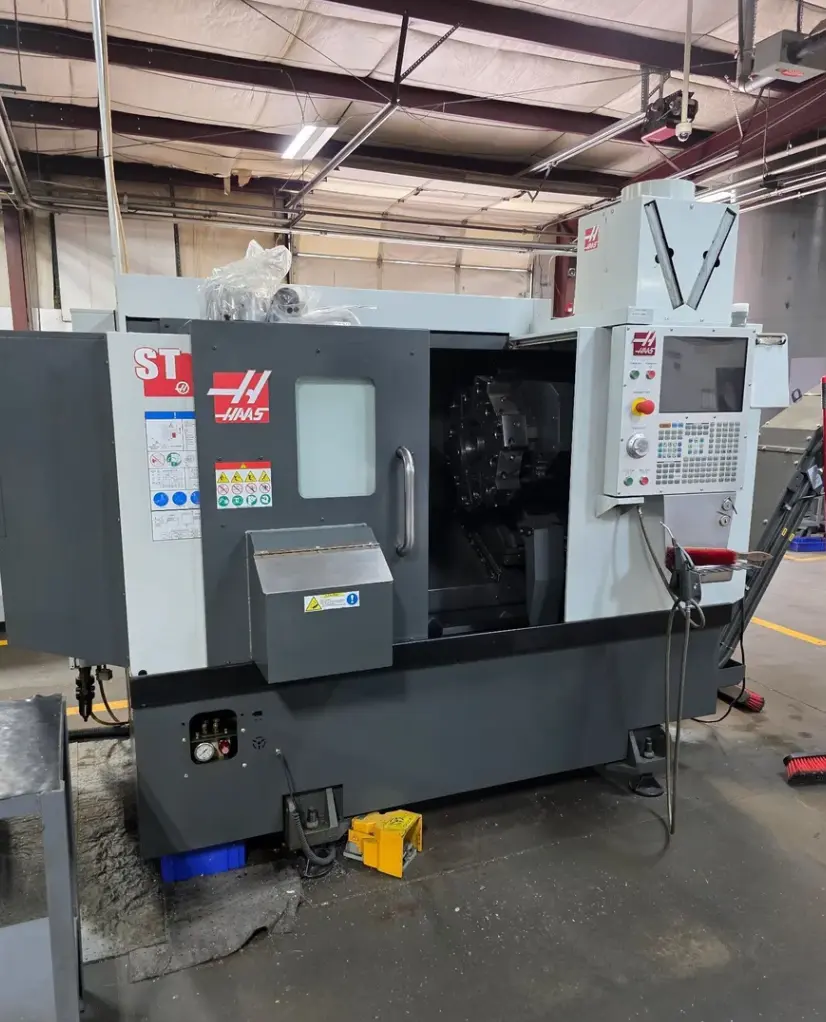

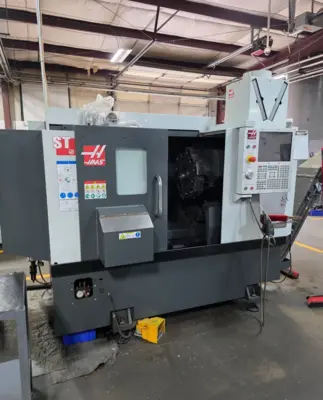

Used CNC Lathe featuring a 6.5" chuck, live milling C-axis, spindle speeds up to 6,000 RPM, and Haas NextGen control. Equipped with a chip conveyor and more.
Chuck Size 6.5" / 1.75" Thru hole
Maximum Swing 25.25"
Maximum Swing Over Cross Slide 16.25"
Maximum Machining Diameter 14"
Maximum Machining Length 14"
X-Axis Travel 7.88"
Z-Axis Travel 16"
Spindle Nose / Bore / Bar Capacity A2-5" / 2.31" / 1.75"
Spindle Speeds 6,000 RPM
Spindle Motor 15 HP
Number of Turret Positions 12 Bolt on Style Turret
Spindle Torque 75 ft/lbs.
Rapid Traverse Rates 1,200 IPM

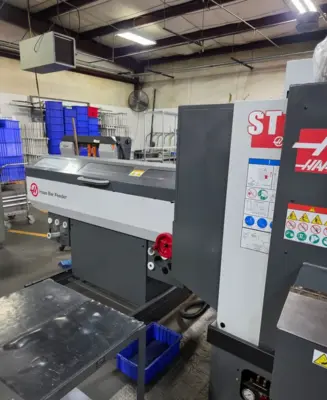

Haas Barfeed

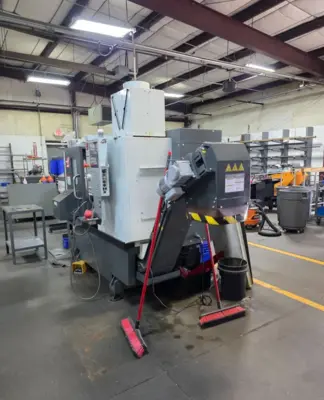

chip Conveyor
LIVE MILLING C-AXIS
parts catcher
tool presetter
list price new $119,500
Machine Control Haas NextGen Control
