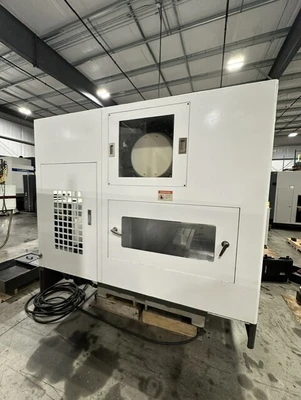

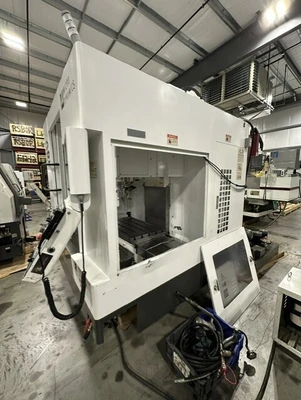

2018 MICRO DYNAMICS MEGA 30V
Have one to sell?
ConditionUsed
1 available

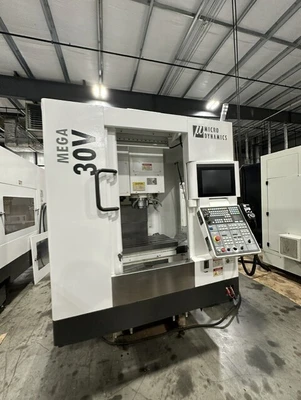

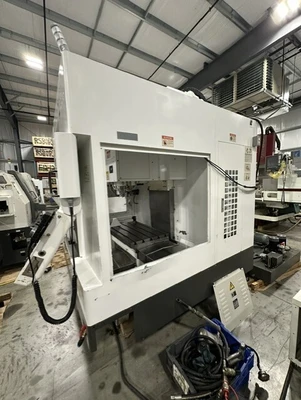

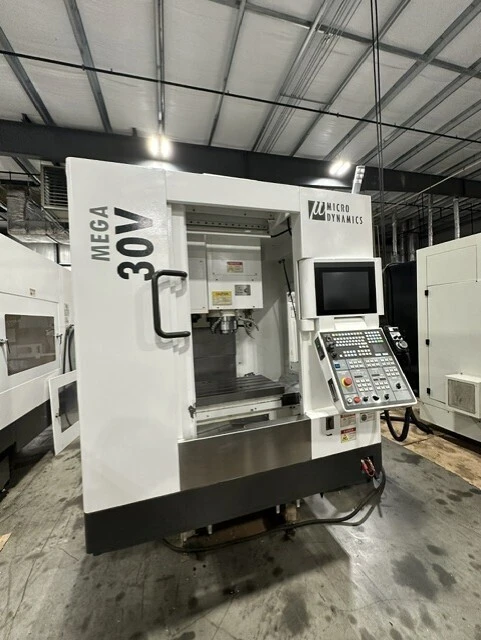

Used Vertical Machining Center: 41 HP, 15,000 RPM, 30-tool ATC, Mitsubishi CNC, 3-axis, 30" x 20" x 20" travel. Equipped with coolant system, twin chip augers, and scraper-type chip conveyor.
X Axis: 30 in.
Y Axis: 20 in.
Z Axis: 20 in.
Spindle Nose to Table: 3.9-24 in.

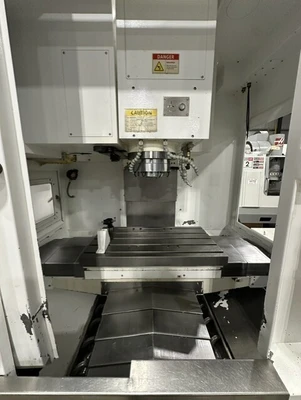

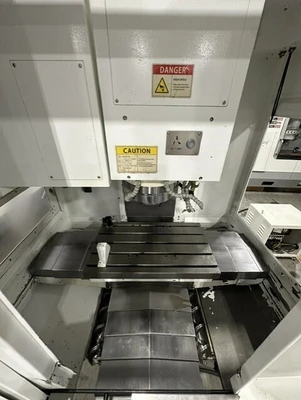

TABLE

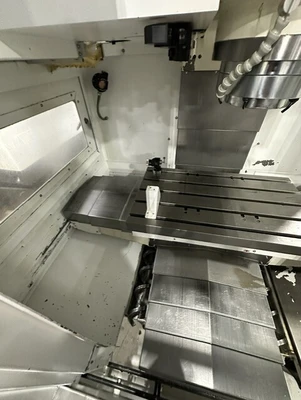

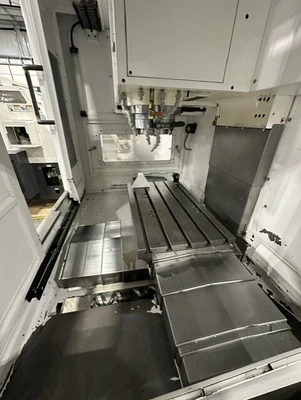

Table Size: 33.9 x 19.7 in.
Maximum Table Load: 1,764 lb
SPINDLE
Taper: 40 Taper
Speed: 50-15,000 RPM
Maximum Power: 41 HP
AUTOMATIC TOOL CHANGER
Capacity: 30 Tools
Tool Selection: Bi-Directional / Random
FEEDRATES
Rapid Traverse X/Y: 2,047 IPM
Rapid Traverse Z: 1,889 IPM
CONTROL

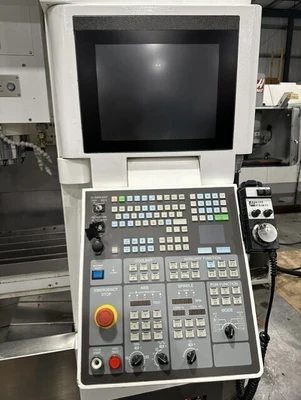

Mitsubishi CNC with Micro Dynamics HMI
GENERAL
Machine Footprint: 94.1 in. W x 88.4 in. D
Machine Height: 111.1 in.
Nameplate Weight: 4,920 kg / approx. 10,847 lb

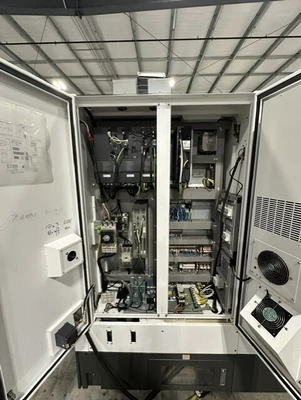

Electrical: 220V, 3-Phase, 60 Hz, 30 kVA

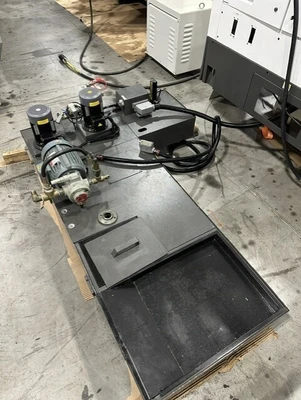

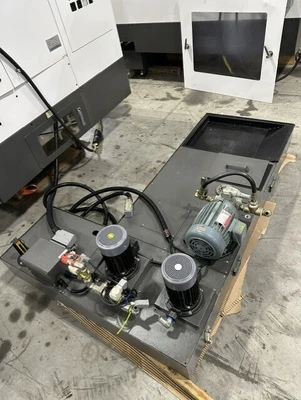

Coolant system with base wash
Twin chip augers

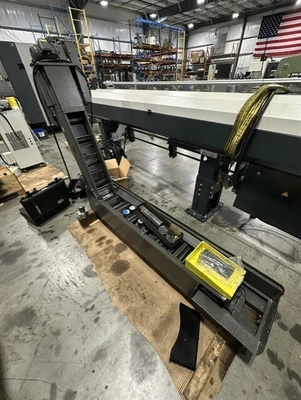

Scraper-type chip conveyor
