2022 SMART MACHINE TOOL SV-2 with 4th axis
Have one to sell?
ConditionUsed
1 available
2022 SMART MACHINE TOOL SV-2 used vertical machining center with 4th axis. Equipped with FANUC Oi-MF, chip conveyor, RENISHAW Probe, high-speed spindle, and more. 12,000 RPM spindle, 30-tool capacity, 950 operation hours.

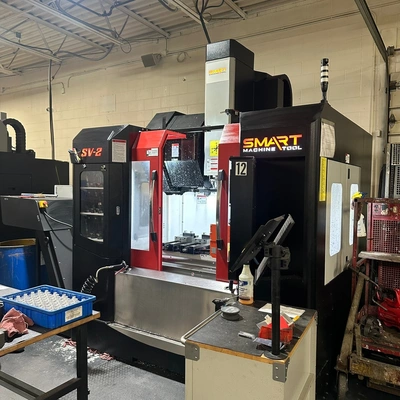

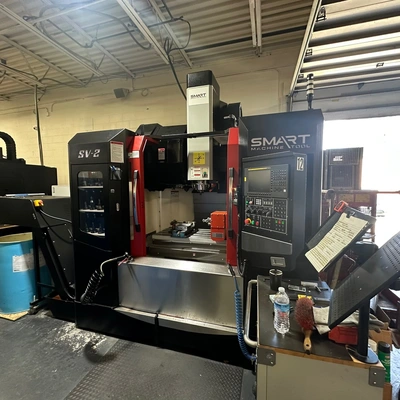

SMART SV2 CNC Vertical Machining Center
Year of manufacture: 2022
Purchased new in 2023
Table size: 19.6" x 39.2"
Table load capacity: 1,320 lbs.
X axis travel: 31.4"
Y axis travel: 19.6"
Z axis travel: 19.6"
Spindle speeds: 12,000 R.P.M.
Spindle taper: CAT-40
Spindle nose to table: 3.93" Min / 26.6" Max
Spindle distance to column: 22.04"

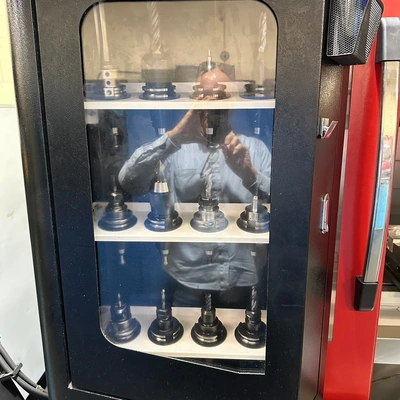

Side mount double arm tool changer: 30 tool capacity
XYZ Rapids: 1,890 I.P.M.
Cutting feed rate: 394 I.P.M.

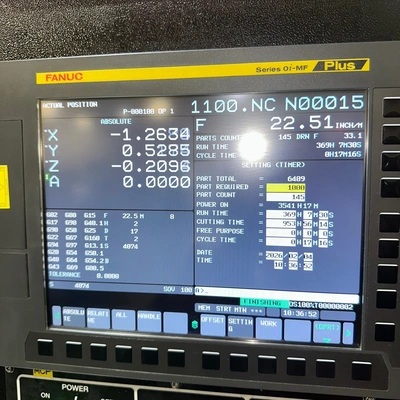

FANUC Oi-MF P 10.4" CNC Control

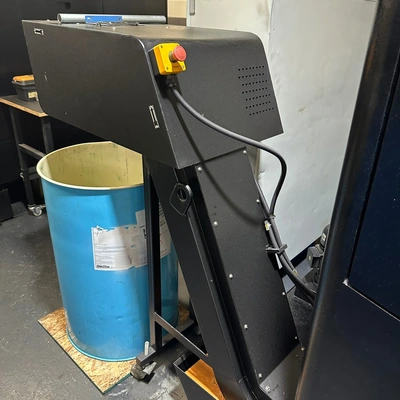

Chip conveyor
Machine hours - Operation time: 950 hours
Machine hours - Cutting time: 479 hours

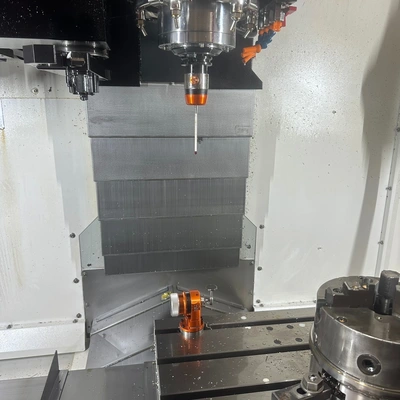

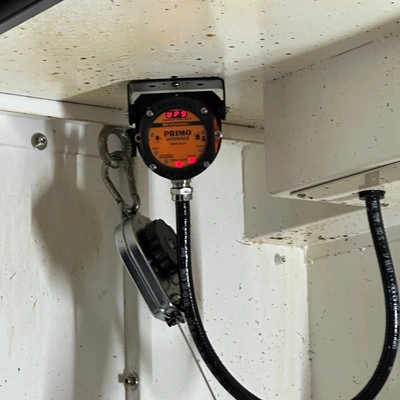

RENISHAW Probe & Receiver and Touch off
M.P.G. (Manual Pulse Generator)

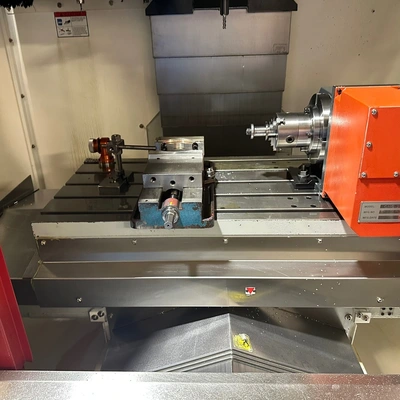

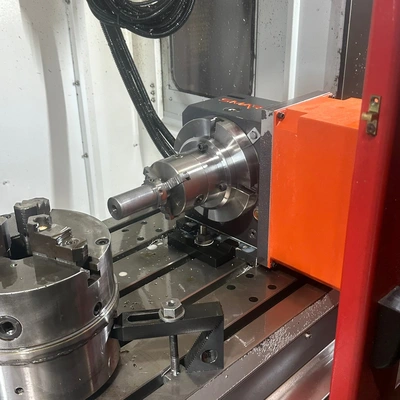

Full 4th axis with 6" Rotary Table
Spindle Chiller

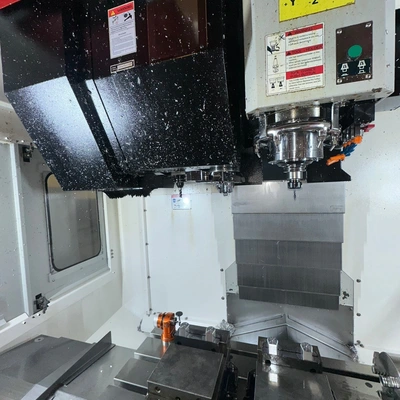

High Speed Spindle
200 Look ahead
Coolant bed
Flush Coolant through spindle, 290 P.S.I.
Rigid Tapping
3 Coolant Pump & Tank
25 H.P. Spindle motor
Wired for 220 volt / 3 phase / 60 Hz
Machine weight: 11,000 lbs.
Machine dimensions: 110" x 98" x 110"H
