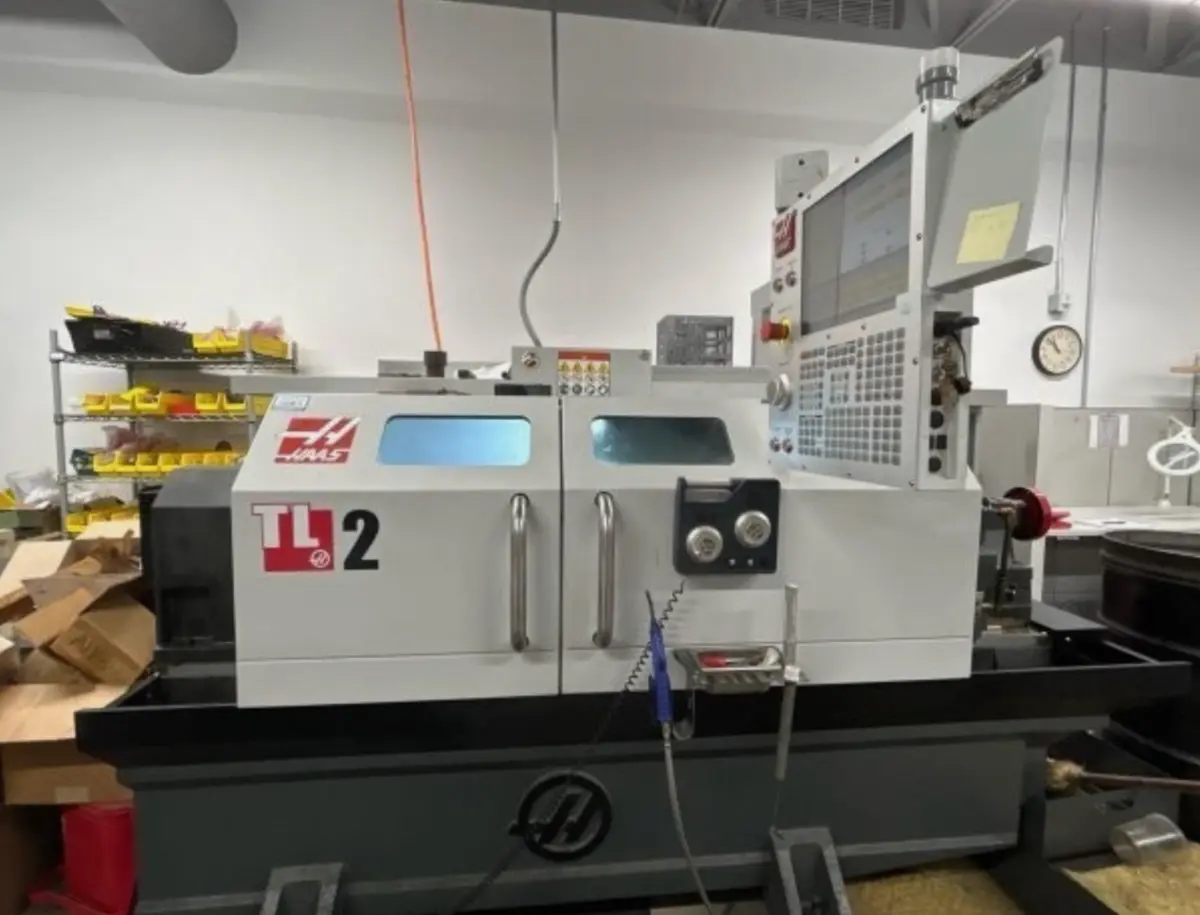

2020 HAAS TL-2

CNC Lathes
Manufacturer:
HAAS
Model:
TL-2
Year:
2020
Stock #:
X2X41911
Used CNC Lathe, equipped with HAAS CNC control, 1 GB memory, and Ethernet interface. Features 6.5" chuck, 8" x 48" travel, 10 HP spindle motor, up to 3000 RPM. Includes rigid tapping, full enclosure, and visual programming system.

CHUCK SIZE .............................................. 6.5"
MAX. CUTTING DIAMETER WITH 4-STATION TURRET ............. 8"
DISTANCE BETWEEN CENTERS ................................ 48"
X-AXIS TRAVEL ........................................... 8"
Z-AXIS TRAVEL ........................................... 48"
X AXIS RAPID TRAVERSE ................................... 450 IPM
Z-AXIS RAPID TRAVERSE ................................... 450 IPM
SPINDLE NOSE ............................................ A2-5
DRIVE SYSTEM ........................................... DIRECT DRIVE
SPINDLE MOTOR .......................................... 10 HP
SPINDLE SPEED .......................................... 3000 RPM
MAX TORQUE ............................................. 108 FT-LBF @ 355 RPM
SPINDLE BORE WITHOUT CHUCK AND DRAWBAR INSTALLED ....... 2.30"
AIR PRESSURE MIN ....................................... 80 PSI
MACHINE DIMENSIONS ..................................... 108" X 68.5" X 83"
MACHINE WEIGHT ......................................... 5380 LB

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

HAAS CNC CONTROL
1 GB MEMORY
ETHERNET INTERFACE
RIGID TAPPING
VISUAL PROGRAMMING SYSTEM
ELECTRONIC REMOTE HANWHEELS
FULL ENCLOSURE
AIR GUN
COOLANT TANK & PUMP
TAILSTOCK MT#4

This equipment is currently unavailable. Similar equipment available now is shown below.
