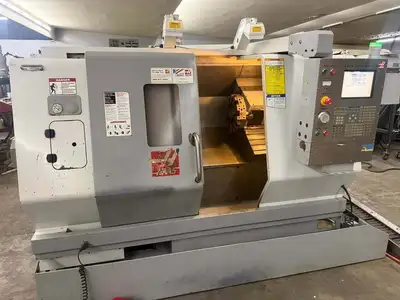

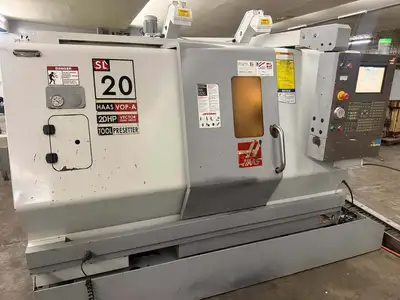

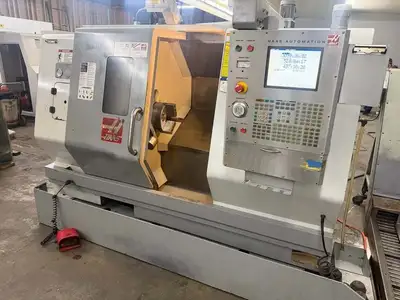

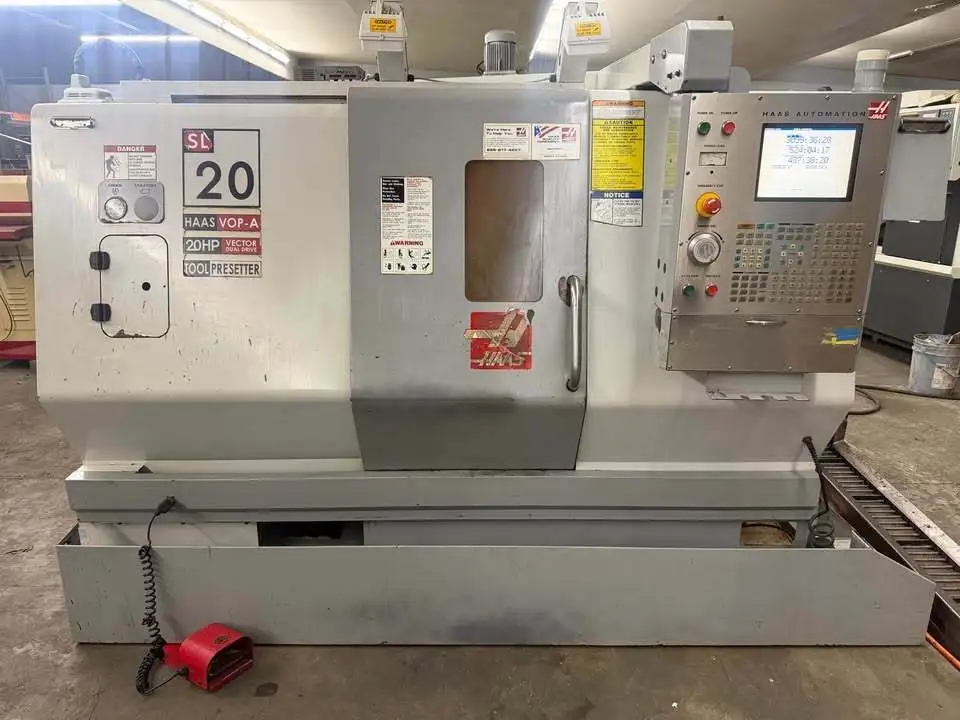

2006 HAAS SL-20

Swing : 23"
Machining Length : 24"
Chuck Size : 8"
Bar Capacity : 2"
Power : 20 hp
Max RPM : 4,000 RPM
Turning Dia : 10.3"
Swing over front apron- 23”
Swing over cross slide- 9.5”
Standard bar capacity- 2”
Maximum cutting diameter- 10.3”
Maximum cutting length- 20”
Maximum cutting length with standard workholding- 19”
Maximum spindle speed- 4,000 R.P.M.
Peak horsepower- 20 H.P.
Spindle nose- A2-6
Spindle bore- 3”
Draw tube bore- 2.06”
X-axis travel- 8.45”
Z-axis travel- 20’’
Rapid traverse rate- 1,200 I.P.M.
Number of stations in turret- 10
Tool size (OD turning)- 1”
Boring bar rear clearance (from turret face)- 4.37”
Index time (one tool)- 1 sec
