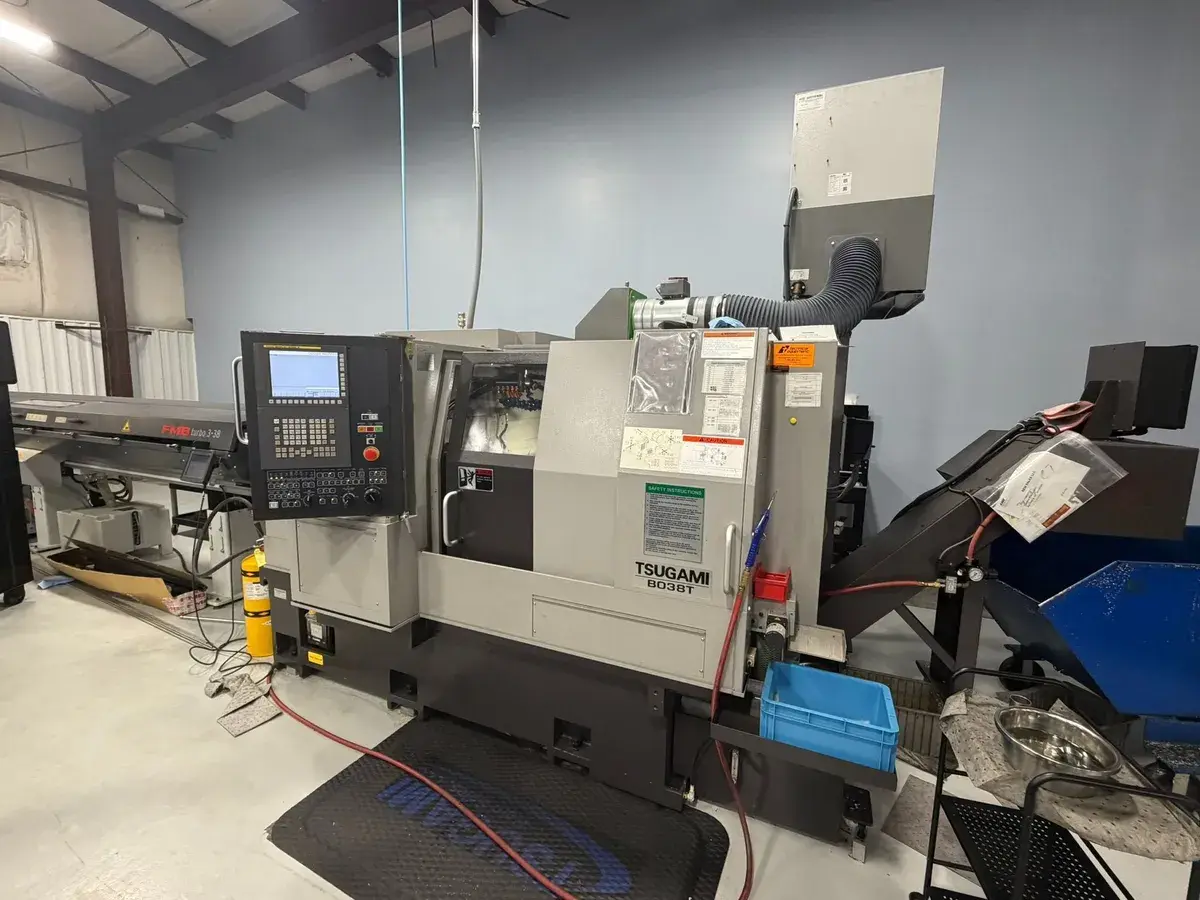

2022 TSUGAMI B038T

Swiss Type Automatic Screw Machines
Manufacturer:
TSUGAMI
Model:
B038T
Year:
2022
Stock #:
X3X4186

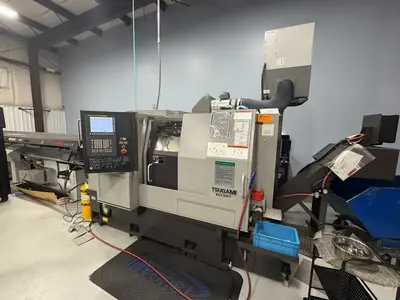

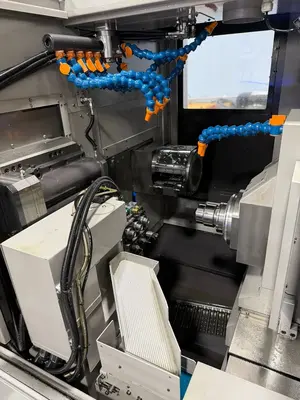

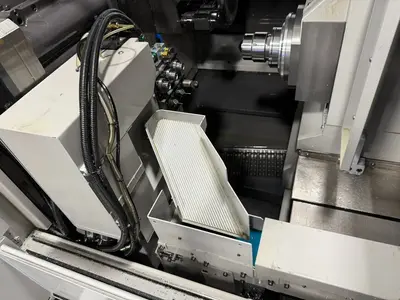

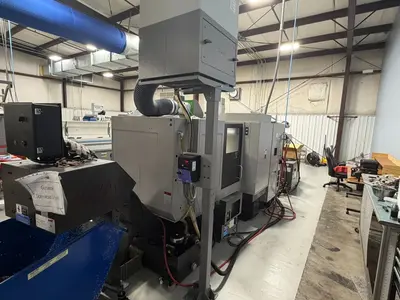

Used Swiss Type Automatic Screw Machine, used, features 38mm max bar stock, 45 tool positions, 5,000 rpm main spindle speed. Equipped with Fanuc 31i-B CNC, Turbo 3-38 Bar Feeder, Mist Collector, Chip Conveyor, among others. 13,669 lbs.

Maximum Bar Stock 38 mm / 1.5″

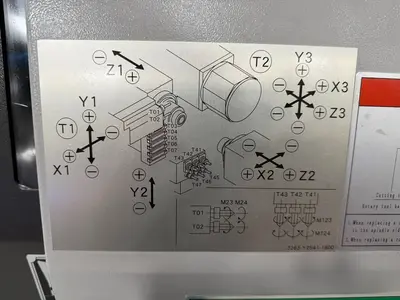

# Axes 9
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) NO
Max Headstock Stroke w/ Guide Bushing 250 mm / 9.84”
# Tool Positions (std / max) 45 max

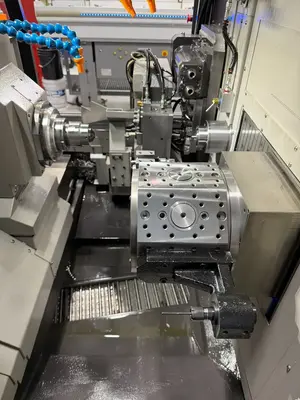

# Live Tool Positions (std / max) 8 Rotary Tools (Turret) 2 (Gang Slide)
Main Spindle Speed 200 – 5,000 rpm
Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 200 – 8,000 rpm
Main Spindle Motor 7.5 / 11 kW
Weight 6,200 kg / 13,669 lbs.
Footprint: W x D x H 3,247 × 1,875× 1,840 mm
134.9″ x 73.8″ x 72.4″

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

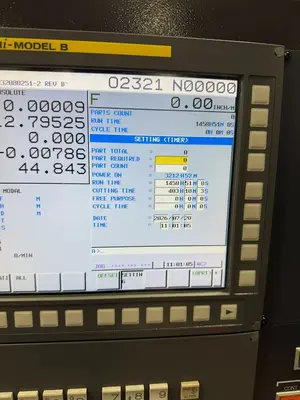

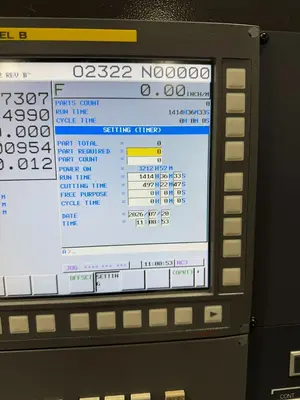

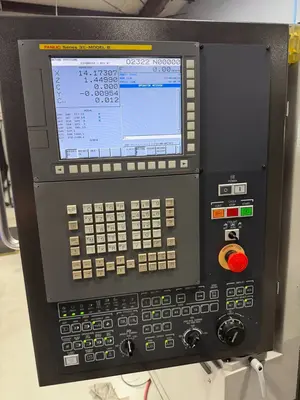

• Fanuc 31i-B CNC Control

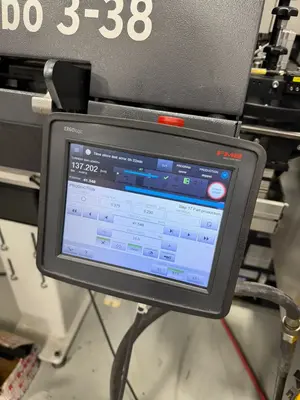

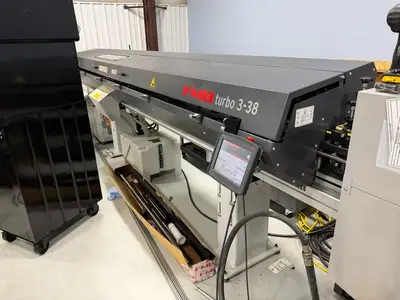

• FMB Turbo 3-38 Bar Feeder

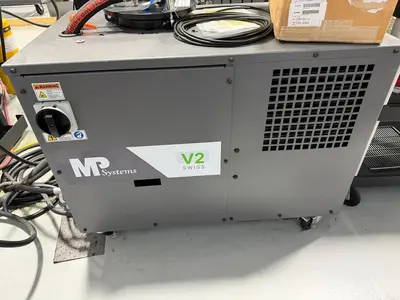

• MP Systems High Pressure Coolant, 2,000 PSI

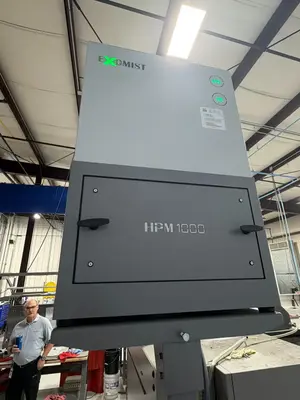

• Exomist HPM1000 Mist Collector

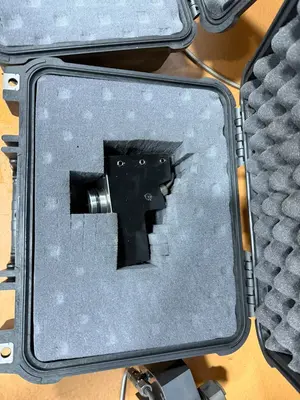

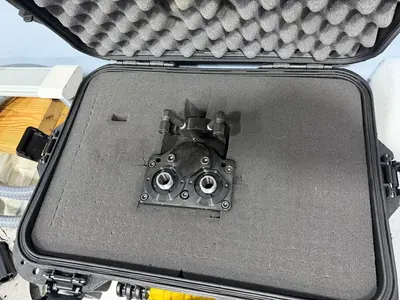

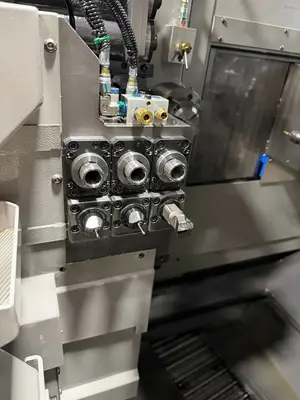

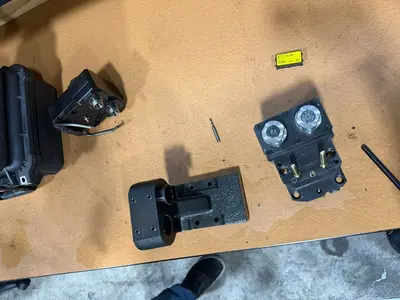

• (5) Double Drilling Head Live Tools for Turret

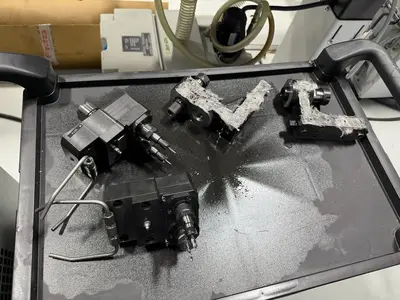

• Various Static Tool Holders for Turret
• LNS Turbo Micro Hinge Chip Conveyor
• Program Storage Upgrade, 64k to 2Mb
• (3) Linear Scales for High Precision
• Air Oil Check Valve
• Additional Air Blast for Ejection Rod
• Air Blast by M-Code

This equipment is currently unavailable. Similar equipment available now is shown below.
