SWING OVER BED 551.18 mm
MAX CUTTING DIAMETER 289.56 mm
MAX CUTTING LENGTH 500.38 mm
X-AXIS TRAVEL 203.2 mm
Z-AXIS TRAVEL 579.12 mm
CHUCK SIZE 254 mm
BAR CAPACITY 76.2 mm
SPINDLE BORE 85.852 mm
SPINDLE NOSE A2-8
SPINDLE MOTOR 18.6 kW
SPINDLE SPEED 3,500 RPM
TURRET CAPACITY 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
DOOSAN-FANUC i SERIES CONTROL
LNS QUICK LOAD SERVO 80 S2 MAGAZINE BAR FEEDER (5’)
LIVE MILLING

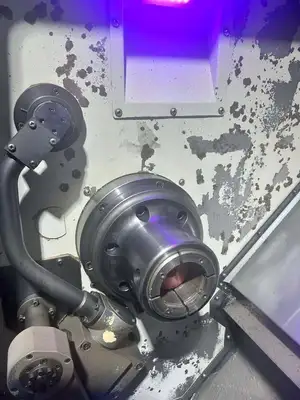

COLLET CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
BOX WAYS
(6) LIVE TOOL HOLDERS
** AS OF JULY 2026, CUTTING TIME – 3,506 HOURS
** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
This equipment is currently unavailable. Similar equipment available now is shown below.
