| Swing | 21.1" | 535.94 mm |
| Machining Length | 20.7" | 525.78 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 12.6" | 320.04 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |

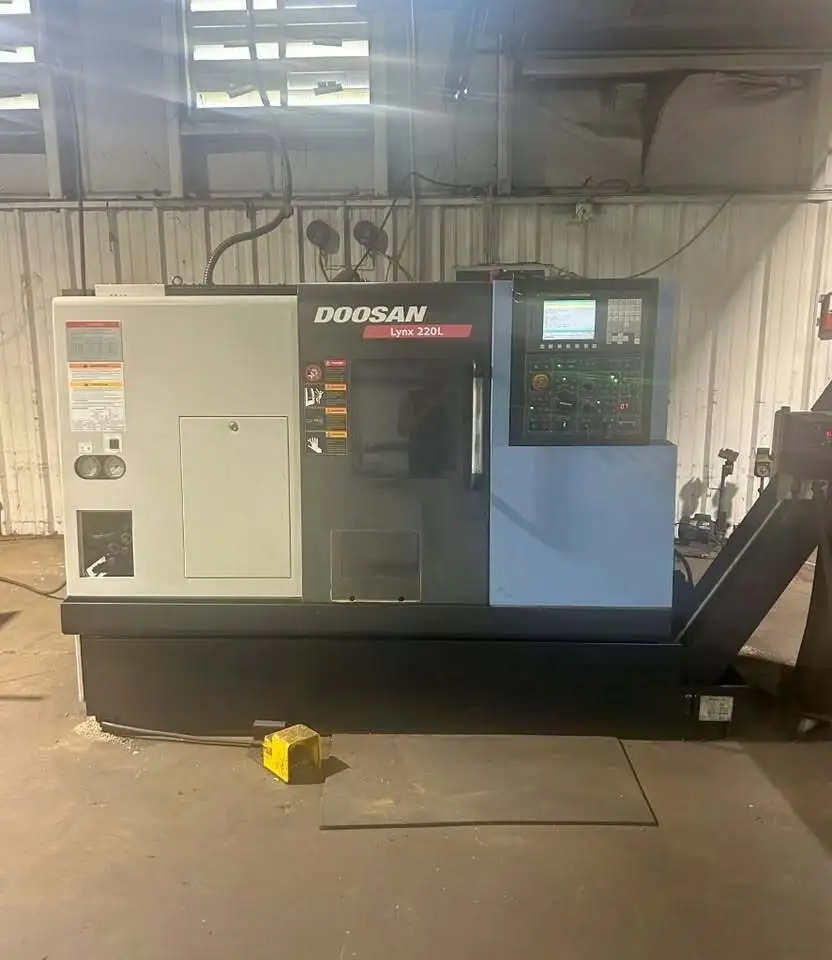

DOOSAN-FANUC i SERIES CONTROL
LONG BED (21” CUTTING LENGTH)
8”, 3-JAW HYDRAULIC CHUCK
2.6” BAR CAPACITY
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
** AS OF JULY 2026, CUTTING TIME – 2,596 HOURS
** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
This equipment is currently unavailable. Similar equipment available now is shown below.
