Unavailable

2020 HAAS ST-45L

CNC Lathes
Manufacturer:
HAAS
Model:
ST-45L
Year:
2020
Stock #:
X2X4183
CNC Lathe in used condition, equipped with HAAS NextGen control and advanced features like live milling, remote monitoring, and high-pressure coolant. Offers large capacity with 80" cutting length and 6.5" bar capacity. Cutting time: 347 hours.

SWING OVER BED 876.3 mm
MAX CUTTING DIAMETER 647.7 mm
MAX CUTTING LENGTH 2,032 mm
X-AXIS TRAVEL 431.8 mm
Z-AXIS TRAVEL 2,032 mm
CHUCK SIZE 457.2 mm
BAR CAPACITY 165.1 mm
SPINDLE BORE 177.8 mm
SPINDLE NOSE A2-11
SPINDLE MOTOR 41 kW
SPINDLE SPEED 1,400 RPM
TURRET CAPACITY 12
TURRET TYPE HYBRID BOT/VDI
LIVE MILLING Yes
LIVE MILLING SPEED 60,000 RPM

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

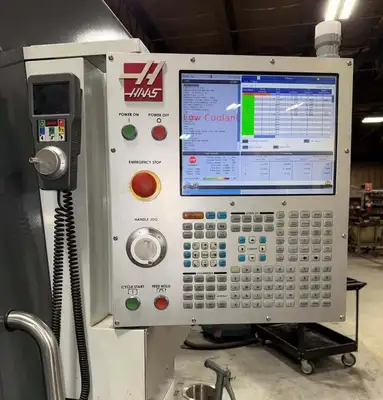

HAAS NEXTGEN CONTROL
BIG BORE (6.5” BAR CAPACITY)
LONG BED (80” CUTTING LENGTH)
LIVE MILLING (6,000 RPM UPGRADE)
EXTRA-PERFORMANCE OPTION (55 HP)
18”, 3-JAW LMC HYDRAULIC CHUCK (NOT INSTALLED)

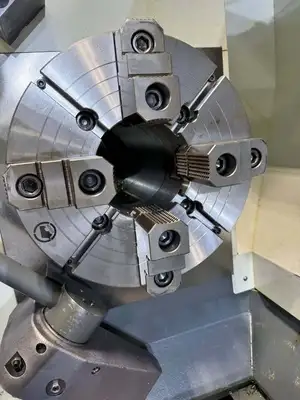

16", 4-JAW MANUAL CHUCK (CURRENTLY INSTALLED
RIP-116 MANUAL STEADY REST (1” – 16”)
STEADY REST PROVISION
EXTENDED TOOL POCKET
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
HIGH-PRESSURE COOLANT (1,000 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
REMOTE JOG HANDLE (TOUCH SCREEN)
HIGH-INTENSITY LIGHTING
CHIP TRAY FILTER KIT
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
HAASCONNECT: REMOTE MONITORING
HAASDROP
WIFI CONNECTIVITY
(1) RADIAL LIVE TOOL HOLDER
(1) AXIAL LIVE TOOL HOLDER
AN ASSORTMENT OF STATIC HOLDERS
** AS OF JULY 2026, CUTTING TIME – 347 HOURS
** MACHINE CUT PRIMARILY STEEL
